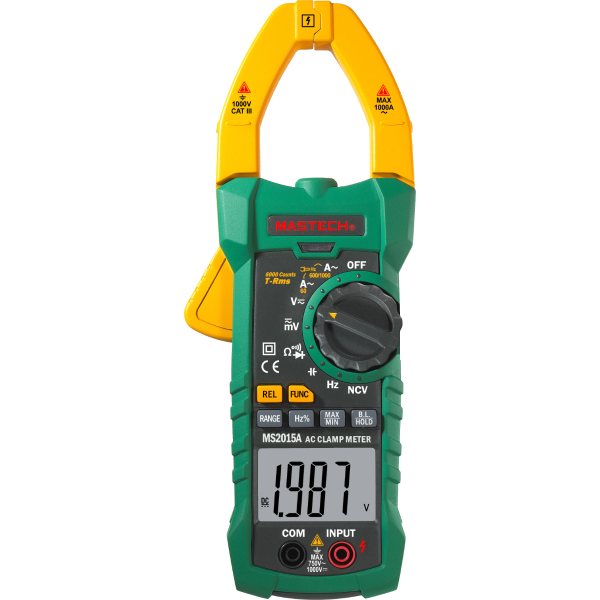

MASTECH MS2015A AC Current Digital Clamp Meters

MASTECH MS2015A Digital Clamp Meter: Versatile and Reliable Measurement Tool

The MASTECH MS2015A is a versatile digital clamp meter designed for professionals who require reliable and comprehensive measurement capabilities. It excels in handling AC/DC voltage, current, resistance, capacitance, and more, making it an essential tool for electricians, engineers, and technicians.

Key Features:

• Multifunctional Measurement: Supports AC/DC voltage, AC current, resistance, capacitance, frequency, and duty cycle measurements.
• Auto and Manual Ranging: Offers flexibility with both automatic and manual ranging options.
• Max Jaw Opening: Ф40mm/1.6″.
• Max Display: 6000 counts for clear and detailed readings.
• True RMS: Ensures accurate readings for both linear and non-linear loads.
• Non-Contact Voltage (NCV) Detection: Detects live wires and voltage presence without direct contact, enhancing user safety.
• Data Hold: Freezes the displayed measurement for easier recording and analysis.
• Max/Min: Maximum and minimum values can be held on the screen.
• Backlight and Working Light: Ensures visibility in low-light conditions.
• Safety Certified: CAT III 1000V ratings for secure operation.
• Additional Features: Includes diode testing and continuity buzzer.

Specifications:

• DC Voltage: 60mV to 1000V
• AC Voltage: 60mV to 750V
• DC Current: 60A to 1000A
• Resistance: 600Ω to 60MΩ
• Capacitance: 10nF to 100mF
• Frequency: 10Hz to 10MHz
• Duty Cycle: 0.1% to 99.9%

Benefits:

• Versatility: Equipped with essential features for a wide range of electrical measurements.
• Safety: Enhanced user protection with NCV detection and CAT IV safety rating.
• Ease of Use: User-friendly interface with auto-ranging and a backlit display.

Why Choose MASTECH MS2015A?

The MASTECH MS2015A offers a blend of functionality, safety, and convenience, making it a reliable choice for professionals. With its wide range of features, including True RMS and NCV detection, this clamp meter ensures accurate and safe measurements in various challenging environments.
