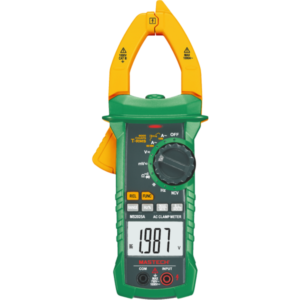

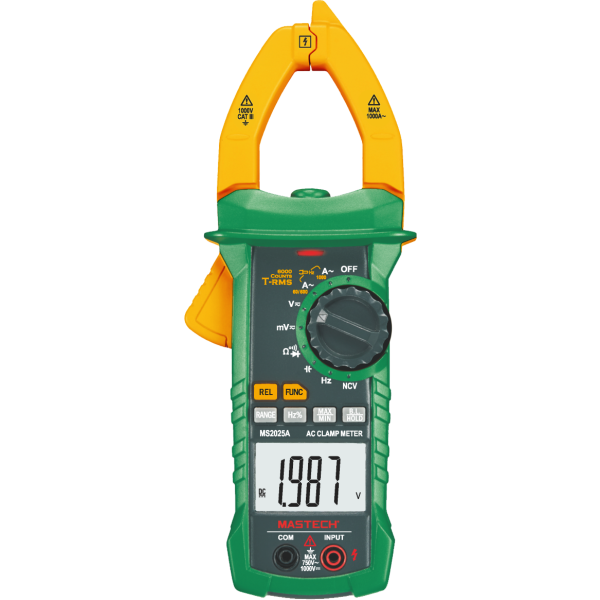

MASTECH MS2025A AC Current Digital Clamp Meters

MASTECH MS2025A Digital AC Clamp Meter: Reliable and Versatile Tool

The MASTECH MS2025A is a versatile digital AC clamp meter designed for accurate measurement in various electrical tasks. With its wide range of features and robust design, it’s ideal for both professional electricians and DIY enthusiasts.

Key Features:

• Multifunctional Measurement: AC current, DC/AC voltage, resistance, capacitance, frequency, and duty cycle.
• Max Jaw Opening: Ф40mm/1.6″.
• Max Display: 6000 counts for readings.
• Auto and Manual Ranging: Offers flexibility in measurement.
• True RMS: Ensures accurate readings for both linear and non-linear loads.
• Non-Contact Voltage (NCV) Detection: Safely detects live wires without physical contact.
• Data Hold: Allows you to freeze the measurement for easy recording.
• Relative Measurement: Eliminate low resistance or impedance on the test leads during measurements.
• Max/Min: Maximum and minimum values can be held on the screen.
• Backlight: Illuminates the display for clear readings in dim environments.
• Work Light: Provides additional lighting for working in dark spaces.
• Safety Certified: CAT III 1000V / CAT IV 600V ratings for secure operation.
• Additional Features: Includes continuity buzzer, diode test, auto power off, and low battery display.

Specifications:

• DC Voltage: 60mV to 1000V
• AC Voltage: 60mV to 750V
• AC Current: 60A to 1000A
• Resistance: 600Ω to 60MΩ
• Capacitance: 10nF to 100mF
• Frequency: 100Hz to 10MHz
• Duty Cycle: 0.1% to 99.9%

Benefits:

• Versatility: Handles a wide range of electrical measurements, making it suitable for various tasks.
• Safety: Equipped with NCV detection and high CAT ratings to ensure user safety.
• Ease of Use: Features like auto-ranging, data hold, and a backlit display make it user-friendly.
• Portability: Compact design with an included carry bag for easy transportation.

Why Choose MASTECH MS2025A?

The MASTECH MS2025A is an essential tool for anyone needing reliable and versatile electrical measurements. Its comprehensive feature set, coupled with safety certifications, makes it an excellent choice for professionals and hobbyists alike.
