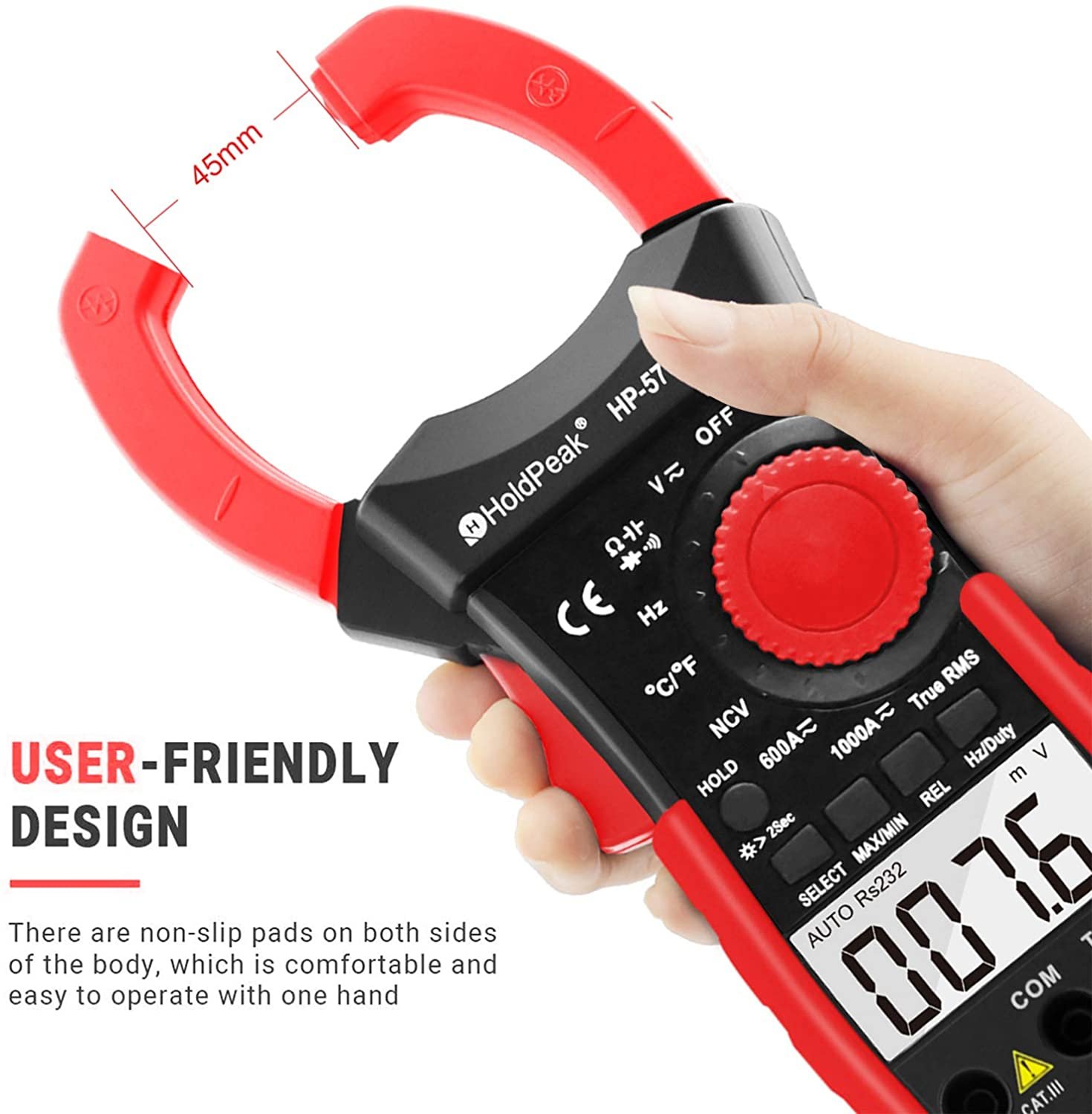

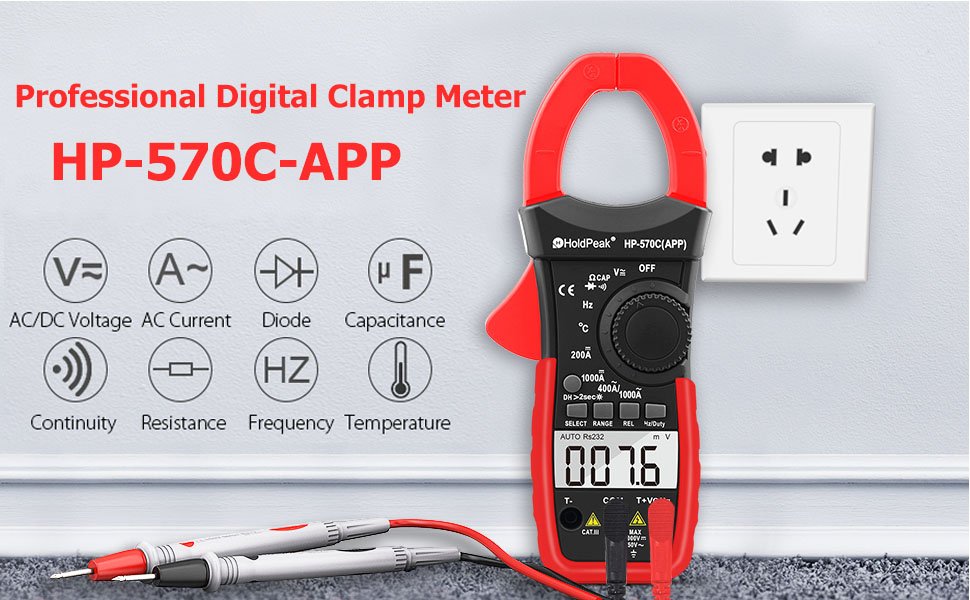

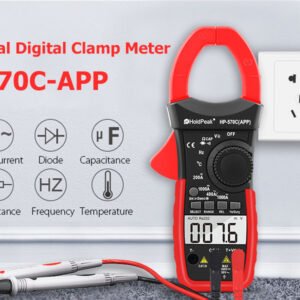

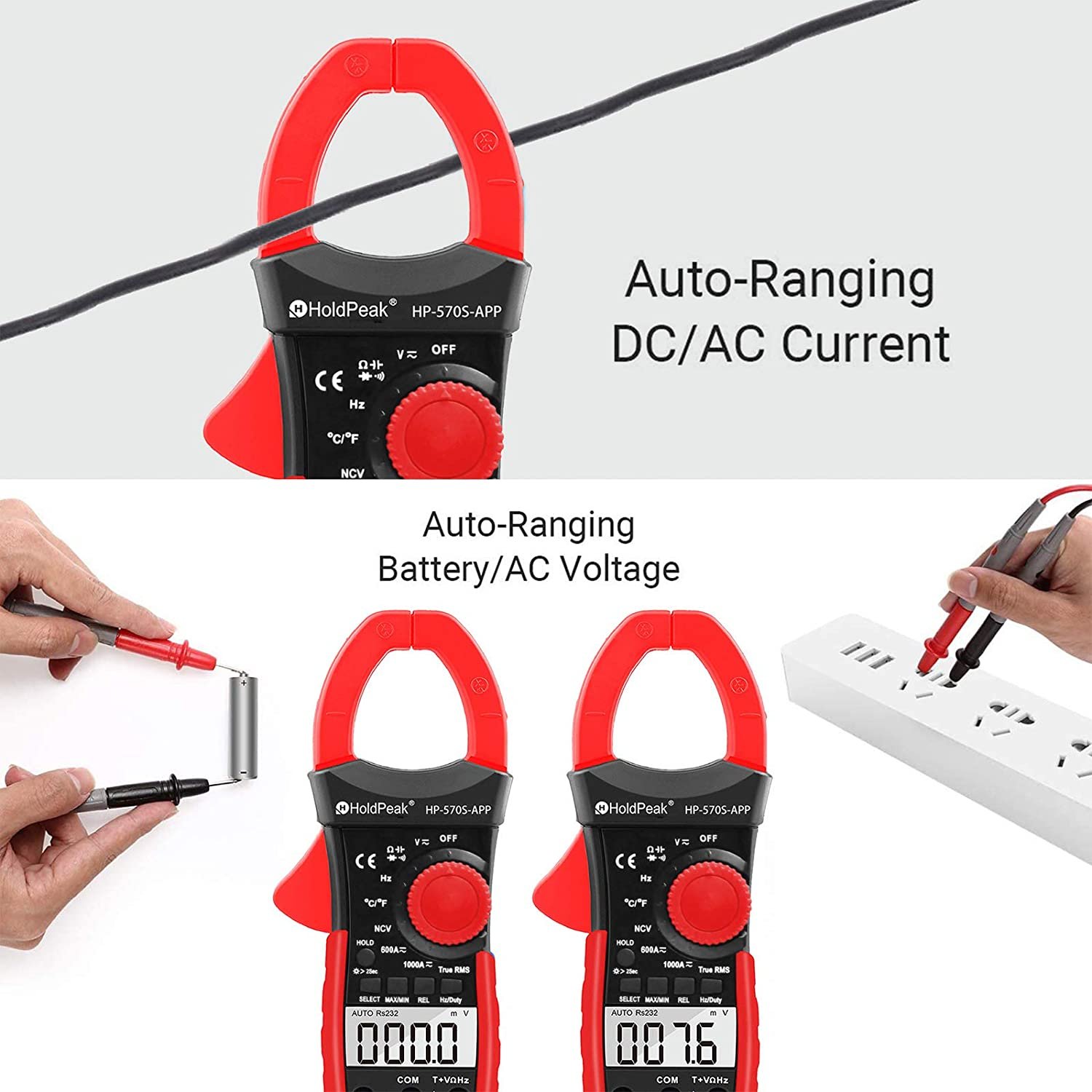

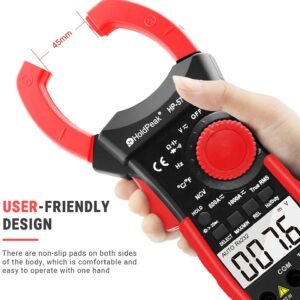

- ????【Wide Range Clamp Meter】4000 counts display, the clamp meter can measure DC/AC voltage;AC/DC current,Resistance,Capacitance,Temperature,Frequency,Diode Test. The clamp meter has manual/automatic ranging which can adjust the operation method according to your usage habits.The jaw size up to 1.77in/45mm to measure a cable which is thick enough

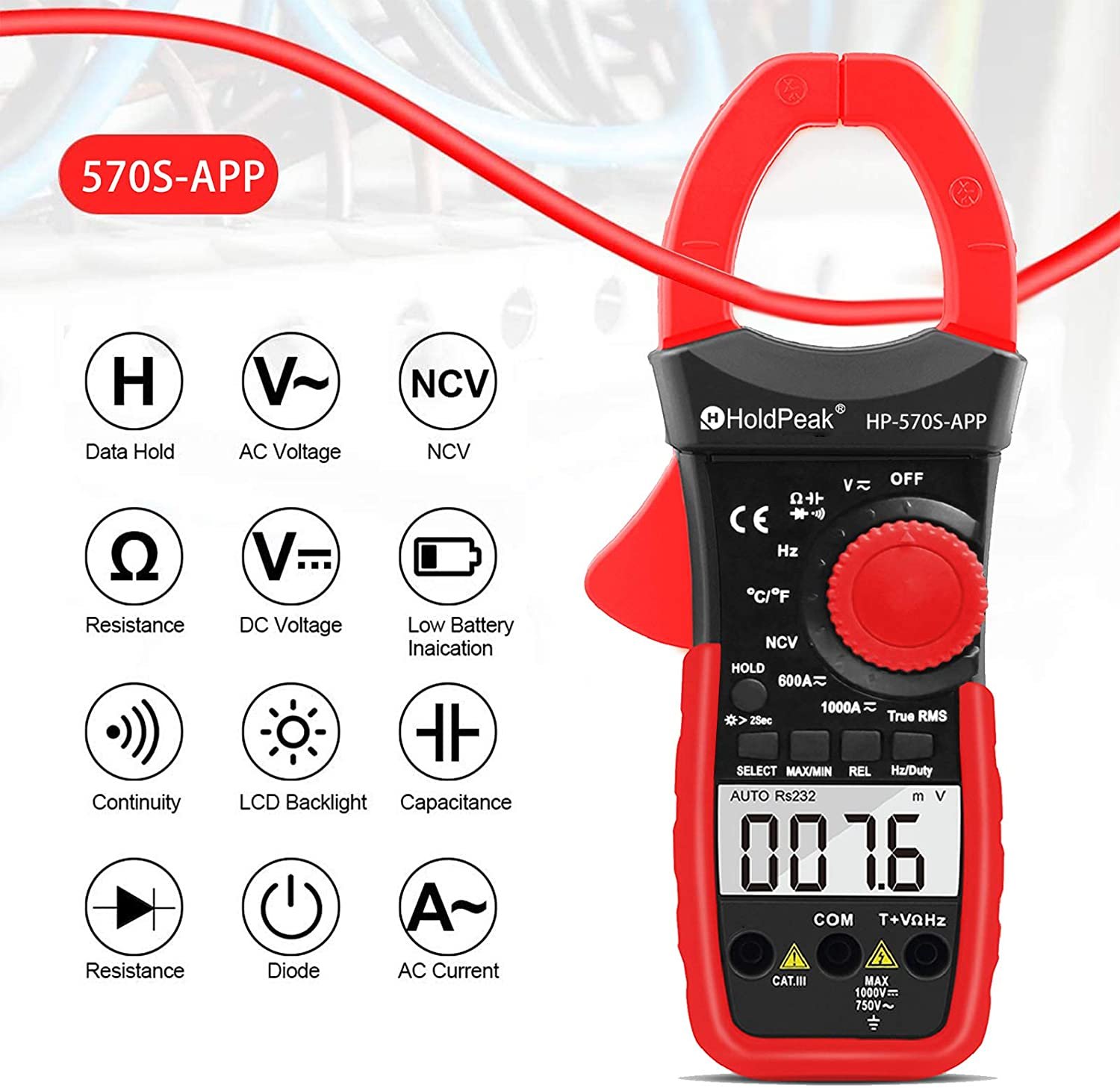

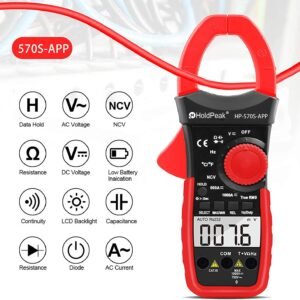

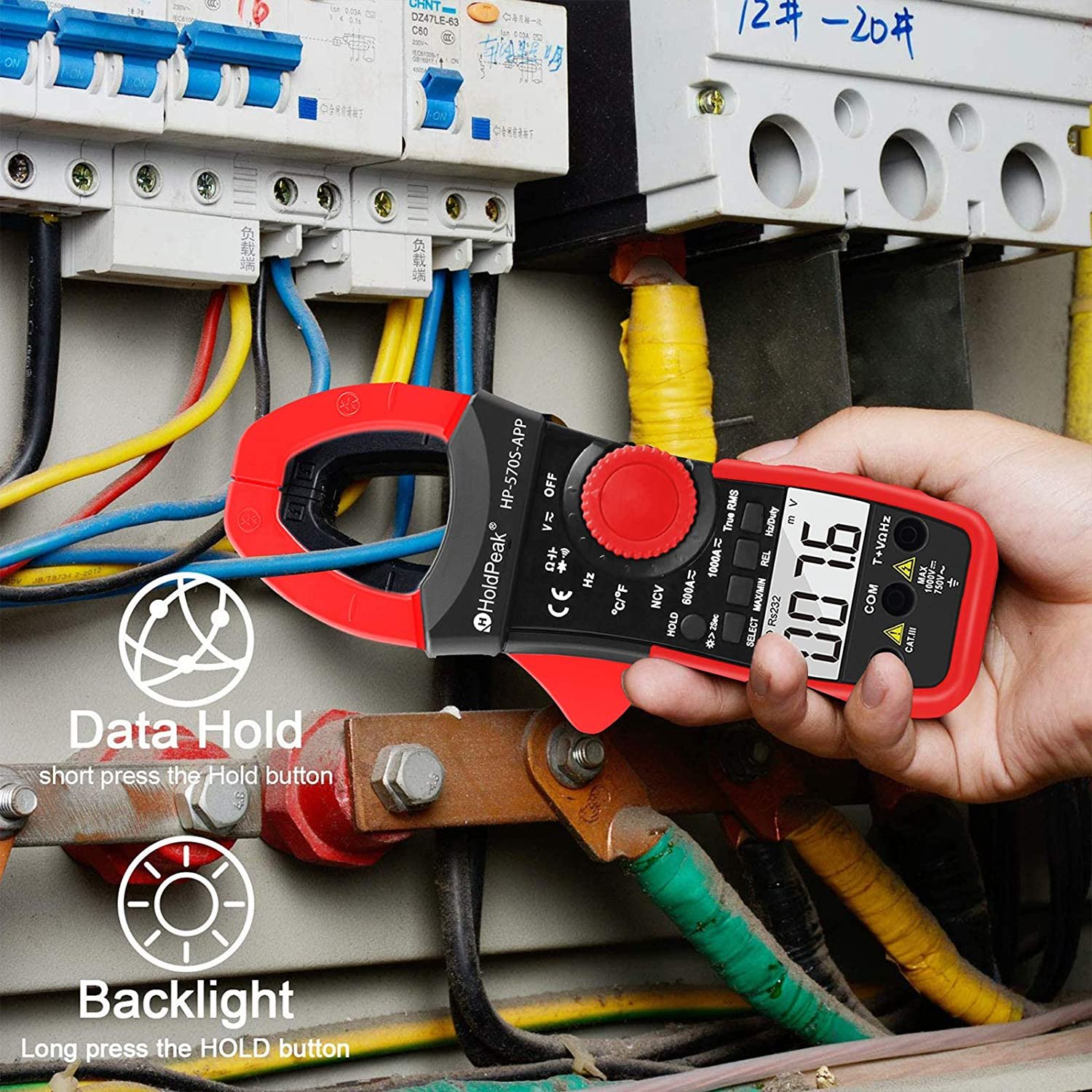

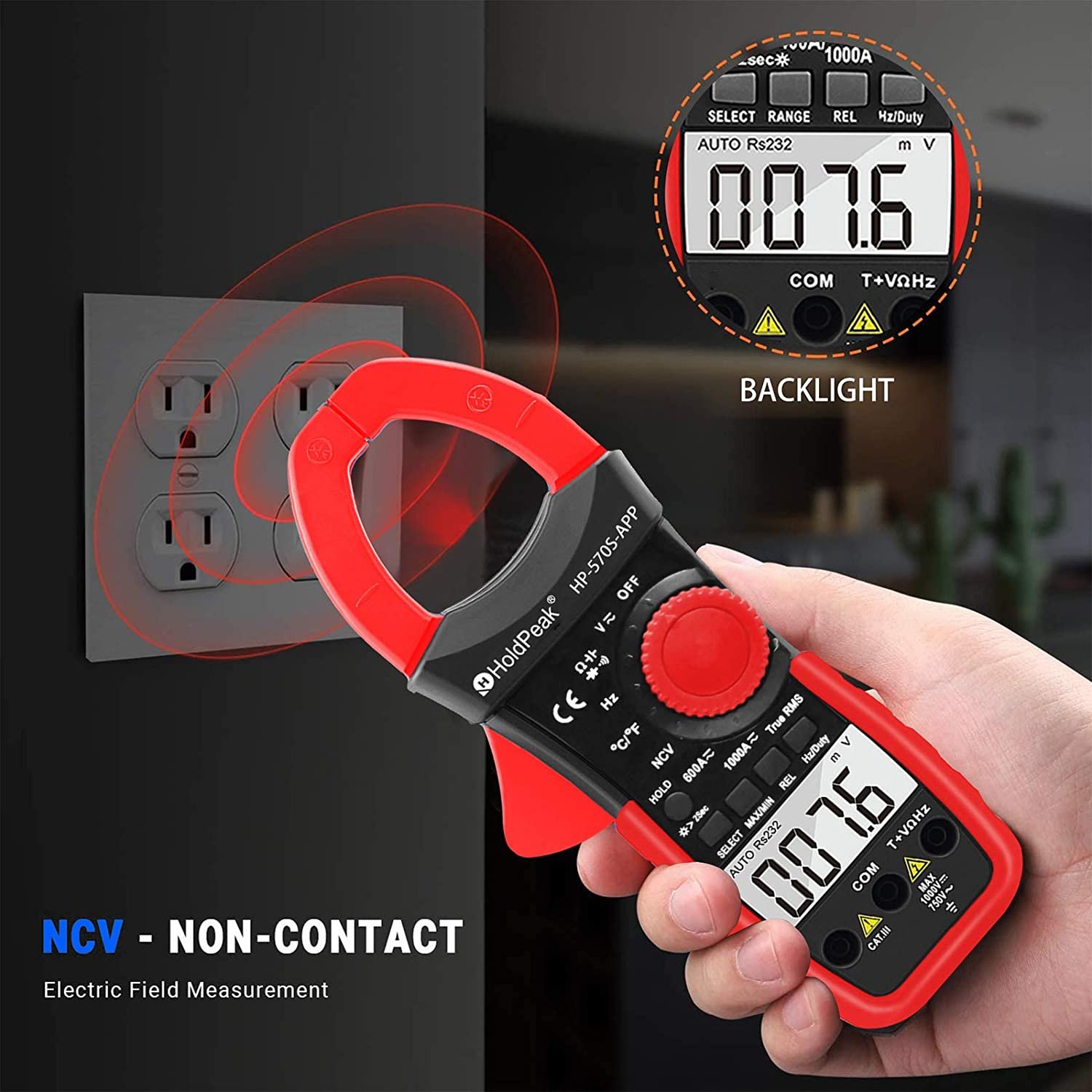

- ????【Multi-Function Multimeter】With Data hold, LCD Backlight, Relative value,Continuity buzzer,Connect to Phone by APP. Through the Backlight function, you can measure in the darkness and read the data clearly by the large LCD screen.

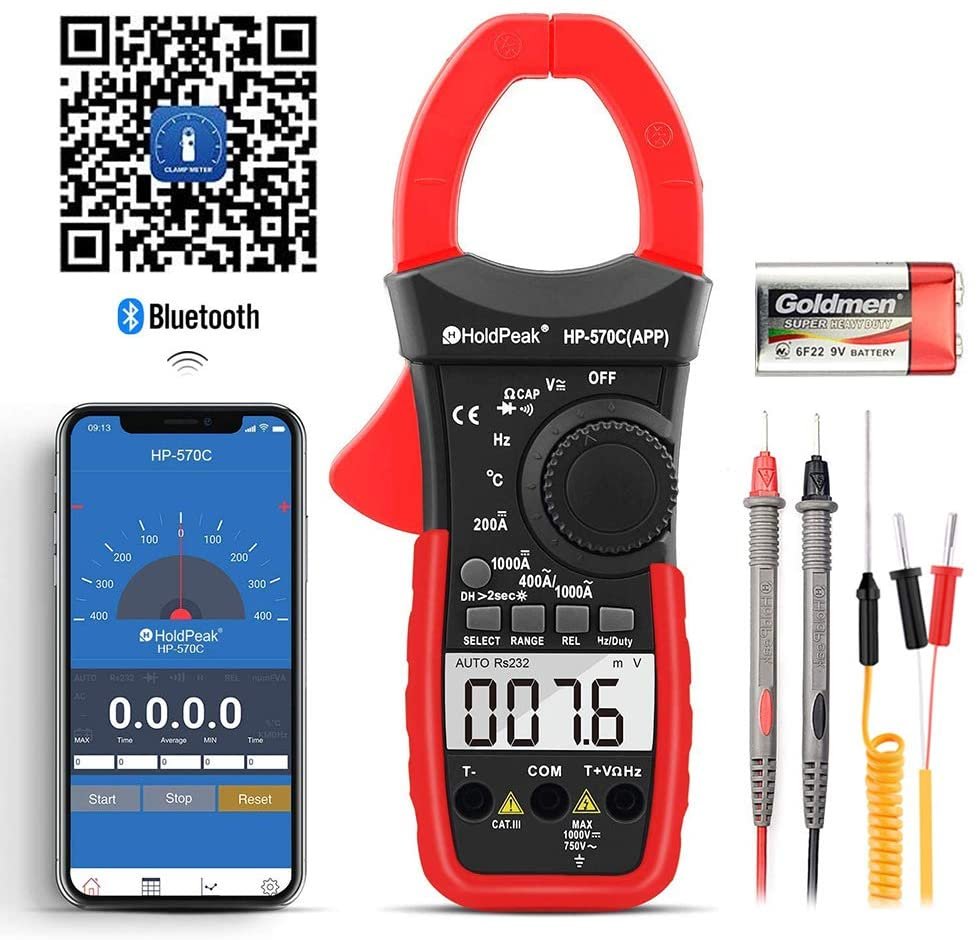

- ????【Auto Connect To Your Phone Via Bluetooth】HP-570C-APP clamp multimeter come with APP Supported, you can connect to your smart phone via Bluetooth to monitor clamp meter measurement in real time. With this APP-Multimeter, you can transfer the data and analysis it in real time on your phone. The mobile APP can be installed on iPhone 4S iOS or Android 4.30 or higher.
- ????【Safety & Over Load Protection】 HP-570C-APP Clamp Meter is up to the standards of IEC1010 Double Insulation, Pollution Degree 2, Over voltage Category Ⅲ and overload protection. It will show “OL” on the LCD if over range.
- ????【What You Get?】 Package includes 1*Clamp Meter,2* Test Lead,1* Temperature Probe, 1* Carrying Case and 1* Instruction Manual. HOLDPEAK coem with 2 years warranty and lifetime technical support.If there is any product issues, Please feel free to contact us! We will solve the problems quickly for you!Note:please press the REL key to clear the data before measuring
Auto Connect To Your Phone Via Bluetooth
With this APP-Multimeter, you can transfer the data and analysis it in real time on your phone. The mobile app can be installed on iPhone 4S iOS or Android 4.30 or higher .After connecting to APP, you can collect relevant data on the phone, record data, and display data more clearly on the phone’s APP.
Range Selection: Auto Ranging Max Display: 4000 Duty cycle:0.1%~99.9% Capacitance:51.2nF~100uF Frequency:5.12Hz~5.12MHz(0.1%+5dgt) Temperature:-20℃~1000℃(-4℉~1832℉)(3%+2dgt) DC Voltage: 400mV/4V/40V/400V(0.5%+2dgt) 1000V(0.8%+2dgt) AC Voltage: 4V/40V/400V(3.0%+10dgt) 750V(1.2%+3dgt) DC Current: 200A(3.0%+10dgt) 1000A (0~800：±3.5%+10dgt; 800~1000：±6.5%+10dgt) AC Current: 400A(3.0%+10dgt) 1000A(0~800：±3.5%+10dgt; 800~1000：±6.5%+10dgt) Resistance: 400Ω(1.0%+3dgt) 4kΩ/40kΩ /400kΩ/4MΩ(1.0%+2dgt) 40MΩ(1.5%+3dgt)
What’s in Package?
1 x Digital Clamp Multimeter
2 x Test Leads
1 x Temperature probe
1 x Carrying bag
1 x Screwdriver
1 x User Manual
1 x 9V(6F22) Battery
