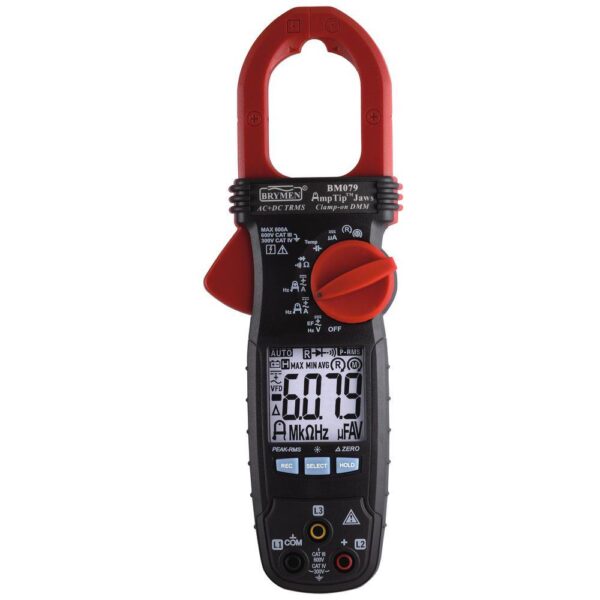

Brymen BM 079 new series of clamp meter with advanced performance
BM 070 new series of clamp meter with advanced performance is designed to measure currents using innovative AmpTip™ jaws for slim conductors in CATIII 600V areas. Ergonomic All-in-one AC/DC 600A, 3-terminal phase rotation, True RMS (AC+DC). The ergonomic design of Brymen clamp meters are ideal for measuring current in even the most confined of spaces.
Estimated delivery between March 27 and March 29.
- Description
- TrueRMS measurements and optimized ergonomics make the BM 079
- Store Policies
- Inquiries
Description
Manufacturer : Brymen
True RMS : AC + DC
Sampling : 5x/s
Accuracy (DCV): 1,0% + 5d
Max conductor size : 30mm
Current measurement: AC/DC current
Function & Features : Clamp meter
Other measurements (max range):
Capacitance, Current µ DCA (via test leads), Frequency, Resistance, Temperature
Special functions
AVG, Crest 80ms, HOLD, MAX-MIN, REL, VFD
Test functions
Continuity test, Diode test, EF voltage detection, Phase rotation for MAINS and motors
Surge protection
6kV
Measurement category (safety)
CAT IV
Category Voltage
300V
Standard accessories
Alligator clip set, Battery installed, BKP60 K-type thermocouple, Gold-plated test leads (pair), Soft carrying pouch, User’s manual
Dimensions: depth
37mm
Dimensions: width
76mm
Dimensions: height
223mm
Weight:
234g
TrueRMS measurements and optimized ergonomics make the BM 070 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians. BM072, BM076, BM079 are designed to verify the presence of load current, AC/DC voltage and continuity of circuits, switches, fuses and contacts. These small and rugged clamp meters are ideally suited for current measurements up to 600 A in tight cable compartments as well as small conductors using AmpTip™ jaws.
Unique features:
VFD V & Hz – Variable Frequency Drives – measures fundamental voltage and frequency of most variable frequency drives
Phase Rotation – Dual sensitivity modes for both motors and supply systems (BM079 & BM076)
In-Rush Peak RMS – Captures In-rush Peak RMS reading at duration as short as 80ms
EF-detection – both non-voltage (NCV) and single probe voltage detection for indentifying live lines
DCμA – for HVAC flame sensors, testing via probes (BM079 & BM076)
REC – MAX, MIN, MAX-MIN & AVG
Type K – temperature measurement (BM079 & BM076)
