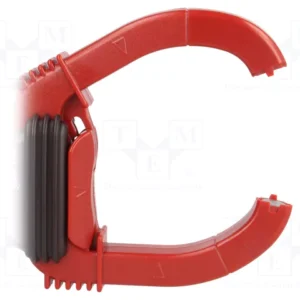

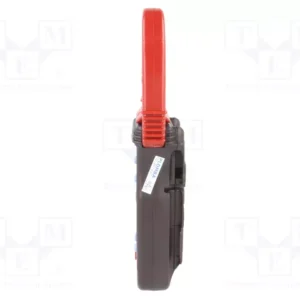

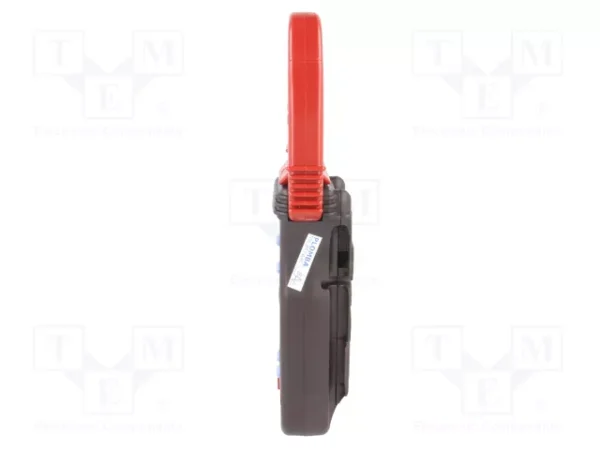

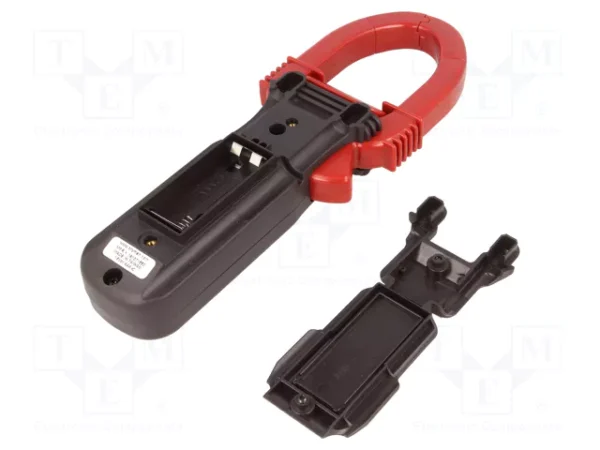

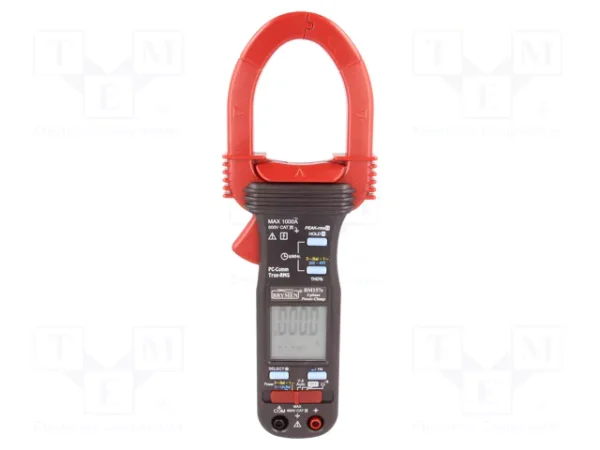

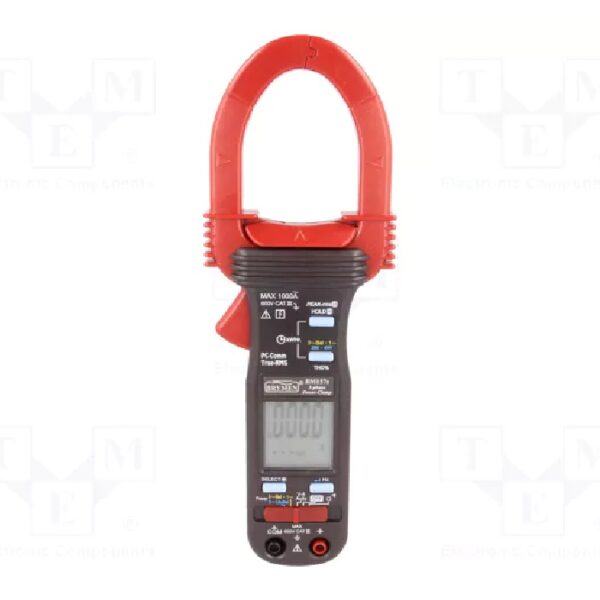

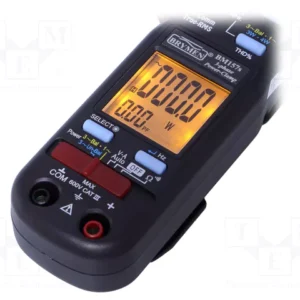

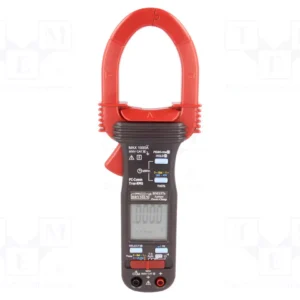

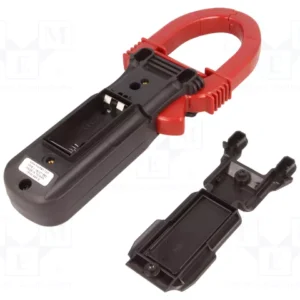

Brymen BM157S BRYMEN – Meter power
Original price was: ₹30,208.00.₹29,087.00Current price is: ₹29,087.00.
Estimated delivery between March 27 and March 29.
- Description
- Additinal Information
- Attachment
- Store Policies
- Inquiries
Description
Manufacturer
BRYMEN
Type of meter
power
Kind of meter
pincers type
Measurement
AC current, active power, AC voltage, apparent power, DC voltage, energy, frequency, power factor, reactive power, resistance

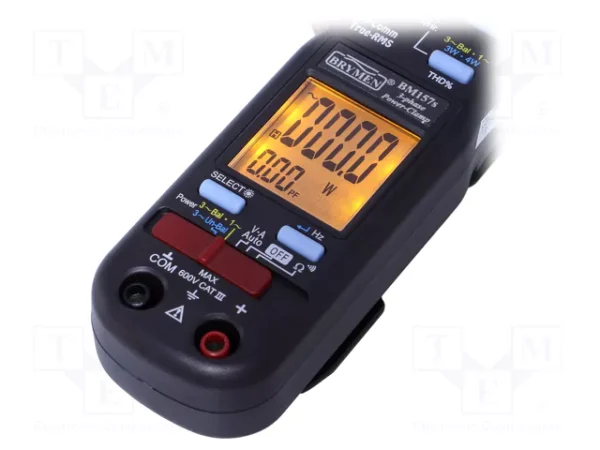

Kind of display used
LCD
True effective value measurement
True RMS AC
AC current measuring range
10mA…40A/400A/1kA
AC current measuring accuracy
±(1% + 5 digit)
AC voltage measuring range
100mV…600V
AC voltage measuring accuracy
±(0.5% + 5 digit)
DC voltage measuring range
100mV…600V
DC voltage measuring accuracy
±(0.5% + 5 digit)
Active power measuring accuracy
±(4.5% + 6 digit)
Reactive power measuring accuracy
±(4.5% + 6 digit)
Apparent power measuring accuracy
±(3.5% + 6 digit)
Frequency measuring range
10mHz…5Hz/500Hz
Frequency measuring accuracy
±(0.5%+4 digit)
Resistance measuring range
100mΩ…999.9Ω
Resistance measuring accuracy
±(1%+6 digit)
Harmonic content measuring accuracy
±(1% + 6 digits)
Reactive power measurement
0…600kVAR
Apparent power measurement
0…600kVA
Harmonic content measurement
0…99,99%
Conform to the norm
CAT III 600V
EN 61010
Dimensions
224x78x40mm
Weight with battery
224g
Max. diameter of measured cable
45mm
Illumination
yes
Bandwidth for AC voltage measurements
40…500Hz
Continuity test
acoustic indication, 50Ω…250Ω
Power factor measurement
0.01…0.99
Sampling
1x/s (Hz), 2x/s
Pollution degree
2
Bandwidth for AC current measurements
40…500Hz
BRAND: Brymen
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
