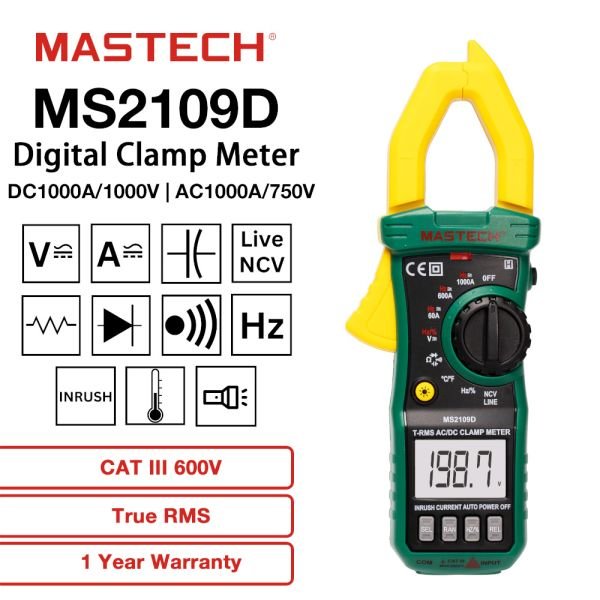

MASTECH AC/DC Current Digital Clamp Meters MS2109D
Original price was: ₹11,798.82.₹10,980.21Current price is: ₹10,980.21.
Estimated delivery between Jun 30 to Jul 15
- Description
- Overview
- Additional Information
- Store Policies
- Inquiries
Description
● AC/DC Current: 60A, 600A, and 1000A.
● DC Voltage (DCV): 600mV-1000V.
● AC Voltage (ACV): 600mV-750V.
● Resistance: 600Ω to 60MΩ.
● Capacitance: 10nF-100mF.
● Frequency: 10Hz-10MHz.
● Temperature: -20°C to 1000°C and -0°F to 1800°F.
● Duty Cycle / Inrush Current.
● Max Jaw Opening: 23mm.
● Diode / Continuity.
● Non contact voltage (NCV) Detection / Live Wire (LINE) Recognition.
● Relative Measurement.
● Max Display: 6000.
● True RMS.
● CAT III 600V.
● Worklight / Data hold / Backlight / Unit Display.

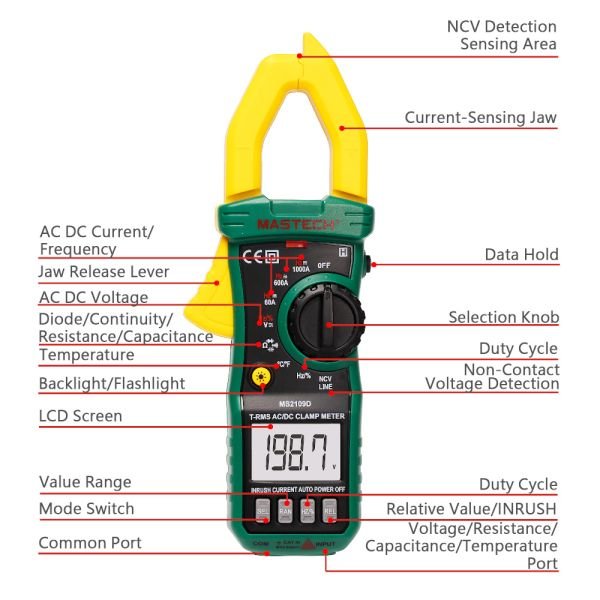

MASTECH MS2109D Digital Clamp Meter: Multifunctional Electrical Test Tool
The MASTECH MS2109D Digital Clamp Meter is a reliable and versatile tool designed for measurement of AC/DC current and other electrical parameters. Ideal for both professionals and hobbyists, this clamp meter offers a comprehensive range of features to meet various testing needs.
Key Features:
- AC/DC Current Measurement: Measures AC current up to 1000A and DC current up to 1000A.
- Multifunctional Measurement: The MS2109D measures AC/DC voltage, resistance, capacitance, and frequency, making it a versatile tool for a wide range of applications.
- Temperature Measurement: Measures temperatures from -20°C to 1000°C(-0°F to 1800°F).

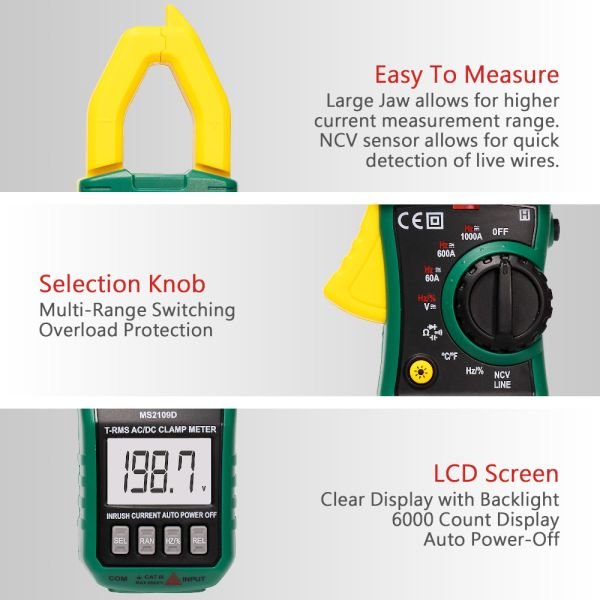

- Max Jaw Opening: 23mm.
- Max Display: 6000 counts for readings.
- True RMS: Provides accurate readings for both linear and non-linear loads.
- Non-Contact Voltage (NCV) Detection / Live Wire Recognition: Safely detect live wires and voltage presence without physical contact, enhancing user safety.
- LCD Backlit Display: The clear, backlit display allows for easy reading of measurements, even in dimly lit environments.
- Data Hold Function: Allows users to freeze the displayed measurement, making it easier to record and analyze results.
- Safety and Durability: Equipped with CAT III 600V safety ratings, the MS2109D ensures user protection and durability in demanding environments.
- Additional Features: Includes diode test, continuity buzzer, duty cycle, inrush current, LED flashlight, auto power off, and relative mode capabilities.
Specifications:
- AC/DC Current (ACA/DCA): Measures up to 1000A.
- Resistance Measurement: Ranges from 600Ω to 60MΩ.
- DC Voltage (DCV): Measures from 600mV to 1000V.
- AC Voltage (ACV): Covers a range from 600mV to 750V.
- Frequency: Measures from 10Hz to 10MHz.
- Capacitance Measurement: Ranges from 10nF to 10mF.
- Temperature Measurement: Supports measurements from -20°C to 1000°C and 0°F to 1800°F.
- Max Display: 6000 counts.
- Max Jaw Opening: 23mm.
- Power Supply: 1.5V AAA batteries (x3).
Benefits:
- Versatility: The MS2109D is equipped to handle a wide range of electrical testing tasks, making it suitable for various applications.
- Enhanced Safety: Features such as non-contact voltage detection and CAT III 600V rating ensure safe operation in different testing environments.
- User-Friendly Design: With its true RMS capability, auto power-off function, and ergonomic design, this clamp meter is easy to use, even for beginners.
- Durability: Built to last in demanding environments, the MS2109D ensures long-lasting performance and reliability.
BRAND: MASTECH
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
