Description
AC & DC Voltage: Up to 600V
● AC & DC Current: uA, mA, 10A
● Resistance: Up to 60MΩ.
● Temperature (Type K): -20°C to 1000°C and -4°F to 1832°F
● Frequency: Up to 10MHz
● Capacitance: Up to 100mF
● Non-Contact Voltage (NCV) Detection / Live Wire (Live) Recognition
● hFE Test
● Duty Cycle
● Diode and Continuity Test.
● True RMS
● CAT III 600V.
● Work light.
● Data Hold.
● Backlight.

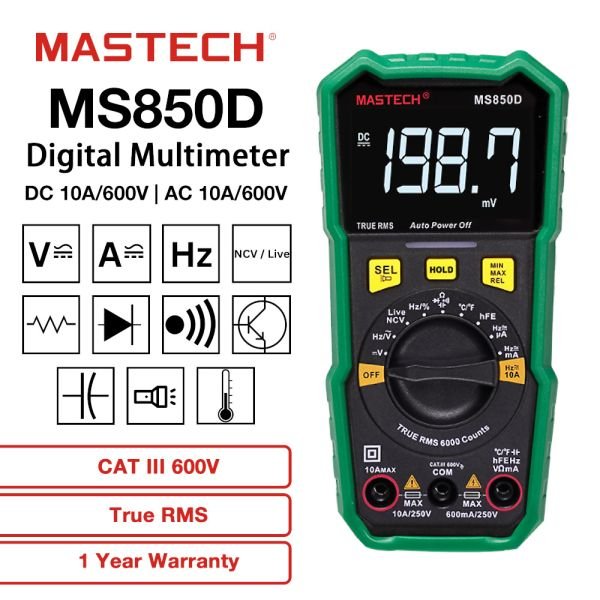

MASTECH MS850D Digital Multimeter: Multifunctional Electrical Test Tool
The MASTECH MS850D Auto Ranging Digital Multimeter is a reliable and versatile tool designed for measurement of electrical parameters. Ideal for both professionals and hobbyists, this multimeter offers a comprehensive range of features to meet various testing needs.
Key Features:

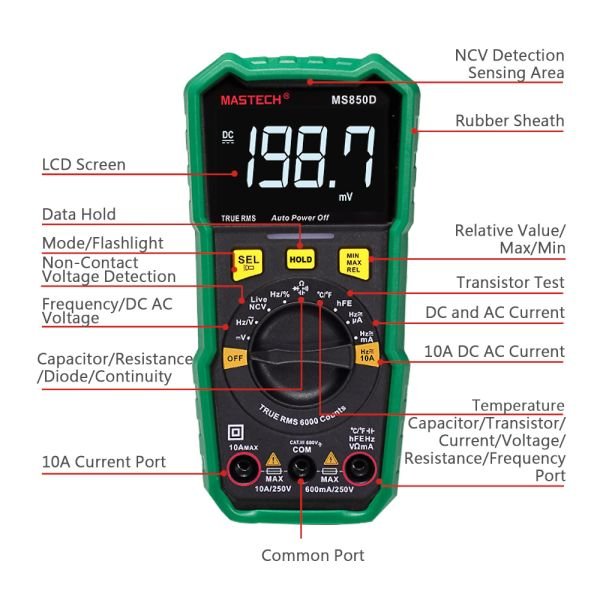

- Multifunctional Measurement: The MS850D measures AC/DC voltage, AC/DC current, resistance, capacitance, and frequency, making it a versatile tool for a wide range of applications.
- Temperature Measurement: Measures temperatures from -20°C to 1000°C (-4°F to 1832°F).
- Auto Ranging Capability: Automatically selects the appropriate measurement range, simplifying the testing process and reducing the risk of errors.
- Max Display: 6000 counts for readings.
- Non-Contact Voltage (NCV) Detection / Live Wire Recognition: Safely detect live wires and voltage presence without physical contact, ensuring user safety.
- True RMS: Provides accurate readings for both linear and non-linear loads.

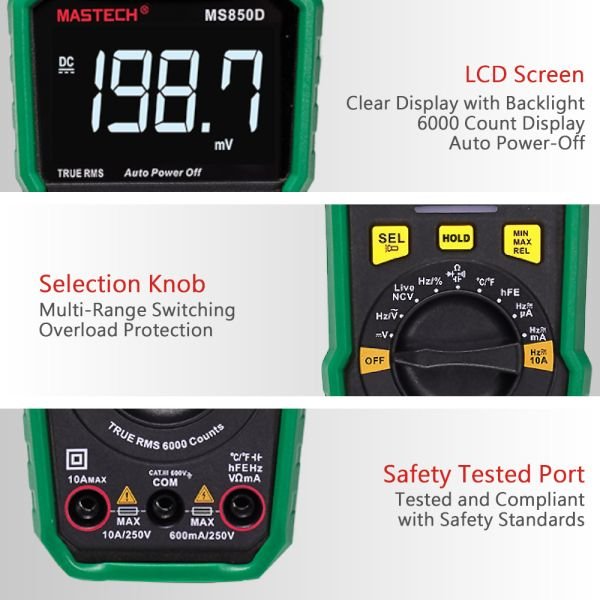

- LCD Backlit Display: The clear, backlit display allows for easy reading of measurements, even in dimly lit environments.
- Data Hold Function: Allows users to freeze the displayed measurement, making it easier to record and analyze results.
- Safety and Durability: Equipped with CAT III 600V safety ratings, the MS850D ensures user protection and durability in demanding environments.
- Additional Features: Includes diode test, continuity buzzer, MAX/MIN, auto power-off, and a built-in flashlight for convenient use in dark areas.
Specifications:
- Resistance Measurement:
- Ranges from 600Ω to 60MΩ.
- DC Voltage (DCV):
- Measures from 600mV to 600V.
- AC Voltage (ACV):
- Covers a range from 600mV to 600V.
- DC Current (DCA):
- Ranges from 600µA to 10A.
- AC Current (ACA):
- Measures from 600µA to 10A.
- Frequency:
- Covers 10Hz to 10MHz.
- Capacitance:
- Ranges from 60nF to 100mF.
- Duty Cycle:
- Measures from 0.1% to 99.9%.
- Temperature Measurement:
- Supports measurements from -20°C to 1000°C and -4°F to 1832°F.
Benefits:
- Versatility: The MS850D is equipped to handle a wide range of electrical testing tasks, making it suitable for various applications.
- Enhanced Safety: Features like non-contact voltage detection and CAT III 600V rating ensure safe operation in different testing environments.
- User-Friendly Design: With its auto ranging capability, data hold function, and ergonomic design, this multimeter is easy to use, even for beginners.
- Durability: Built to last in demanding environments, the MS850D ensures long-lasting performance and reliability
BRAND: MASTECH
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
Import Duties : Applicable
