MASTECH Manual Range Digital Multimeters MS890C+
Original price was: ₹7,078.82.₹6,720.89Current price is: ₹6,720.89.
Estimated delivery between Jun 30 to Jul 15
- Description
- Overview
- Additional Information
- Store Policies
- Inquiries
Description
● DC Voltage: 0.1mV–1000V
● AC Voltage: 0.1mV–750V (With V.F.C.)
● AC Current: 0.01mA–10A
● DC Current: 0.1uA–10A
● Resistance: 0.1Ω–60MΩ .
● Temperature (Type K): -20°C to 1000°C and 0℉ to 1832℉
● Frequency: 1Hz–10MHz
● Capacitance: 10pF–60mF
● Low Impedance
● Duty Cycle / Square Wave Output.
● Overload Protection / Diode / Continuity.
● LED / Bar graph
● Non-Contact Voltage (NCV) Detection / Live Wire (Live) Recognition.
● Max Display: 6000.
● CAT IV 600V / CAT III 1000V.
● True RMS.
● Relative / Data hold / Backlight / Flashlight / Unit Display.

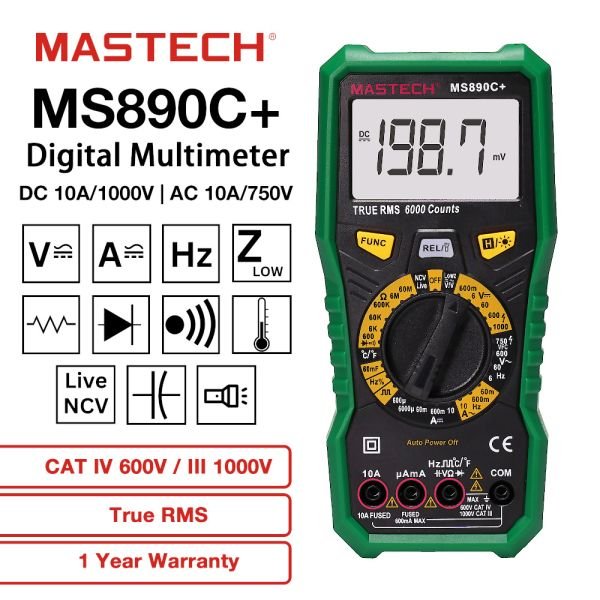

MASTECH MS890C+ Digital Multimeter: Multifunctional Electrical Test Tool
The MASTECH MS890C+ Manual Ranging Digital Multimeter is an advanced and versatile tool designed for measurement of electrical parameters. Perfect for professionals and hobbyists alike, this multimeter features a comprehensive range of functions to meet diverse testing needs.
Key Features:
- Multifunctional Measurement: The MS890C+ measures AC/DC voltage, AC/DC current, resistance, capacitance, and frequency, making it a versatile tool for a wide range of applications.

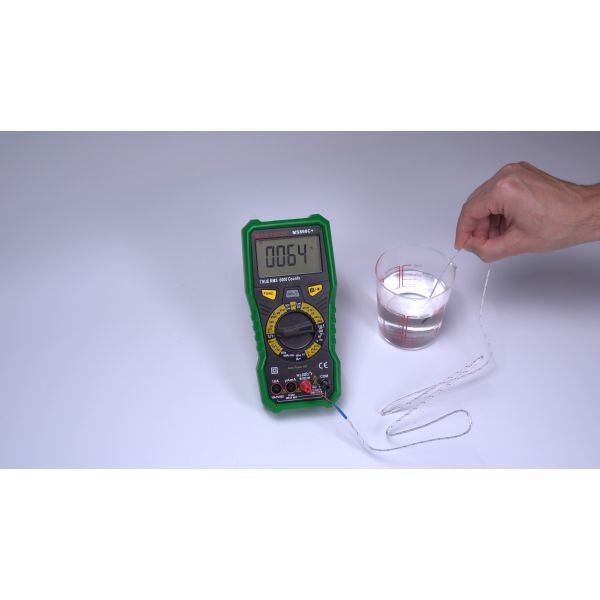

- Temperature Measurement: Measures temperatures from -20°C to 1000°C(0°F to 1800°F).
- Manual Ranging Capability: Selects the appropriate measurement range manually.
- True RMS: Provides accurate readings for both linear and non-linear loads.
- Non-Contact Voltage (NCV) Detection / Live Wire Recognition: Safely identify live wires and the presence of voltage without direct contact, ensuring user safety.
- Max Display 6000 Counts: Offers high resolution for detailed measurements.
- V-LowZ Function: Provides a low impedance mode to eliminate ghost voltages, ensuring more accurate readings.
- Overload Protection: Protects the device and user by preventing damage from excessive current.
- LED / Bar Graph / V.F.C: Visual indicators for easy interpretation of readings.
- Duty Cycle / Square Wave Output: Useful for testing pulse width modulation and other signal characteristics.

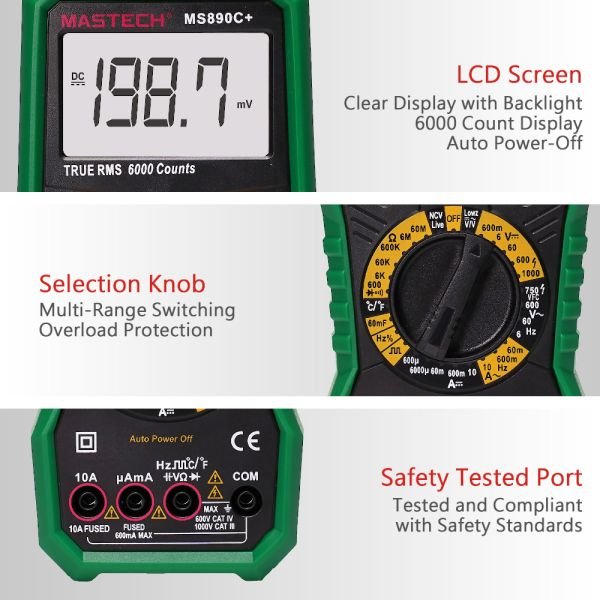

- LCD Backlit Display and Flashlight: Provides clear readings and supports operation in low-light environments.
- Data Hold Function: Allows users to freeze the displayed measurement for easier recording and analysis.
- Safety and Durability: Features CAT IV 600V and CAT III 1000V safety ratings for reliable operation in demanding environments.
- Auto Power Off: Conserves battery life by automatically turning off after a period of inactivity.
- Relative / Low Impedance: Offers additional measurement modes for various testing scenarios.
Specifications:
- Resistance Measurement: Ranges from 0.1Ω–60MΩ.
- DC Voltage (DCV): Measures from 0.1mV–1000V.
- AC Voltage (ACV): Covers a range from 0.1mV-750V.
- DC Current (DCA): Ranges from 0.1uA–10A.
- AC Current (ACA): Measures from 0.01mA–10A.
- Frequency Measurement: From 1Hz-10MHz.
- Capacitance Measurement: Ranges from 10pF–60mF.
- Temperature Measurement: Supports measurements from -20°C to 1000°C and 0°F to 1800°F.
- Battery: 1.5V AA*2 batteries.
Benefits:
- Versatility: Equipped to handle a wide range of electrical testing tasks, suitable for various applications.
- Enhanced Safety: Features like non-contact voltage detection and CAT IV 600V/CAT III 1000V ratings ensure safe operation in different testing environments.
- User-Friendly Design: Simple operation with a clear display and intuitive controls, making it accessible for all users.
- Durability: Built to withstand demanding environments, the MS890C+ ensures long-lasting performance and reliability.
BRAND: MASTECH
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
Import Duties : Applicable
