UNI-T Optical UT698-15KIT UT698-30KIT Power Meter & LAN Cable Tester
Estimated delivery between Jun 30 to Jul 15
- Description
- Features
- Specifications
- Additional Information
- Store Policies
- Inquiries
Description

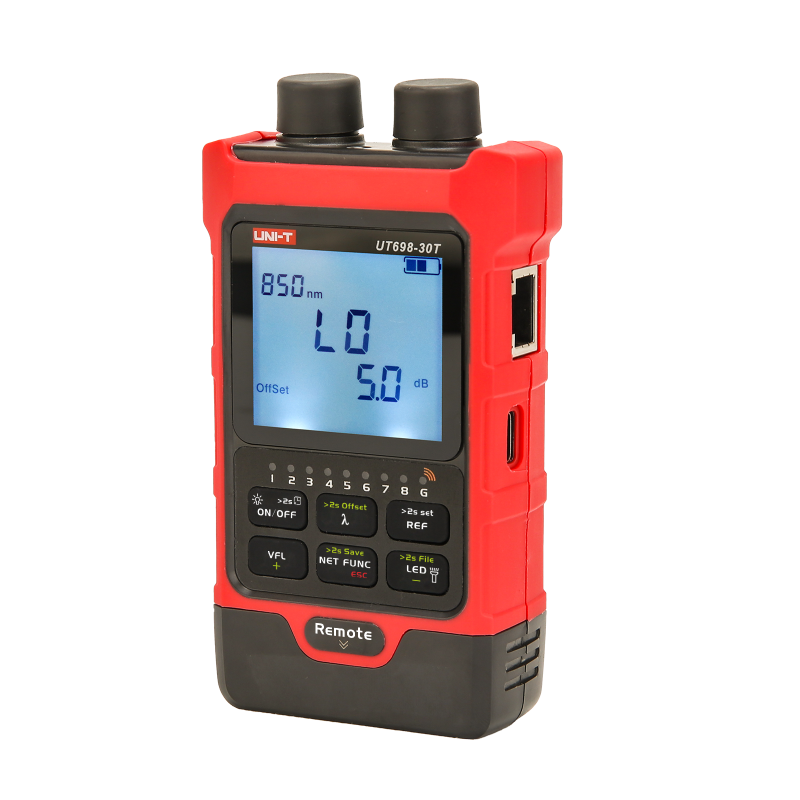

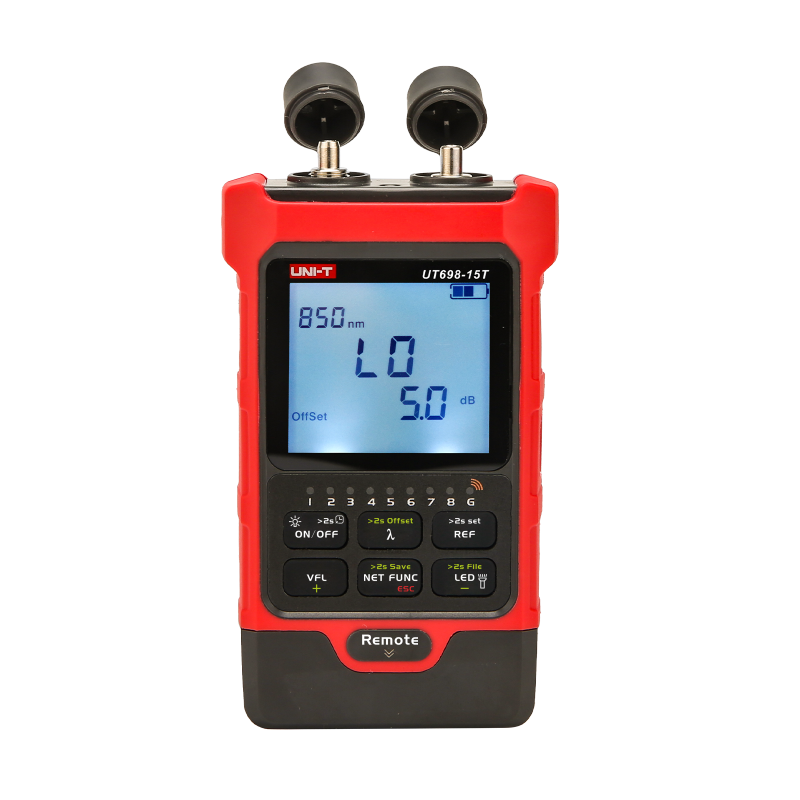

UT698 Series Optical Power Meter & LAN Cable Tester combines optical power test, red light fault locator, NCV detection, wire tracing, network cable check, RJ45 crimp test, and flashlight in one unit. Ideal for telecom, network maintenance, and security technicians, it delivers higher working efficiency for fiber and copper cable installation & repair.
- Powerful red light
- Fiber optic power measurement
- Network cable wire sequence test
- Wire tracing
- Single-end RJ45 crimp test
- NCV detection
- PC software communication
- Built-in high-power LED flashlight
- 500 data records storage
- Lithium battery USB direct charging
- Built-in offset setting (self-calibration)
Optical Power Meter Specifications and Functions
- Detector Type : InGaAs
- Wavelength Response Range : 700~1700nm
- Power Meter Interface : 2.5mm Universal Connector
- Measurement Wavelength : 850nm / 980nm / 1270nm / 1300nm / 1310nm / 1490nm / 1550nm / 1577nm / 1625nm / 1650nm
- Measurement Range : -50~+30dBm
- Accuracy : (1550nm, 1310nm, 1490nm, 1625nm) ±0.4dB; (850nm, 980nm, 1300nm, 1270nm, 1577nm, 1650nm) ±1dB
- Display Unit : dB, dBm, mW, μW, nW
- Frequency Identification : 270Hz / 330Hz / 1kHz / 2kHz
- Data Storage : 500 Sets
- Wavelength Memory : Yes
- User Self-Calibration : Yes
- Relative Value Measurement : Yes
- Screen Backlight : Yes
- Auto Power Off : Optional
- Low Battery Indicator : Battery Status
- Charging Interface : Type-C Interface
- Battery : 3.7V / 450mAh Lithium Polymer Battery
- Working Temperature : -10°C ~ 50°C
- Ambient Humidity : <90%RH
- Size : 114 × 65 × 29mm
- Weight : About 120g
Red Light Functions
- Red Light Source Interface : 2.5mm Universal Connector
- Output Power (UT698-15KIT) : 15mW
- Output Power (UT698-30KIT) : 30mW
- Red Light Wavelength : 650 ± 20nm
- Output Mode : CW / 2Hz Glint
Cable Crimping Function
- Crimping Detection : RJ45 8-Pin (>10cm)
Network Cable Sequence Function
- Applicable Network : UTP / STP Network Cables
- Network Cable Interface : RJ45 (8P8C+G)
- Test Type : Network Cable Sequence
- Test Distance : 600m
Audio Cable Tracing Function
- Cable Tracing Function : Analog & Digital Mode
- Detection Distance : 600m
LAN Cable Tester
- Power On/Off : Knob Operation
- Function Selection : 3 Silicone Buttons
- Signal Type : Analog / Digital
- Sensitivity Adjustment : Knob Control
- Test Interface : RJ45 × 1
- Auxiliary Light : LED × 1
- Cable Sequence Indicator : LED × 9
- Status Indicator : LED × 3
- Headphone Jack : Φ3.5mm × 1
- Charging Interface : Type-C Interface
- Battery : 3.7V / 450mAh Lithium Polymer Battery
- Size : 180 × 45 × 26mm
- Weight : About 100g
Non-Contact Voltage Detection Function
- NCV Detection : AC 90V ~ 1000V
- Indicator : LED Ring × 1
Flashlight Function
- Auxiliary Light : LED × 1
BRAND: UNI-T
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
Import Duties : Applicable
