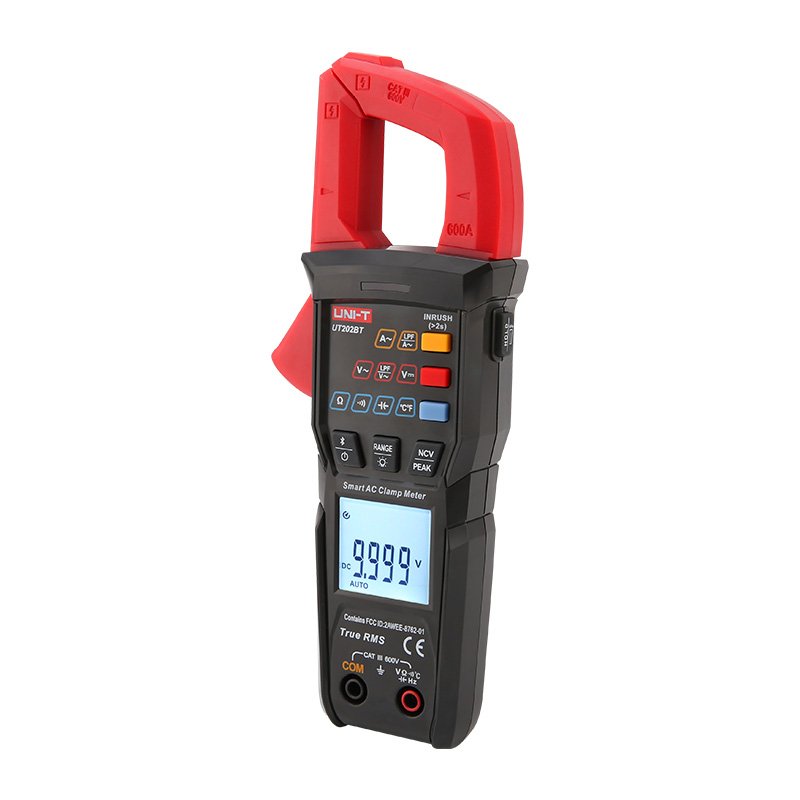

UNI-T Smart AC UT202BT/UT202T Clamp Meters
Original price was: ₹11,798.82.₹8,851.18Current price is: ₹8,851.18.
Estimated delivery between Jun 30 to Jul 15
- Description
- Features
- Specifications
- Additional Information
- Store Policies
- Inquiries
Description
UT202BT is a Bluetooth smart clamp meter designed with low pass filter mode, and inrush current detection, peak hold, and other traditional clamp meter functions. UT202T is a simple to use smart clamp meter which can automatically detect most common parameters.
Models: UT202BT, UT202T
Features of UNI-T Smart AC UT202BT/UT202T Clamp Meters
Certificates: CE, UKCA, cETLus
● Button-design clamp meter
● One-hand operation and easy to use
● True RMS / 9999 counts
● Jaw opening: 28mm
● 600V AC/DC voltage measurement
● 600A AC current measurement
● Dual display: V+HZ and A+HZ
● Bright backlight / Flashlight
● Non-contact voltage (NCV)
● CAT III 600V
Technical Specifications
Certificates
- CE
- UKCA
- cETLus
DC Voltage (V)
- Range: 600V
- Accuracy:
- UT202T: ±(0.5% + 3)
- UT202BT: ±(0.5% + 3)
AC Voltage (V)
- Range: 600V
- Accuracy:
- UT202T: ±(0.8% + 3)
- UT202BT: ±(0.8% + 3)
AC Current (A)
- Range: 600A
- Accuracy:
- UT202T: ±(2.5% + 5)
- UT202BT: ±(2.5% + 5)
Resistance (Ω)
6MΩ
- Accuracy:
- UT202T: ±(0.8% + 3)
100MΩ
- Accuracy:
- UT202BT: ±(0.8% + 3)
Frequency (Hz)
- Range: 40Hz ~ 1000Hz
- Accuracy:
- UT202T: ±(1.0% + 5)
- UT202BT: ±(1.0% + 5)
Capacitance (F)
- Range: 100mF
- Accuracy:
- UT202T: ±(4% + 5)
- UT202BT: ±(4% + 5)
Temperature (℃ / ℉)
UT202BT
- Range: -40℃ ~ 1000℃ / -40℉ ~ 1832℉
- Accuracy: ±5℃ / ±9℉
Features
- Jaw Opening:
- UT202T: 28mm
- UT202BT: 28mm
- Display Count:
- UT202T: 9999
- UT202BT: 9999
- Dual Display:
- UT202T: Yes
- UT202BT: Yes
- Auto Range:
- UT202T: Yes
- UT202BT: Yes
- NCV Detection:
- UT202T: Yes
- UT202BT: Yes
- Continuity Test:
- UT202T: Yes
- UT202BT: Yes
- PEAK Hold:
- UT202BT: Yes
- Low Pass Filter (LPF):
- UT202BT: Yes
- Inrush Current Measurement:
- UT202BT: Yes
- Audible & Visual Indication:
- UT202T: Yes
- UT202BT: Yes
- Low Battery Indication:
- Below approximately 2.4V
- UT202T: Yes
- UT202BT: Yes
- Data Hold:
- UT202T: Yes
- UT202BT: Yes
- Auto Power Off:
- Approximately 15 minutes
- UT202T: Yes
- UT202BT: Yes
- Flashlight:
- UT202T: Yes
- UT202BT: Yes
- Bluetooth:
- UT202BT: Yes
- Safety Rating:
- CAT III 600V
General Characteristics
- Power Supply: AAA 1.5V × 2
- Product Color: Red + Gray
- Product Net Weight:
- UT202T: 241g (including batteries)
- UT202BT: 251g (including batteries)
- Product Dimensions:
- 201.5 × 47 × 28 mm
Standard Accessories
- UT202T:
- Test Leads
- Batteries
- UT202BT:
- Test Leads
- Batteries
- Temperature Probe
Standard Individual Packing
- Gift Box
- Carrying Bag
- English Manual
Packaging Information
- Standard Quantity per Carton: 40 pcs
- Standard Carton Dimensions: 485 × 295 × 385 mm
BRAND: UNI-T
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
Import Duties : Applicable
