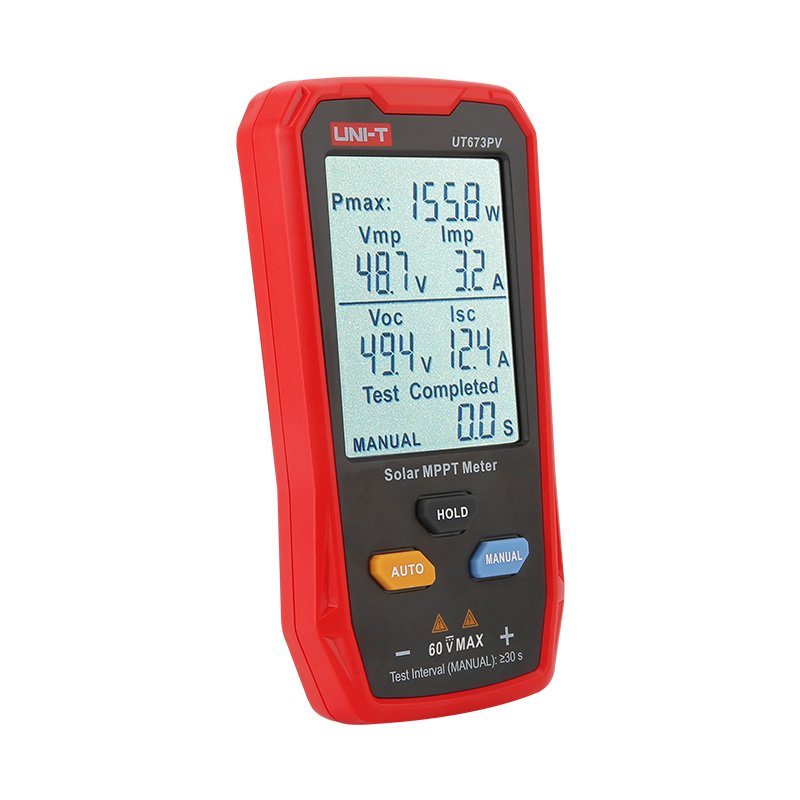

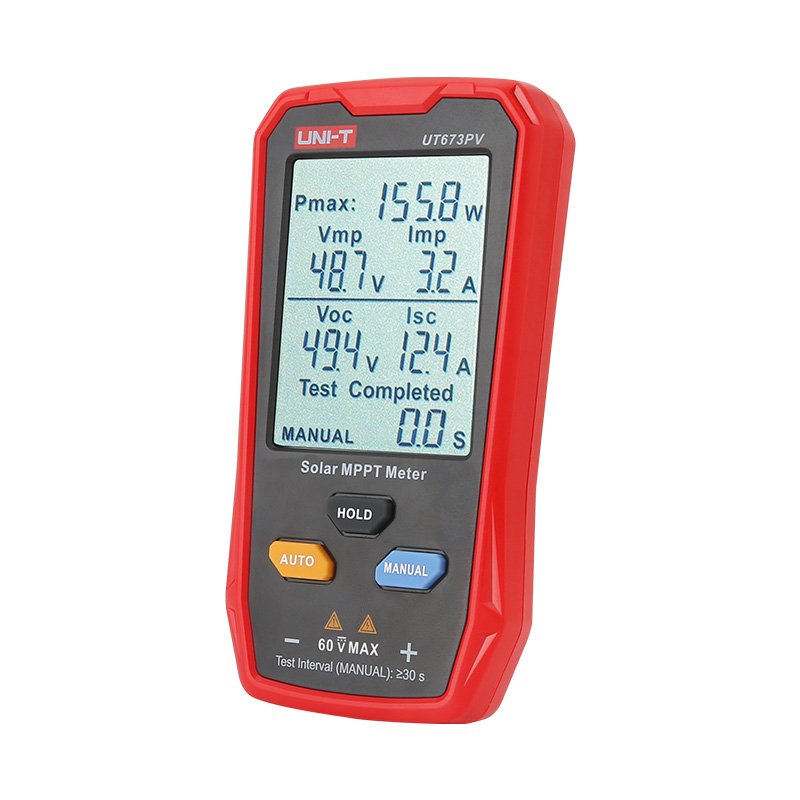

UNI-T UT673PV Solar MPPT Meter
Original price was: ₹8,258.82.₹7,254.64Current price is: ₹7,254.64.
Estimated delivery between Jun 30 to Jul 15
- Description
- Features
- Specifications
- Additional Information
- Store Policies
- Inquiries
Description
UT673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current.
Featuring a spacious screen and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously. Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users.
Features of UT673PV Solar MPPT Meter
Certifications (UT673PV series only): CE, cETLus, RoHS
● Maximum power test (Pmax) 5～800W
● Peak power voltage (Vmp) 12～60V
● Peak power current (Imp) 0～35A
● Open circuit voltage (Voc) 12～60V
● Short circuit current (Isc) 0～35A
● Large screen and multiple result display
● No batteries needed, powered by the solar panel

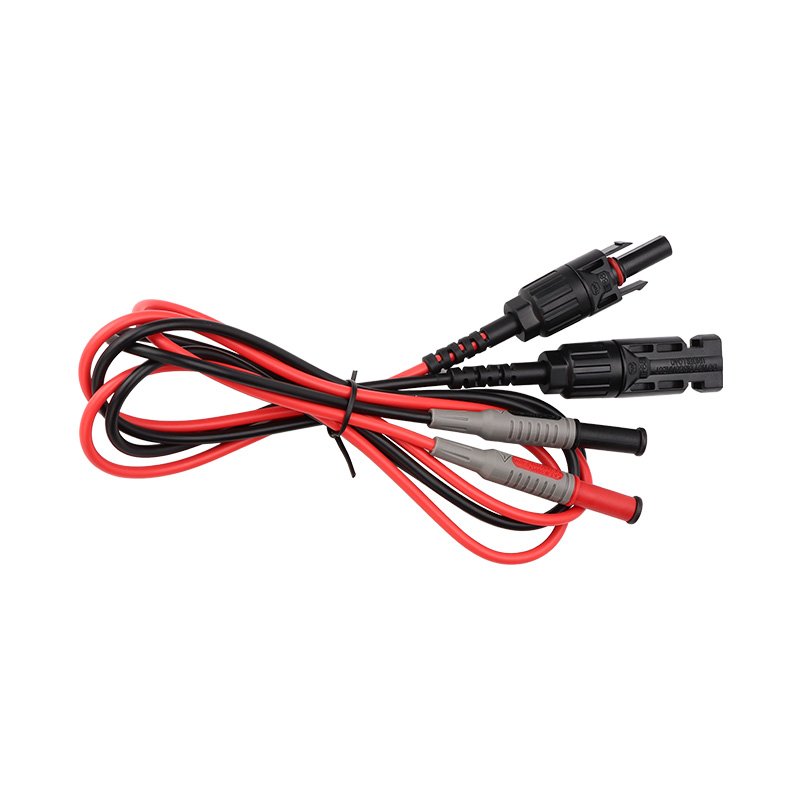

● Equipped with MC4 test lead
● Portable and convenient
Technical Specifications
Max Power Measurement
- 5~800W
- Accuracy: ±(1.0%＋10)
Max Power Current (DC)
- 0~35A
- Accuracy: ±(1.5%＋5)
Max Power Voltage (DC)
- 12~60V
- Accuracy: ±(1.5%＋5)
Open Circuit Voltage (DC)
- 12~60V
- Accuracy: ±(1.5%＋5)
Short Circuit Current (DC)
- 0~35A
- Accuracy: ±(1.5%＋5)
Features
- Display: Large LCD (52 × 66mm)
- Reverse Polarity Connect Protection: ✔
- Over Voltage Protection: ✔
- Over Current Protection: ✔
- Over Temperature Protection: ✔
- Over Power Protection: ✔
- Manual/Auto MPPT Test: ✔
- Data Hold: ✔
- Power Supply: No Battery Needed, Powered by Solar Panel
- Overvoltage Category: CAT 0 60V
- Certificates: CE, cETLus, RoHS
BRAND: UNI-T
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
Import Duties : Applicable
