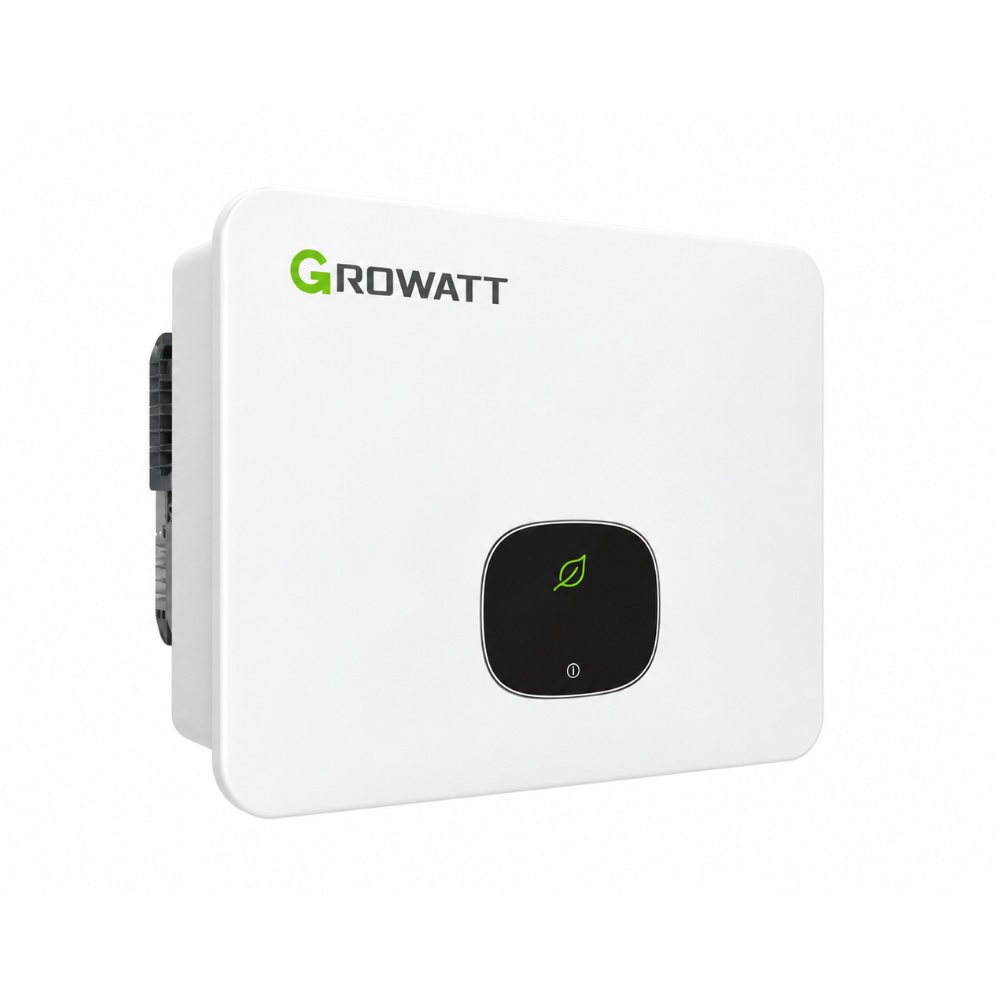

Growatt SPM 2500-6000TL-HU/HU2 Hybrid Solar Inverter Single Phase Hybrid
Estimated delivery between Sep 30 to Oct 15
- Description
- Additional Information
- Store Policies
- Inquiries
Description
| Datasheet | SPM 2500TL-HU2 | SPM 3000TL-HU2 | SPM 3600TL-HU2 | SPM 5000TL-HU2 | SPM 6000TL-HU2 |
|---|---|---|---|---|---|
| Input data (DC) | |||||
| Max. recommended PV power (for module STC) | 4000W | 4800W | 5760W | 8000W | 9600W |
| Max. DC voltage | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 550V | ||||
| Start voltage | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 100V | ||||
| Nominal voltage | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 220V | ||||
| MPPT voltage range | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 80V~525V | ||||
| No. of MPPT trackers | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 2 | ||||
| No. of PV strings per MPPT tracker | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1 | ||||
| Max. input current per MPP tracker | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 18A | ||||
| Max. short-circuit current per MPP tracker | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 27.5A | ||||
| AC input data (AC) | |||||
| Nominal AC input power | 2500W | 3000W | 3600W | 5000W | 6000W |
| Nominal input voltage | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 220V/230V/240V | ||||
| Nominal input current | 10.9A | 13.1A | 15.7A | 21.8A | 26.1A |
| Max. grid charging current | 12.5A | 15A | 18A | 25A | 30A |
| Max. generator input power | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 7200W | ||||
| Output data (AC) | |||||
| AC nominal power | 2500W | 3000W | 3600W | 5000W | 6000W |
| Max. AC apparent power | 2500VA | 3000VA | 3600VA | 5000VA | 6000VA |
| Nominal AC voltage (range) | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 220V/230V/240V | ||||
| AC grid frequency (range) | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 50Hz/60Hz | ||||
| Max. output current | 10.9A | 13.1A | 15.7A | 21.8A | 26.1A |
| Adjustable power factor | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0.8 leading…0.8 lagging | ||||
| THDi | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â <3% | ||||
| Battery data (DC) | |||||
| Battery voltage range | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 40~90V | ||||
| Max. charging and discharging current | 60A | 70A | 90A | 120A | 140A |
| Continuous charging and discharging power | 2500W | 3000W | 3600W | 5000W | 6000W |
| Type of battery | Â Â Â Â Â Â Â Â Â Â Â Lithium battery/Lead-acid battery | ||||
| Backup power (AC) | |||||
| AC nominal output power | 2500W | 3000W | 3600W | 5000W | 6000W |
| Nominal AC output voltage | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 220V/230V/240V | ||||
| Nominal AC output frequency | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 50/60Hz | ||||
| Switch time | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â <10ms | ||||
| Overload capability | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 200% Full Load @ 5s | ||||
| Efficiency | |||||
| Peak efficiency | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 97.5% | ||||
| Europe efficiency | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 96.0% | ||||
| MPPT efficiency | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 99.9% | ||||
| Protection devices | |||||
| PV switch | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Yes | ||||
| AC over current protection | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Yes | ||||
| AC over voltage protection | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Yes | ||||
| Ground fault monitoring | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Yes | ||||
| Grid monitoring | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Yes | ||||
| Anti-islanding protection | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Yes | ||||
| Residual-current monitoring unit | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Yes | ||||
| Insulation resistance monitoring | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Yes | ||||
| Surge protection | Â Â Â Â Â Â Â Â Â Â Â Â Â Â DC Type II / AC Type II | ||||
| General data | |||||
| Max. stackable number | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 9 | ||||
| Dimensions (W/H/D) | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 365*592*220mm | ||||
| Weight |          Gross Weight: 20kg   Net Weight: 16kg | ||||
| Operating temperature range |             -25°C~60°C, >45°C Derating | ||||
| Noise emission (typical) | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â <60 dB | ||||
| Topology | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Transformerless | ||||
| Cooling | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Smart Fan Cooling | ||||
| Protection degree | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â IP65 | ||||
| Relative humidity | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0~100% | ||||
| Altitude | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â <2000m | ||||
| Display | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â LCD touch screen | ||||
| Interfaces RS485/CAN/USB | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Yes | ||||
| Communication | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â WiFi | ||||
| Warranty | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 5 years | ||||
BRAND: Growatt
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
Import Duties : Applicable
