MASTECH AC current Digital Clamp Meters MS2103B

MASTECH MS2103B Digital Clamp Meter: Multifunctional Electrical Test Tool

The MASTECH MS2103B AC/DC Current Digital Clamp Meter is a versatile and reliable tool designed for measurement of electrical parameters. Ideal for both professionals and hobbyists, this digital clamp meter offers a comprehensive range of features to meet various testing needs.

Key Features:

• AC/DC Current Measurement: Measures AC current up to 200A and DC current up to 200A.

• Multifunctional Measurement: The MS2103B measures AC/DC voltage, resistance, capacitance, and frequency, making it a versatile tool for a wide range of applications.

• Temperature Measurement: Measures temperatures from -20°C to 1000°C(-4°F to 1832°F).

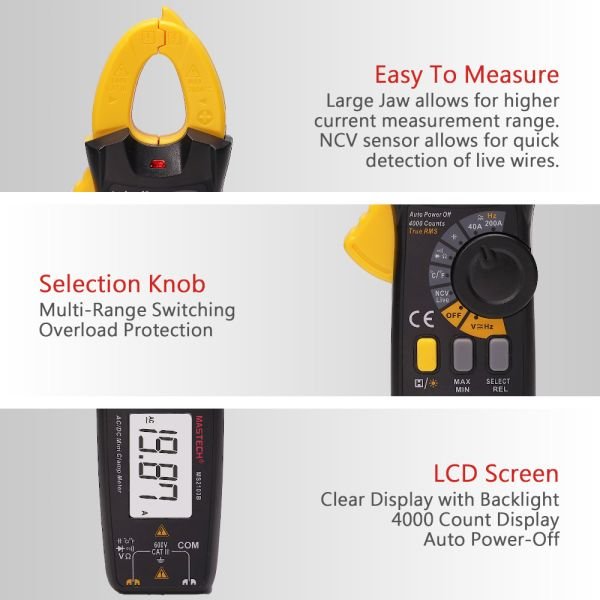

• Max Jaw Opening: 19mm, easy use in tight spaces.
• Max Display: 4000 counts for readings.
• True RMS: Provides accurate readings for both linear and non-linear loads.

• Non-Contact Voltage (NCV) Detection / Live Wire Recognition: Safely detect live wires and voltage presence without physical contact, ensuring user safety.
• LCD Backlit Display: The clear, backlit display allows for easy reading of measurements, even in dimly lit environments.
• Data Hold Function: Allows users to freeze the displayed measurement, making it easier to record and analyze results.
• Safety and Durability: Equipped with CAT III 600V safety ratings, the MS2103B ensures user protection and durability in demanding environments.
• Additional Features: Includes diode test, continuity buzzer, MAX/MIN, relative measurement, auto power-off, and unit display capabilities.

Specifications:

• Resistance Measurement: Ranges from 400Ω to 40MΩ.
• DC Voltage (DCV): Measures from 400mV to 600V.
• AC Voltage (ACV): Covers a range from 4V to 600V.
• DC Current (DCA): Ranges from 40A to 200A.
• AC Current (ACA): Measures from 40A to 200A.
• Frequency Measurement: Covers from 10Hz to 10MHz.
• Capacitance Measurement: Ranges from 40nF to 4mF.
• Temperature Measurement: Supports measurements from -20°C to 1000°C and -4°F to 1832°F.
• Input Impedance: ≥10MΩ
• Max Jaw Opening: 19mm
• Battery: 1.5V AAA*2

Benefits:

• Versatility: The MS2103B is equipped to handle a wide range of electrical testing tasks, making it suitable for various applications.
• Enhanced Safety: Features like non-contact voltage detection and CAT III 600V rating ensure safe operation in different testing environments.
• User-Friendly Design: With its true RMS technology, auto power-off function, and ergonomic design, this clamp meter is easy to use, even for beginners.
• Durability: Built to last in demanding environments, the MS2103B ensures long-lasting performance and reliability.

BRAND: MASTECH

DELIVERY: 7-15 days

WARRANTY: 12 Months

COUNTRY OF ORIGIN: China

Import Duties : Applicable

Specifications

Resistance

Range: 400Ω
Accuracy: ±(1.0%+10)

Range: 4kΩ, 40kΩ, 400kΩ, 4MΩ
Accuracy: ±(0.8%+5)

Range: 40MΩ
Accuracy: ±(2.0%+10)

DC Voltage (DCV)

Range: 400mV
Accuracy: ±(0.7%+5)

Range: 4V, 40V, 400V, 600V
Accuracy: ±(0.8%+5)

AC Voltage (ACV)

Range: 4V, 40V, 400V, 600V
Accuracy: ±(1.0%+5)

DC Current (DCA)

Range: 40A, 200A
Accuracy: ±(2.5%+10)

AC Current (ACA)

Range: 40A, 200A
Accuracy: ±(2.5%+10)

Frequency

Range: 10Hz ~ 10MHz
Accuracy: ±(0.5%+2)

Capacitance

Range: 40nF
Accuracy: ±(4.0%+25)

Range: 400nF ~ 400µF
Accuracy: ±(4.0%+15)

Range: 4mF
Accuracy: ±(5.0%+25)

Temperature (°C)

Range: -20°C ~ 0°C
Accuracy: ±4°C

Range: 0°C ~ 400°C
Accuracy: ±(2.0%+3)

Range: 400°C ~ 1000°C
Accuracy: ±(3.0%+3)

Temperature (°F)

Range: -4°F ~ 50°F
Accuracy: ±5°F

Range: 50°F ~ 750°F
Accuracy: ±(2.0%+5)

Range: 750°F ~ 1832°F
Accuracy: ±(3.0%+5)

• Electrical troubleshooting
• Circuit testing
• Automotive diagnostics
• HVAC testing
