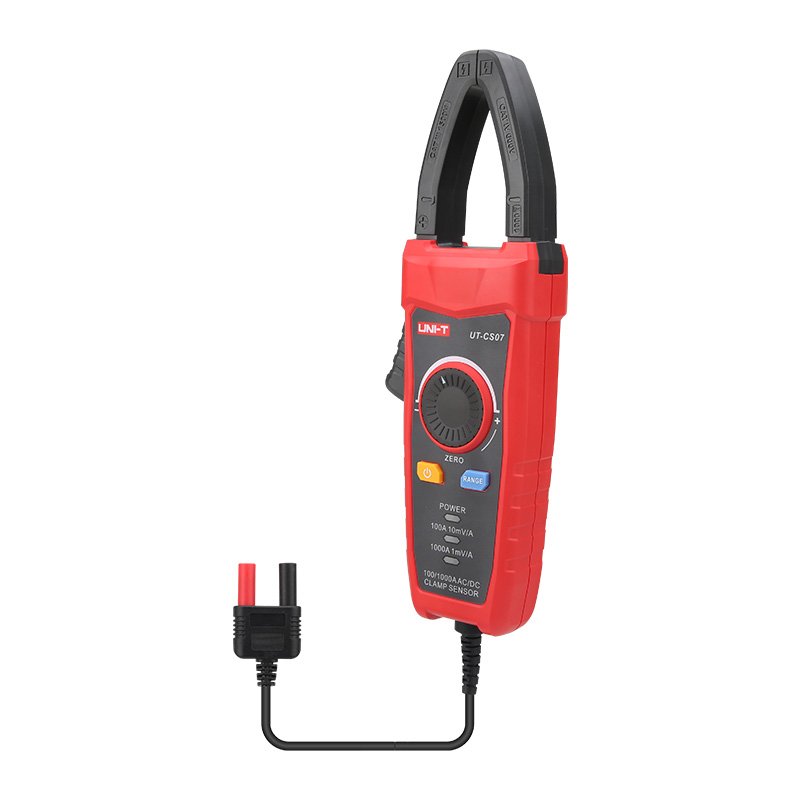

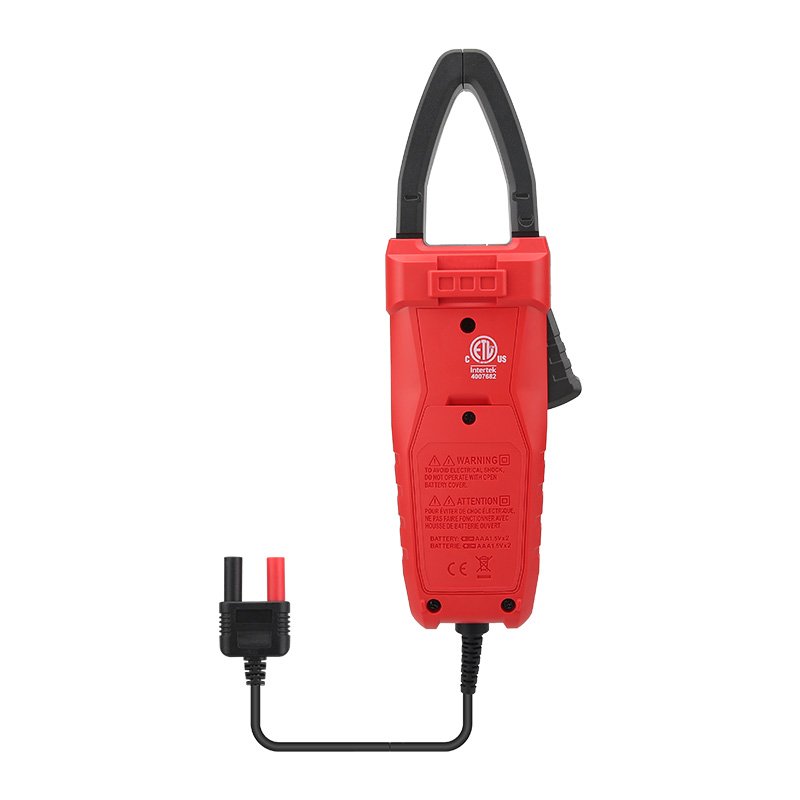

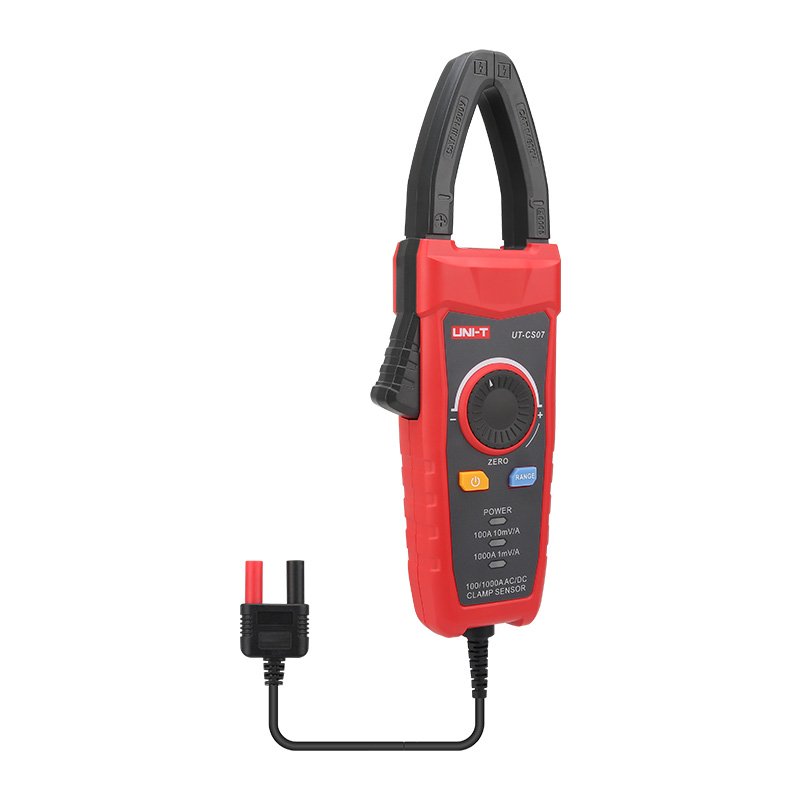

UNI-T AC/DC 1000A UT-CS07 Clamp sensor
Estimated delivery between Jun 30 to Jul 15
- Description
- Features
- Specifications
- Additional Information
- Store Policies
- Inquiries
Description
The UNI-T AC/DC 1000A UT-CS07 Clamp sensor is a high-reliability and high-security AC/DC current sensor that can be used as an expansion device for multimeter current measurement. It measures current through the sensor and converts the current value into a voltage value. The converted voltage is then transmitted to the multimeter via a cable, and the multimeter displays the corresponding voltage value. It can measure up to 1,000 A of AC/DC current. With reliable measurement accuracy and a unique appearance, it has become a practical auxiliary tool for current acquisition in electrical instruments.
Features of UNI-T AC/DC 1000A UT-CS07 Clamp sensor
Certifications: CE, cETLus, RoHS
1. 35mm slender clamp, suits for dense wiring
2. Such as: in inverters, combiner boxes, copper busbars, etc.
3. Compatible DMMs: UT117C, UT196, UT139C, UT197, UT197PV and etc.
4. AC/DC Current: 1000A; Frequency response: 45Hz~400Hz
5. Output ratio：1000A @ 10mV/1A；100A @ 1mV/1A
6. Zero function
7. AC/DC 1000A input protection
8. Category rating：CATIII 1500V /CAT IV 600V
Flexible AC/DC Current Probe Technical Specifications
AC Current (ACA)
- 100.0A
- Output Ratio: 10mV/A
- Accuracy: ±(1.5% + 0.5A)
- 1000A
- Output Ratio: 1mV/A
- Accuracy: ±(2.0% + 0.5A)
DC Current (DCA)
- 100.0A
- Output Ratio: 10mV/A
- Accuracy:
- ±(1.5% + 0.5A), 45Hz ~ 200Hz
- ±(2.0% + 0.5A), 200Hz ~ 400Hz
- 1000A
- Output Ratio: 1mV/A
- Accuracy:
- ±(2.0% + 0.5A), 45Hz ~ 200Hz
- ±(2.5% + 0.5A), 200Hz ~ 400Hz
Features
- Jaw Size: 35 mm Conductor or 65 × 8 mm Busbar
- Output Ratio: 10mV/A & 1mV/A
- Wire Length: 1.1 m
- True RMS: Depends on the Multimeter
- Response Time: Depends on the Multimeter
- Frequency (ACA): 50Hz ~ 400Hz
- Waveform Display: Adaptable Oscilloscope
- Accuracy: Depends on the Multimeter
- Low Battery Indication: Yes
- Drop Test: 1 m
- Pollution Degree: 2
Operating Environment
- 0°C ~ 30°C (<75% RH)
- 30°C ~ 40°C (<50% RH)
Storage Environment
- -10°C ~ 50°C (<80% RH)
General Characteristics
- Power Supply: 2 × AA Batteries (3V)
- Working Current: <50mA
- Overvoltage Category: CAT III 1500V / CAT IV 600V
- Certifications: CE
- Product Dimensions: 276 × 86 × 50 mm
- Tail Cable Length: Approx. 1.1 m
BRAND: UNI-T
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
Import Duties : Applicable
