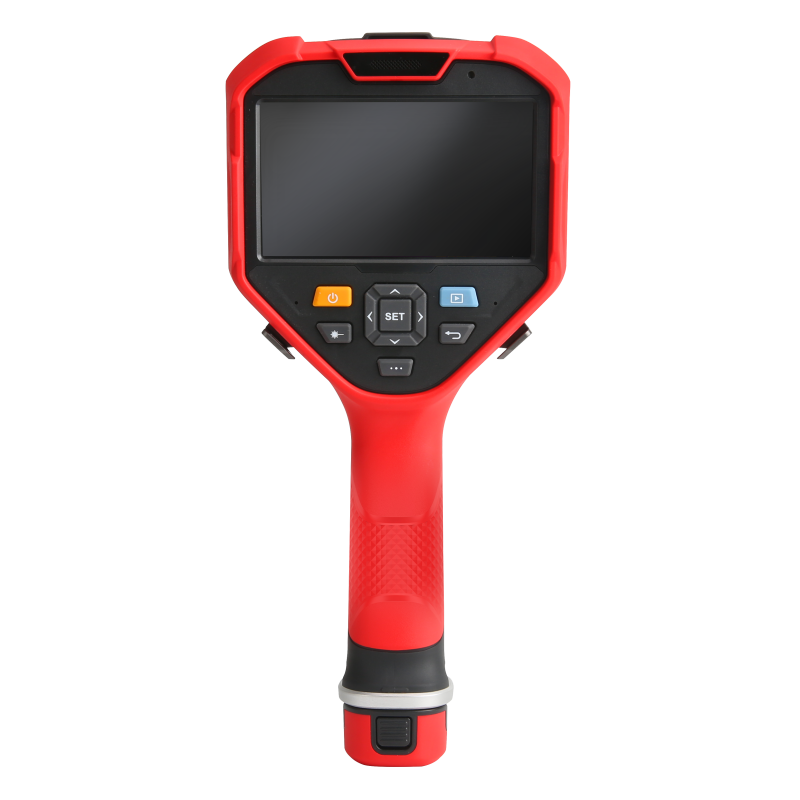

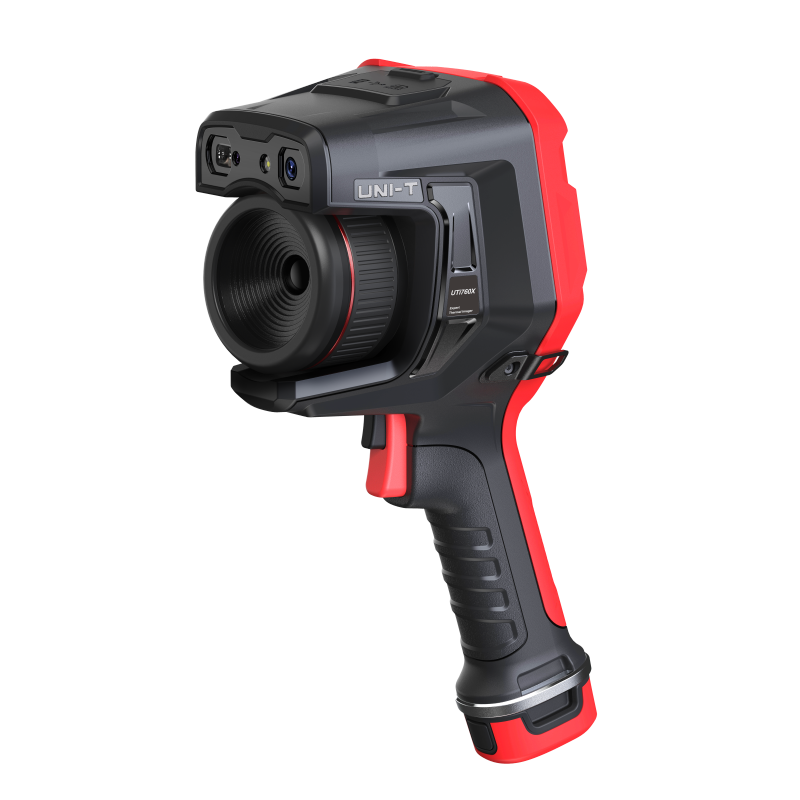

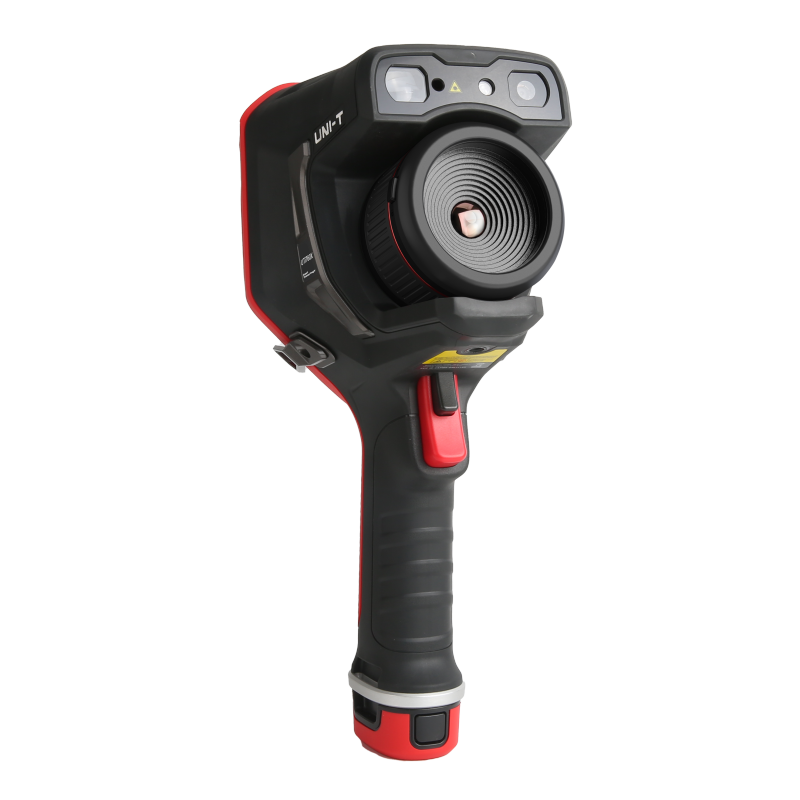

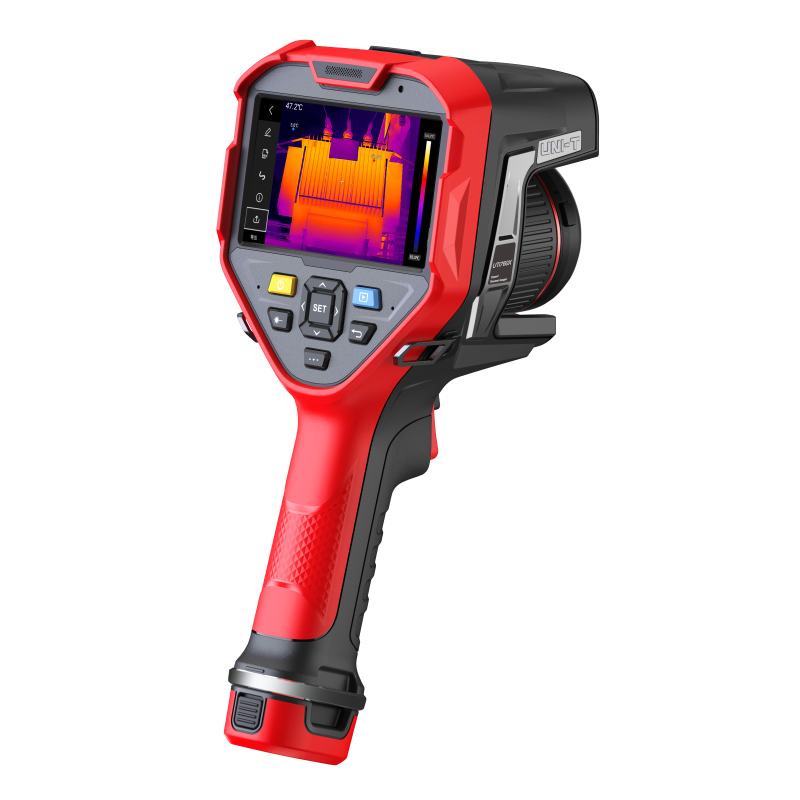

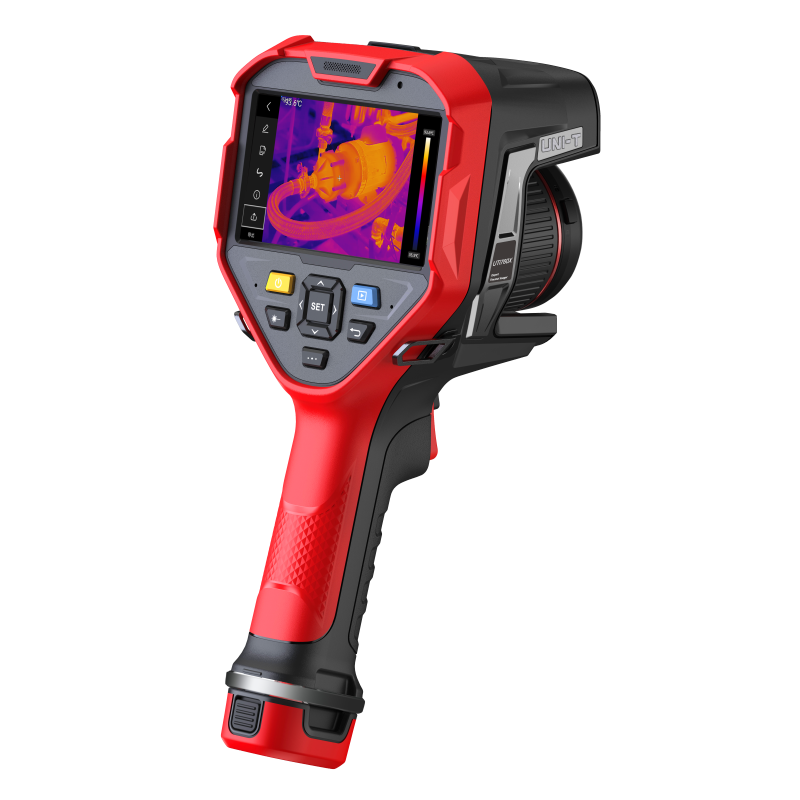

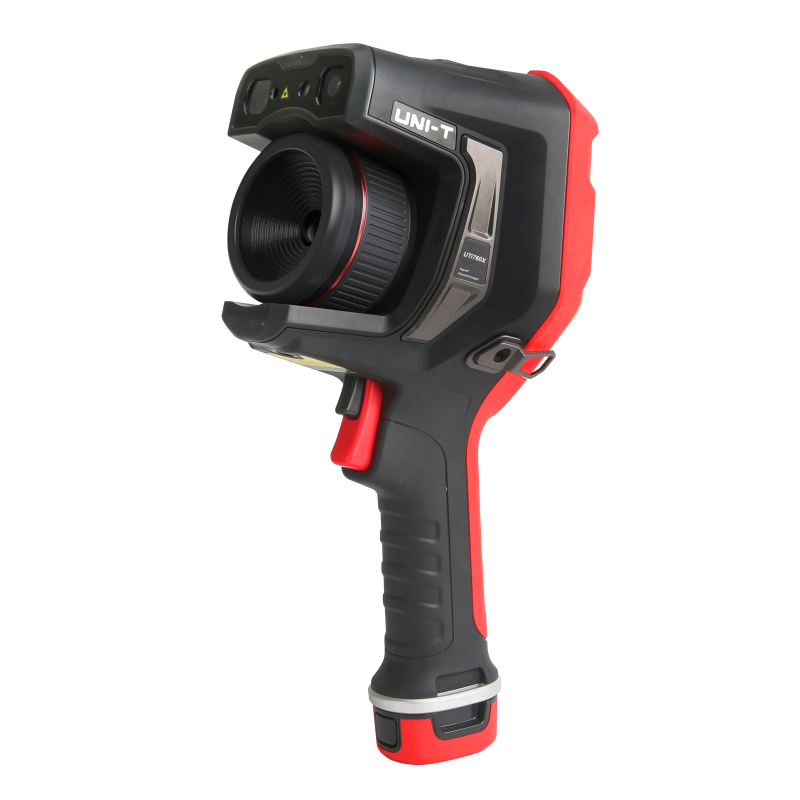

UNI-T Expert UTi740X Thermal Imager

Original price was: ₹283,200.00.Current price is: ₹253,895.88.

By:
Icon Image

Estimated delivery between Jun 30 to Jul 15

Pay With:
Payments Image

Description

UTi740X features a high-resolution infrared detector of 400×300 pixels and a 13MP digital camera. The high-precision thermal camera is designed specifically for the industrial field, with a 30Hz infrared frame rate for fast and accurate access to more temperature data of the moving targets. The wide temperature measurement range, combined with the optional camera lens, meets the requirements of numerous severe measurement scenarios.

Features :

● 400×300 pixels (upgrade to 800×600 when Super Resolution is on)
● Temp. Measurement range from -20℃ to 1200℃
● Interchangeable camera lens (support lens autocal)
● Multiple focus modes (Continuous AF/Contrast AF/Laser AF/Touch AF/Manual Focus/Automatic)
● With the T-Mix image fusion algorithm technology
● High-precision measurement (accuracy is up to ±1.0℃ or ±1.0%)
● Smart meter
● AI voice
● Laser rangefinder
● OTA upgrade

Technical Specifications

Model
  • UTi740X
Display
  • 5″ IPS Touch Display (1280×720)
Infrared Performance
  • IR Resolution: 400 × 300 Pixels
  • Super Resolution: 800 × 600 Pixels
  • Spectral Range: 7.5 ~ 14μm
  • Pixel Size: 12μm
  • Frame Rate: 30Hz
  • Thermal Sensitivity (NETD): 35mK
Focus System
  • Continuous AF
  • Semi-auto Focus
  • Laser Assisted Focus
  • Touch AF
  • Manual Focus
  • Focusing Time: <2s
  • Lens Recognition: ✔
  • Lens Calibration: Automatic
Lens Specifications
Standard Lens (UT-Z048)
  • Focal Length: 9.6mm
  • Aperture: F1.0
  • Field of View (FOV): 27.7°(H) × 20.6°(V)
  • Spatial Resolution (IFOV): 1.28mrad
  • Imaging Distance: 0.1m (Min)
Wide-Angle Lens (UT-Z049)
  • Focal Length: 6mm
  • Aperture: F1.0
  • Field of View (FOV): 46°(H) × 34°(V)
  • Spatial Resolution (IFOV): 2.1mrad
  • Imaging Distance: 0.1m (Min)
Telephoto Lens (UT-Z050)
  • Focal Length: 18mm
  • Aperture: F1.0
  • Field of View (FOV): 14.6°(H) × 10.9°(V)
  • Spatial Resolution (IFOV): 0.66mrad
  • Imaging Distance: 0.15m (Min)
Ultra Telephoto Lens (UT-Z051)
  • Focal Length: 36mm
  • Aperture: F1.0
  • Field of View (FOV): 7.2°(H) × 5.5°(V)
  • Spatial Resolution (IFOV): 0.33mrad
  • Imaging Distance: 1m (Min)
Macro Lens (UT-Z053)
  • Focal Length: 18mm
  • Aperture: F1.1
  • Imaging Distance: 24 ~ 42mm
Temperature Measurement & Accuracy
Standard / Wide-Angle / Telephoto / Ultra Telephoto Lens (Factory Calibrated)
  • Temperature Range: -20℃ ~ 1200℃
  • Measurement Range: -20℃ ~ 120℃
    • Accuracy: ±1.0℃ / ±1.0% (0℃ ~ 120℃)
    • Accuracy: ±2.0℃ (-10℃ ~ 0℃)
  • Measurement Range: 0℃ ~ 600℃
    • Accuracy: ±1.5℃ / ±1.5% (20℃ ~ 600℃)
  • Measurement Range: 500℃ ~ 1200℃
    • Accuracy: ±1.5%
Macro Lens (Factory Calibrated)
  • Temperature Range: -20℃ ~ 100℃
  • Measurement Range: -20℃ ~ 100℃
  • Accuracy: ±2.0℃ (-10℃ ~ 100℃)
Standard / Wide-Angle / Telephoto / Ultra Telephoto Lens (Delivered Separately)
  • Temperature Range: -20℃ ~ 1200℃
  • Measurement Range: -20℃ ~ 120℃
    • Accuracy: ±1.5℃ / ±1.5% (0℃ ~ 120℃)
    • Accuracy: ±2.0℃ (-10℃ ~ 0℃)
  • Measurement Range: 0℃ ~ 600℃
    • Accuracy: ±1.5℃ / ±1.5% (20℃ ~ 600℃)
  • Measurement Range: 500℃ ~ 1200℃
    • Accuracy: ±1.5%
Macro Lens (Delivered Separately)
  • Temperature Range: -20℃ ~ 100℃
  • Measurement Range: -20℃ ~ 100℃
  • Accuracy: ±2.0℃ (-10℃ ~ 100℃)
Color Palettes
  • White Hot
  • Black Hot
  • Red Hot
  • Ironbow
  • Rainbow
  • Rainbow HC
  • Lava
  • Customized Palette Supported
  • Color Inversion Supported
Image Modes
  • Thermal
  • Visual Image
  • Fusion
  • T-Mix
  • PIP
  • Dual-Channel Image
Analysis Functions
  • On-Screen Analyzer:
    • 16 Points
    • 16 Lines
    • 16 Rectangles
    • 16 Circles
  • T-Select Supported
  • Level & Span:
    • Auto
    • Manual
    • Touch
  • HI/LO Temperature Alarm:
    • LCD Animation
    • LED Flashlight
    • Buzzer
  • HI/LO Temperature Tracking: ✔
  • ROI Correction (Regional Emissivity Correction): ✔
Visual Camera
  • Digital Camera Resolution: 13MP
  • Digital Zoom: ✔
Recording & Smart Features
  • Photo Capturing: ✔
  • Video Recording: ✔
  • Full-Screen Thermal Radiometric Video Stream: ✔
  • T-Contrast: ✔
  • T-Sharp: ✔
  • Smart Meter: ✔
  • AI Voice: ✔
  • OTA Upgrade: ✔
  • QR Code Scanning: ✔
  • Text Annotation: ✔
  • Voice Annotation: ✔
Connectivity
  • HDMI Display Extension: ✔
  • Wi-Fi: ✔
  • Wi-Fi Live Streaming: ✔
  • Bluetooth: ✔
  • Laser Pointer: ✔
  • Laser Range Finder (LRF): 0.1 ~ 50m (Class 2, Red)
  • LED Lighting: ✔
  • Analysis Software: PC + APP
Battery & Storage
  • Battery: 7.2V / 5000mAh Rechargeable & Detachable Li-ion Battery Pack
  • Operating Time: ≥5 Hours
  • Charging System:
    • Type-C Direct Charging
    • Independent Battery Pack Charging
  • Charging Time:
    • 90% Charge in 2.5 Hours
    • (Power-Off Charging or Independent Battery Charging)
  • USB Interfaces:
    • Type-C USB
    • Micro HDMI
  • Storage:
    • Built-in 128GB
    • Supports SD Expansion
File Formats
  • Image Storage Format: JPG
  • Video Storage Format:
    • MP4
    • UIR
Environmental Conditions
  • Working Temperature: -20℃ ~ 55℃
  • Storage Temperature: -40℃ ~ 60℃
  • Working Humidity: 10% ~ 95%RH (Non-condensing)
Protection & Certifications
  • Protection Rating: IP54
  • Drop Protection: 2m Drop-Proof
  • Certifications:
    • CE
    • FCC
    • RoHS
Languages
  • EN
  • FR
  • DE
  • IT
  • ES
  • SV
  • PL
  • CS

BRAND: UNI-T

DELIVERY: 7-15 days

WARRANTY: 12 Months

COUNTRY OF ORIGIN: China

Import Duties : Applicable
