UNI-T Pen-Type UT118C Meter
Estimated delivery between Jun 30 to Jul 15
- Description
- Features
- Specifications
- Applications
- Additional Information
- Store Policies
- Inquiries
Description
The UNI-T Pen-Type UT118C Meter is a lightweight and durable device that boasts True RMS measurement capability, allowing for accurate readings. With the ability to measure voltage up to AC/DC 600, a wide resistance and capacitance range, and gold-plated special-tip test leads for versatility and safe operation (CAT III 600V & CAT IV 300V), it is an excellent and cost-effective choice for residential appliance repair and DIY enthusiasts.
Features of UNI-T Pen-Type UT118C Meter
Certifications (118C series only): CE, cETLus, RoHS
● True RMS
● Two-color mold injection
● Display 6000
● CAT III 600V/CAT IV 300V
● 600V DC/AC voltage measurement
● Large resistance measurement: 60MΩ
● Large capacitance measurement: 60mF
● Diode/on/off/resistor automatic identification
● Two-step adjustment of nib length
● Gold-plated special-tip test leads, hardened phosphor bronze
● CE (EMC, LVD), ROHS
Technical Specifications
DC Voltage (V)
- 6.000V / 60.00V / 600.0V
- Accuracy: ±(1% + 3)
AC Voltage (V)
- 6.000V / 60.00V / 600.0V
- Accuracy: ±(1% + 4)
Resistance
- 600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ
- Accuracy: ±(1% + 3)
- 6.000MΩ
- Accuracy: ±(1.5% + 5)
- 60.00MΩ
- Accuracy: ±(2.5% + 5)
Capacitance
- 600.0nF / 6.000μF / 60.00μF / 600.0μF
- Accuracy: ±(3.5% + 8)
- 6.000mF
- Accuracy: ±(5.0% + 9)
- 60.00mF
- Accuracy: ±(10.0% + 9)
Frequency
- 99.99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 999.9kHz
- Accuracy: ±(0.01% + 5)
Features
- Display Count: 6000
- Duty Cycle: 0.1% to 99.9%
- NCV/LIVE Test: Yes
- True RMS: Yes
- Diode Test: Yes
- Continuity Test: Yes
- Resistance Measurement: Yes
- Auto Range: Yes
- Screen: HTN LCD (36 × 15 mm)
- Auto Power Off: Yes
- Flashlight: Yes
- Indicator: Dual Color
- Battery: 1 × AAA
- Safety Rating: CAT IV 300V, CAT III 600V
- Certifications: CE, cETLus, RoHS
General Characteristics
- Power Supply: 1 × AAA Battery
- Product Dimensions: 182.5 × 38.0 × 38.5 mm
- Product Color: Gray + Red
- Accessories Included:
- User Manual × 1
- 1.5V AAA Battery × 1
- NCV Live Test: Equipped with an NCV function, this meter utilizes a red flashing LED and buzzer to promptly indicate live wires, ensuring enhanced safety during electrical inspections.
- Safe & Reliable: This meter ensures safe and reliable measurements with CAT III 600V and CAT IV 300V safety ratings, providing accurate readings while minimizing electrical hazards.
- Portable & Lightweight Design: The compact, portable, and lightweight design offers excellent convenience and ease of use, making it a versatile and indispensable tool for a wide range of applications.

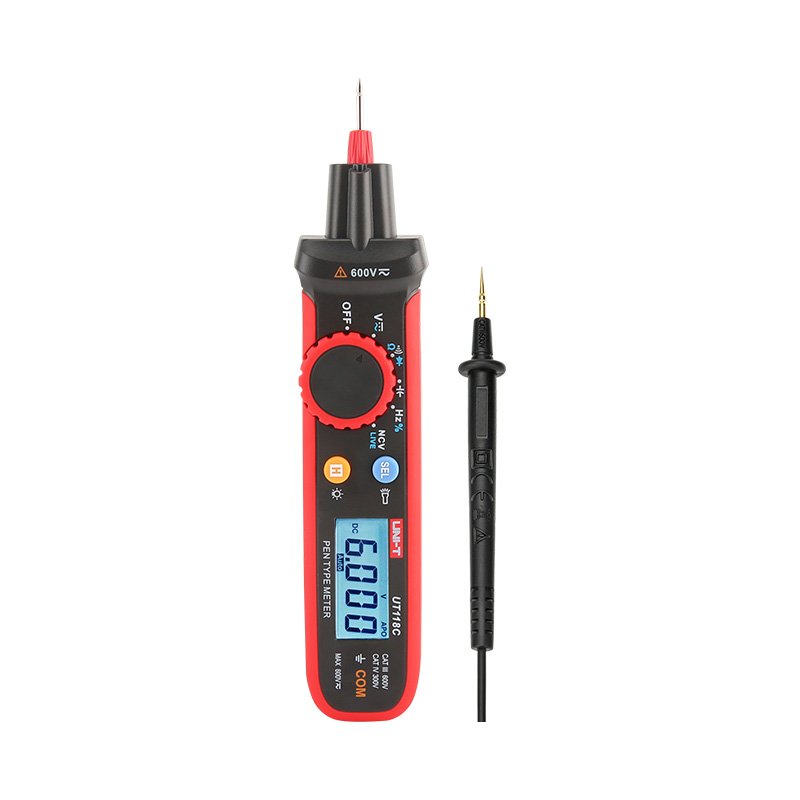

- Gold-Plated Special-Tip Test Lead: Featuring a gold-plated special-tip test lead, this meter enables precise and effortless electronic measurements with improved conductivity and durability.
