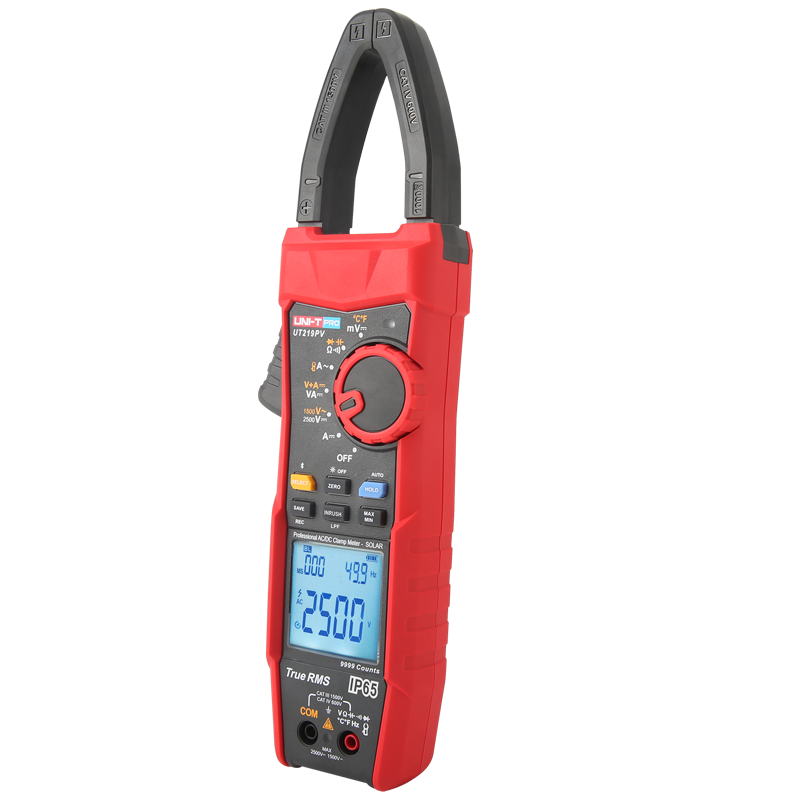

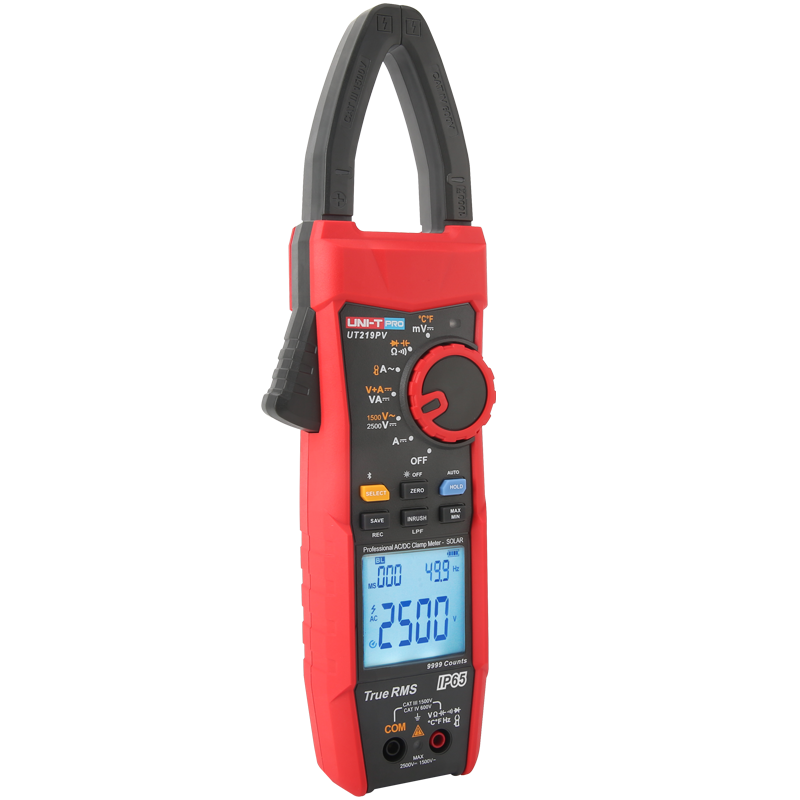

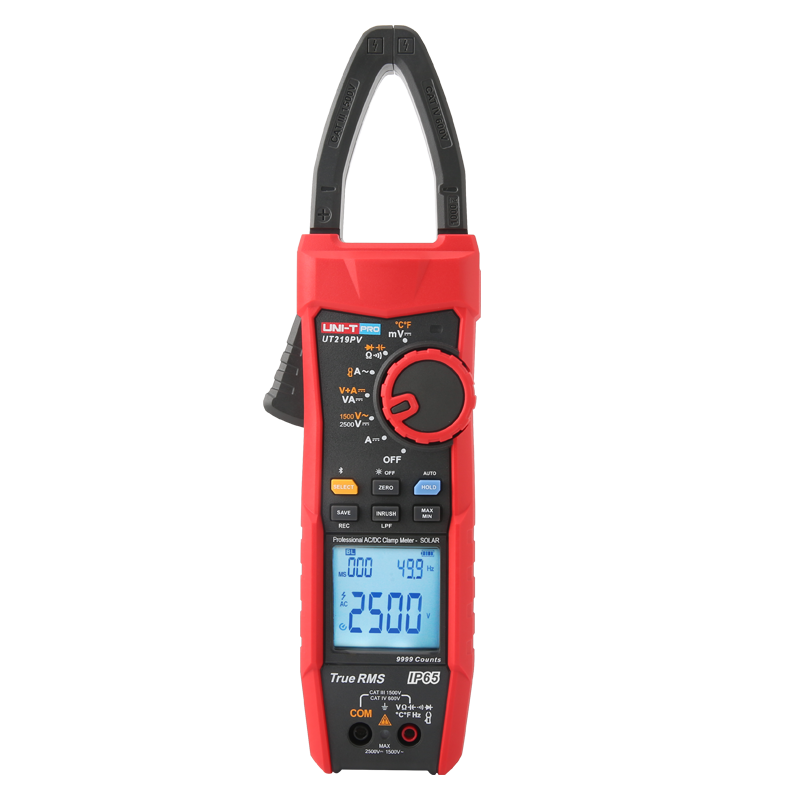

UNI-T Professional AC/DC UT219PV Clamp Meter
Original price was: ₹42,478.82.₹41,595.00Current price is: ₹41,595.00.
Estimated delivery between Jun 30 to Jul 15
- Description
- Features
- Specifications
- Additional Information
- Store Policies
- Inquiries
Description
The UT219PV is an advanced AC/DC clamp meter specially designed for high-voltage photovoltaic environments. It offers exceptional accuracy and performance, with a wide range of features. With its automatic range selection and a clear display capable of showing up to 9999 digits, this clamp meter allows for precise measurements of AC/DC voltage, current, low-pass filtered voltage/current, surge current, peak current, DC power (using an external flexible clamp head), resistance, circuit continuity, diodes, capacitance, and temperature. Its versatility extends beyond photovoltaic applications, as it can also be used in other high-voltage settings like energy storage systems, uninterruptible power supplies (UPS), and large motors.
Features of UNI-T Professional AC/DC UT219PV Clamp Meter
Certifications (UT219PV only): CE, RoHS, cETLus

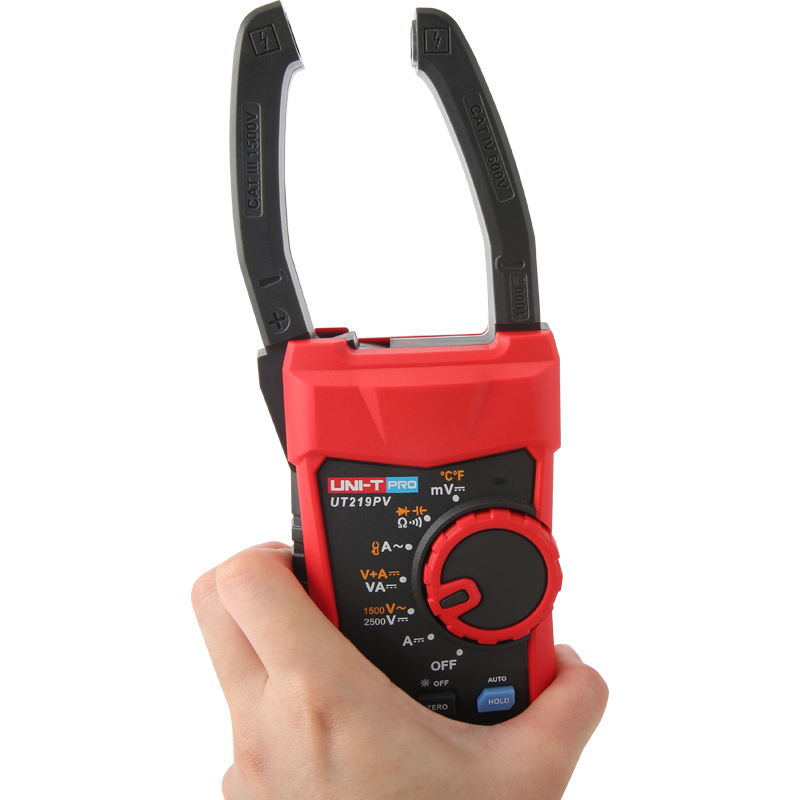

● 35mm Ultra-thin Jaw: suitable for inverter or combiner box
● Voltage measurement: AC1500V/DC2500V
● Current measurement: AC/DC 1000A
● Power DC: 2500KVA
● External clamp sensor: UT-CS09D(AC 3000A)
● Solar panel polarity indication: when <-10 DCV, Audible & Visual alarm
● Bluetooth APP
● Auto backlight & Auto power off
● Certificates：CE (EMC, LVD), cETLus, RoHS
● Safety rating：CAT III 1500V/ CAT IV 600V
● IP65
Specifications of UNI-T Professional AC/DC UT219PV Clamp Meter
Current (ACA)
- 999.9A
- 40Hz~100Hz: ±(2.0%+5)
- 100Hz~1000Hz: ±(2.5%+5)
Current (DCA)
- 999.9A
- Accuracy: ±(2.0%+5)
Voltage (ACV)
- 999.9V / 1500V
- 40Hz~1000Hz: ±(1.0%+5)
Voltage (DCV)
- 999.9V / 2500V
- Accuracy: ±(1.0%+5)
Voltage (DC mV)
- 999.9mV
- Accuracy: ±(1.0%+5)
ACV (with LPF)
- 999.9V
- Accuracy: ±(2.0％＋9)
ACA (with LPF)
- 999.9A
- Accuracy: ±(2.5％＋9)
ACA (with LPF): Flex Clamp Sensor
- 30.00A / 300.0A / 3000A
- Accuracy: ±(4.0%+9) (center area)
ACA: Flex Clamp Sensor
- 30.00A / 300.0A / 3000A
- Accuracy: ±(3.0%+5) (center area)
Power (DC)
- 999.9kVA / 2500kVA
- Accuracy: ±(2.0%+20)
Frequency (A & V)
- 5.0Hz to 999.9Hz
- Accuracy: ±(0.5%+5)
Resistance (Ω)
- 999.9Ω / 9.999kΩ / 99.99kΩ
- Accuracy: ±(1.0％+5)
Capacitance (F)
- 100.0μF / 1000μF
- Accuracy: ±(1.0％+5)
Temperature
- -40℃~400℃ / -40℉~752℉
- Accuracy: ±(1.0%+30); ±(1.0%+60)
Features
- True RMS: √
- Display Count: 9999
- Display: LCD Dual Display (V+A)
- Jaw (Max Conductor Dia.): 35mm
- Diode Test: √
- Solar Panel Polarity Indication: When < -10 DCV, Audible & Visual Alarm
- High Voltage Alarm: √
- Over Range Indication: √
- AUTO HOLD: √
- Inrush Current: √
- PEAK: √
- Bluetooth App: BT 5.0
- Auto Backlight: √
- Low Battery Indication: √
- Flexible Clamp Compatible: UT-CS09D (Optional)
- IP Rating: IP65
- Overvoltage Category: CAT III 1500V; CAT IV 600V
- Certificates: CE, cETLus, RoHS
General Characteristics
- Power Supply: 2 × AA
- Product Dimension: 295mm × 73mm × 50mm
- Product Color: Grey + Red
Accessories Included
- Test Probe
- Temperature Probe
- Batteries
- Manual
BRAND: UNI-T
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
