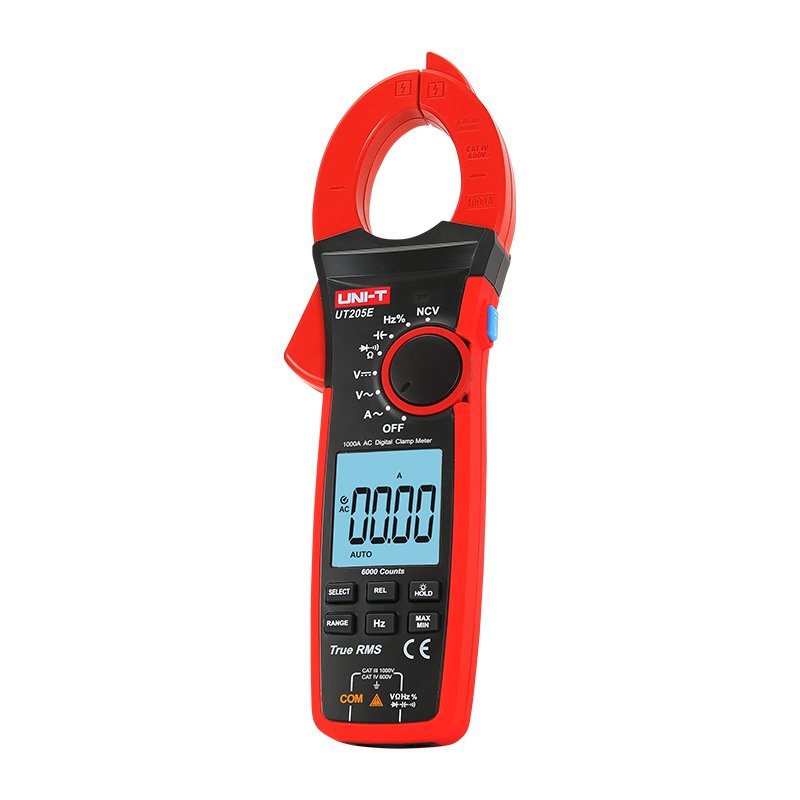

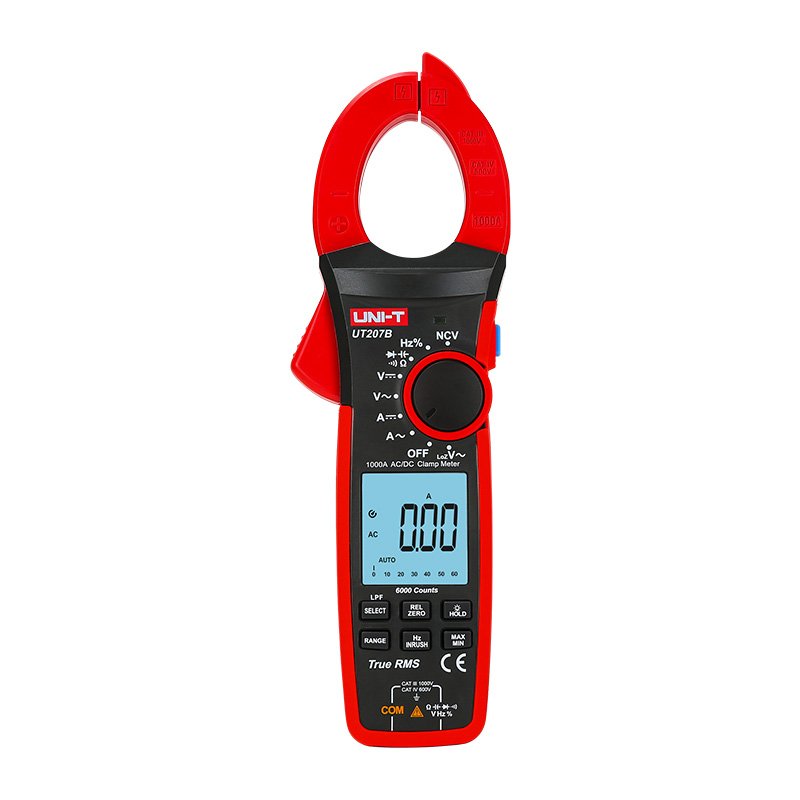

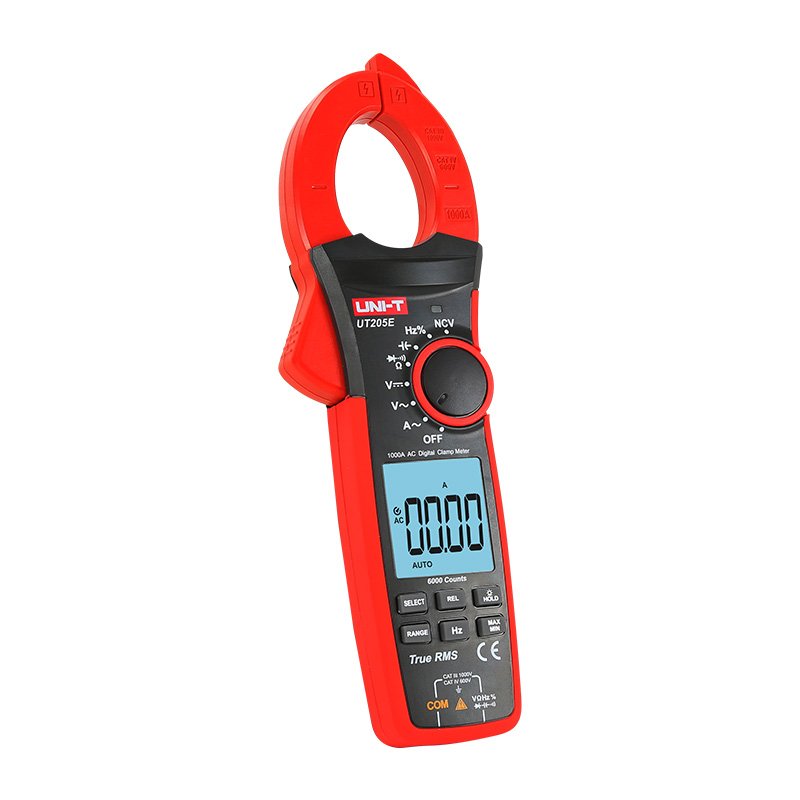

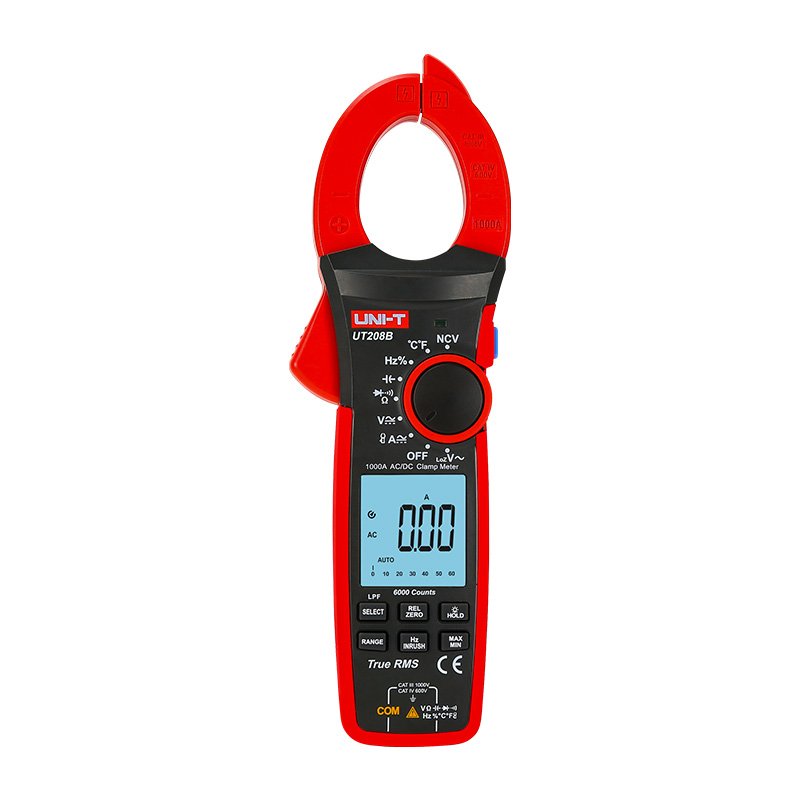

UNI-T Series 1000A True RMS UT200 Digital Clamp Meters
Estimated delivery between Jun 30 to Jul 15
- Description
- Features
- Specifications
- Additional Information
- Store Policies
- Inquiries
Description
UNI-T Series 1000A True RMS UT200 Digital Clamp Meters are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current modefor capturing transient current. The UT206B and UT208B also feature high-precision temperature measurement with 0.1 °C resolution, and can be equipped with a flexible current probe toextend the AC current measurement range to 3000A.
Models in UT200 series: UT205E, UT206B, UT207B, UT208B
Features of UNI-T Series 1000A True RMS UT200 Digital Clamp Meters
Certifications: CE, UKCA, cETLus
● Flashlight button: Short press this button to turn on/off the flashlight
● NCV Multi-Segment Display and audio/visual alarm
● True RMS/Auto backlight
● NCV/Function retention
UNI-T Series 1000A True RMS UT200 Digital Clamp Meters Technical Specifications
AC Current (A)
- 1000A
- Accuracy:
- UT205E: ±(2% + 5)
- UT206B: ±(2% + 5)
- UT207B: ±(2% + 5)
- UT208B: ±(2% + 5)
DC Current (A)
- 1000A
- Accuracy:
- UT207B: ±(2% + 5)
- UT208B: ±(2% + 5)
AC Current Frequency Response
- UT205E: 50Hz ~ 60Hz
- UT206B: 50Hz ~ 60Hz
- UT207B: 40Hz ~ 400Hz
- UT208B: 40Hz ~ 400Hz
Inrush Current (A)
- 1000A
- Accuracy:
- UT206B: ±(10% + 10)
- UT207B: ±(10% + 10)
- UT208B: ±(10% + 10)
AC Voltage (V)
- 1000V
- Accuracy: ±(1.2% + 3)
DC Voltage (V)
- 1000V
- Accuracy: ±(0.5% + 5)
Low Pass Filter (LPF ACV)
- 1000V
- Accuracy:
- UT206B: ±(2% + 5)
- UT207B: ±(2% + 5)
- UT208B: ±(2% + 5)
AC Voltage Frequency Response
- 40Hz ~ 400Hz
LoZ AC Voltage
- 1000V
- Accuracy:
- UT206B: ±(2% + 5)
- UT207B: ±(2% + 5)
- UT208B: ±(2% + 5)
Resistance
- 60MΩ
- Accuracy: ±(1% + 2)
Capacitance
- 60mF
- Accuracy: ±(4% + 5)
Temperature
- -40°C ~ 1000°C
- Accuracy:
- UT206B: ±(1% + 2)
- UT208B: ±(1% + 2)
- -40°F ~ 1832°F
- Accuracy:
- UT206B: ±(1% + 4)
- UT208B: ±(1% + 4)
Low Voltage Frequency (Hz)
- 10Hz ~ 1MHz
- Accuracy: ±(0.1% + 3)
Duty Cycle (%)
- 10% ~ 90%
- Accuracy: ±(2.6% + 7)
Features
- Analog Bar:
- UT206B: 31
- UT207B: 31
- UT208B: 31
- Flexible Current Probe (Optional):
- UT206B: Supports up to 3000A
- UT208B: Supports up to 3000A
- Zero Mode:
- UT207B: Yes
- UT208B: Yes
- Display Count: 6000
- Jaw Opening: 42 mm
General Characteristics
- Power Supply: 3 × 1.5V R03 Batteries
- Display Size: 43 × 45 mm
- Product Net Weight:
- UT205E / UT206B: 465 g
- UT207B / UT208B: 420 g
- Product Dimensions: 272 × 81 × 43.5 mm
Accessories Included
- Test Leads
- Batteries
- English Manual
- Point Contact Temperature Probe (UT206B & UT208B)
Packaging Information
- Individual Packing: Gift Box, Carrying Bag
- Standard Quantity per Carton:
- UT205E / UT206B / UT207B: 10 pcs
- UT208B: 5 pcs
- Carton Dimensions:
- UT205E / UT206B / UT207B: 355 × 330 × 315 mm
- UT208B: 355 × 330 × 165 mm
- Carton Gross Weight:
- UT205E / UT206B / UT207B: About 7.1 kg
- UT208B: About 4.5 kg
BRAND: UNI-T
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
Import Duties : Applicable
