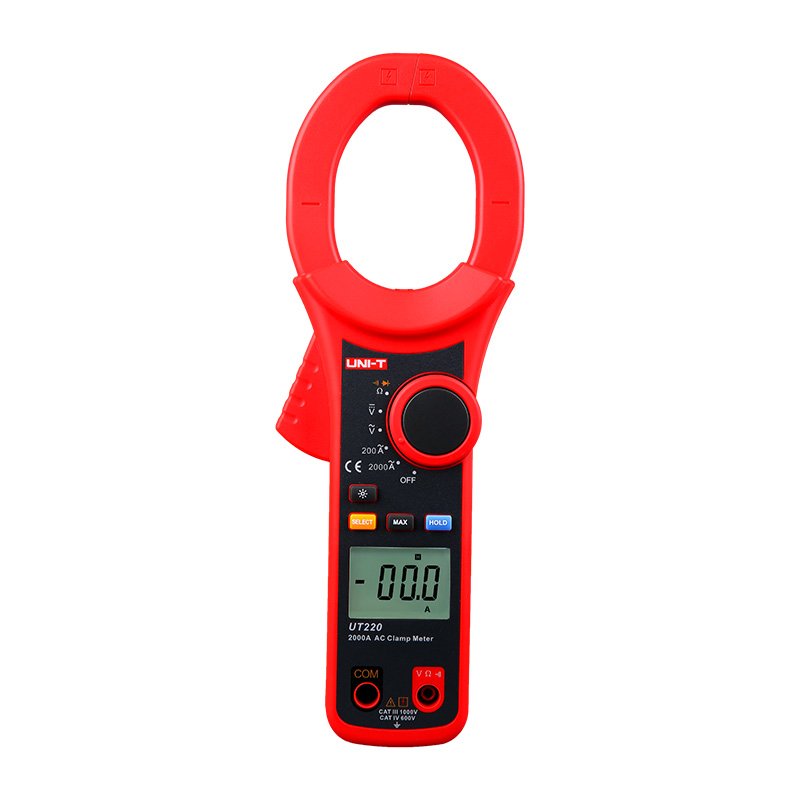

UNI-T Series 2000A UT220 Digital Clamp Meters
Estimated delivery between Jun 30 to Jul 15
- Description
- Features
- Specifications
- Applications
- Additional Information
- Store Policies
- Inquiries
Description
UNI-T Series 2000A UT220 Digital Clamp Meters. This series ensures stable performance, safety, and reliability for measuring up to 2000A AC (and DC for UT221) current. It is designed with over-load protection for all ranges, perfect for all professionals measuring currents up to 2000A (2500A for UT222).
Models in UT220 series: UT220, UT221, UT222
Features of UNI-T Series 2000A UT220 Digital Clamp Meters
Certifications: CE, UKCA, cETLus
● Auto range
● Continuity buzzer
● MAX/MIN
● Diode
● Data hold
● Low battery indication
Technical Specifications
AC Current Measurement
- UT220: 2000A, Accuracy: ±(2.5%+5)
- UT221: 2000A, Accuracy: ±(2.5%+5)
- UT222: 2500A, Accuracy: ±(1.5%+5)
DC Current Measurement
- UT221: 2000A, Accuracy: ±(2.5%+5)
- UT222: 2500A, Accuracy: ±(1.5%+5)
AC Voltage Measurement
- UT220: 750V, Accuracy: ±(1.2%+5)
- UT221: 750V, Accuracy: ±(1.2%+5)
- UT222: 1000V, Accuracy: ±(1%+3)
DC Voltage Measurement
- UT220: 1000V, Accuracy: ±(0.8%+1)
- UT221: 1000V, Accuracy: ±(0.8%+1)
- UT222: 1000V, Accuracy: ±(0.5%+2)
Resistance Measurement
- UT220: 66MΩ, Accuracy: ±(1%+2)
- UT221: 20MΩ, Accuracy: ±(1%+2)
- UT222: 60MΩ, Accuracy: ±(1%+2)
Capacitance Measurement
- UT222: 60mF, Accuracy: ±(3%+5)
Frequency Measurement
- UT221: 20MHz, Accuracy: ±(0.1%+3)
- UT222: 60MHz, Accuracy: ±(0.1%+3)
Temperature Measurement (UT222)
- -40°C to 1000°C: ±(1%+10)
- -40°F to 1832°F: ±(1%+18)
Features
- Display Count: UT220 (2000), UT221 (6000), UT222 (6000)
- Auto Range
- Diode Test

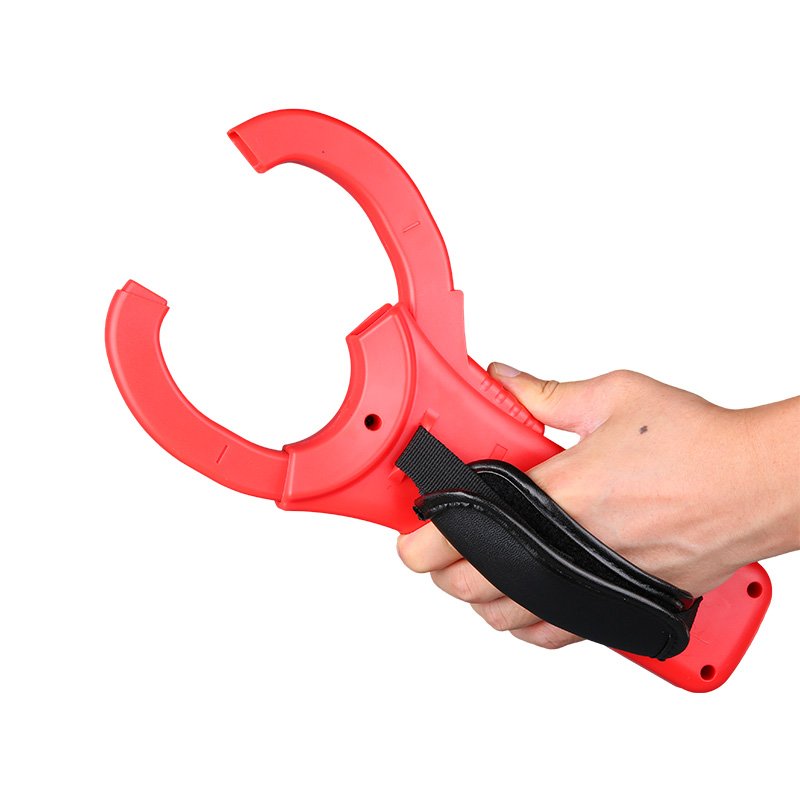

- 63mm Jaw Opening
- Continuity Buzzer
- Data Hold / MAX
- Full Icon Display
- Low Battery Indication
- Input Impedance ≥10MΩ
Additional Features
UT221 & UT222
- True RMS
- Duty Cycle Measurement
- Low Pass Filter (LPF)
- Inrush Current Measurement
- Relative Mode
- MIN / I-OUT Function
UT222
- AC+DC Measurement
- Data Storage (1000 Records)
- Temperature Measurement
General Characteristics
- Power Supply: 9V Battery (6F22)
- Display Size: 43mm × 30mm
- Product Color: Red and Grey
- Product Size: 298mm × 107mm × 47mm
Product Weight
- UT220: 389g
- UT221: 726g
- UT222: 726g
Standard Accessories
- UT220: Test Leads
- UT221: Test Leads, Output Cable
- UT222: Test Leads, Output Cable, Thermocouple
- UT220 AC Voltage Measurement
- UT220 AC Current Measurement
- UT221 Voltage Measurement
- UT221 Current Measurement
BRAND: UNI-T
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
Import Duties : Applicable
