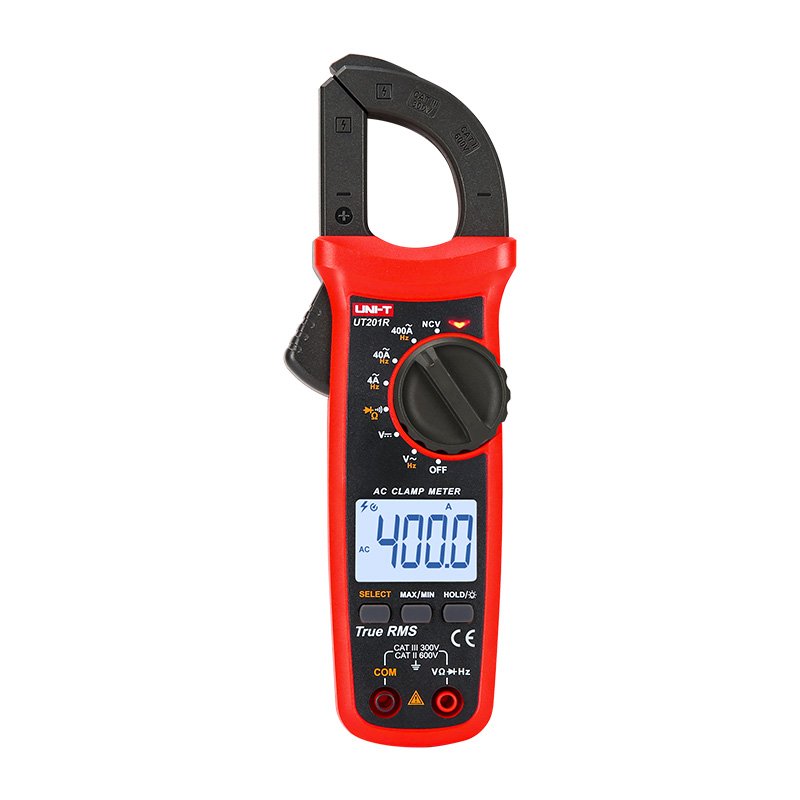

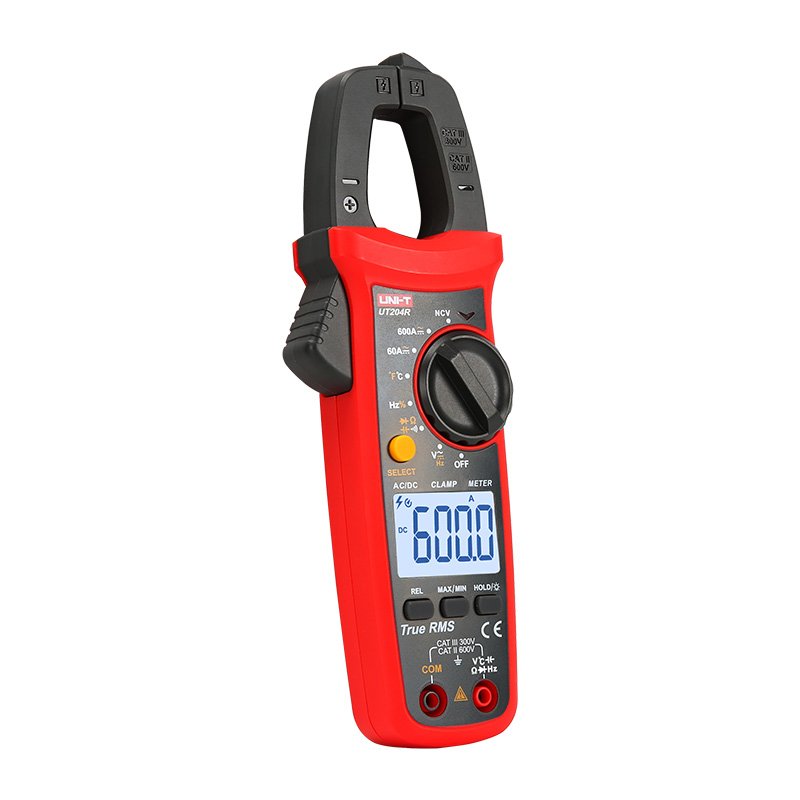

UNI-T Series 400A/600A UT200R Digital Clamp Meters
Estimated delivery between Jun 30 to Jul 15
- Description
- Features
- Specifications
- Applications
- Additional Information
- Store Policies
- Inquiries
Description
UNI-T Series 400A/600A UT200R Digital Clamp Meters are designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety and high accuracy. These meters can be used to measure high-voltage frequency, temperature, AC/DC current, etc.
Models in UT200R Series: UT201R, UT202R, UT202F, UT203R, UT204R
Features of UNI-T Series 400A/600A UT200R Digital Clamp Meters
Certifications: CE, UKCA, cETLus
● True RMS
● LCD backlight
● Larger screen and display digits
● 60mF large capacitance measurement (202F/204R)
Technical Specifications
AC Current (A)
UT201R / UT202R
- Range: 0.04 ~ 400A
- Accuracy: ±(2% + 10)
UT202F
- Range: 0.06 ~ 600A
- Accuracy: ±(2% + 10)
UT203R
- Range: 0.04 ~ 400A
- Accuracy: ±(2% + 5)
UT204R
- Range: 0.06 ~ 600A
- Accuracy: ±(2% + 5)
AC Current Frequency (Hz)
- Range: 50Hz ~ 100Hz
- Accuracy:
- UT201R: ±(1% + 5)
- UT202R: ±(1% + 5)
- UT202F: ±(1% + 5)
DC Current (A)
UT203R
- Range: 0.04 ~ 400A
- Accuracy: ±(2% + 5)
UT204R
- Range: 0.06 ~ 600A
- Accuracy: ±(2% + 5)
AC Voltage (V)
- Range: 600V
- Accuracy:
- UT201R: ±(0.8% + 5)
- UT202R: ±(0.8% + 5)
- UT202F: ±(0.8% + 5)
- UT203R: ±(0.8% + 5)
- UT204R: ±(0.8% + 5)
AC Voltage Frequency (Hz)
UT201R / UT202R / UT202F
- Range: 10Hz ~ 10kHz
- Accuracy: ±(1% + 5)
UT203R / UT204R
- Range: 10Hz ~ 60kHz
- Accuracy: ±(0.5% + 2)
DC Voltage (V)
- Range: 600V
- Accuracy:
- UT201R: ±(0.5% + 2)
- UT202R: ±(0.5% + 2)
- UT202F: ±(0.5% + 2)
- UT203R: ±(0.5% + 2)
- UT204R: ±(0.5% + 2)
Resistance (Ω)
UT202F
- Range: 60MΩ
- Accuracy: ±(0.8% + 2)
UT204R
- Range: 60MΩ
- Accuracy: ±(0.8% + 2)
Capacitance (F)
UT202R
- Range: 4mF
- Accuracy: ±(4% + 5)
UT202F
- Range: 60mF
- Accuracy: ±(4% + 5)
UT204R
- Range: 60mF
- Accuracy: ±(4% + 5)
UT203R
- Range: 40mF
- Accuracy: ±(4% + 5)
Temperature (℃)
UT202R
- Range: -40℃ ~ 1000℃
- Accuracy: ±(1.5% + 5)
UT204R
- Range: -40℃ ~ 1000℃
- Accuracy: ±(1.5% + 5)
Frequency (Hz)
UT202F
- Range: 10Hz ~ 10MHz
- Accuracy: ±(1% + 5)
UT203R
- Range: 10Hz ~ 10MHz
- Accuracy: ±(0.1% + 4)
UT204R
- Range: 10Hz ~ 10MHz
- Accuracy: ±(0.1% + 4)
Features
- Display Count:
- UT201R: 4000
- UT202R: 4000
- UT202F: 6000
- UT203R: 4000
- UT204R: 6000
- Auto Range: Yes
- Jaw Opening: 28mm
- True RMS: Yes
- NCV Detection: Yes
- Continuity Test: Yes
- Diode Test: Yes
- MAX/MIN Recording: Yes
- Data Hold: Yes
- Low Battery Indication: Yes
- Auto Power Off: Yes
- Relative Mode:
- UT202R: Yes
- UT202F: Yes
- UT203R: Yes
- UT204R: Yes
- Zero Mode:
- UT203R: Yes
- UT204R: Yes
General Characteristics
- Power Supply: 1.5V Battery (R03) × 2
- Display Size: 37 × 25 mm
- Product Color: Red and Grey
- Product Net Weight:
- UT201R / UT202R / UT202F: 248g
- UT203R / UT204R: 235g
- Product Dimensions: 215 × 63 × 36 mm
Standard Accessories
- Batteries
- Test Leads
- Thermocouple (UT202R / UT204R)
Standard Individual Packing
- Gift Box
- Carrying Bag
- English Manual
Packaging Information
- Standard Quantity per Carton: 40 pcs
- Standard Carton Dimensions: 485 × 295 × 385 mm
Standard Carton Gross Weight
- UT201R: 16.6 kg
- UT202R: 17.1 kg
- UT203R: 16.1 kg
- UT202F: 16.7 kg
- UT204R: 16.7 kg
- Industrial Electricity
- Residential Electricity
- Air Conditioning
- Automobile
BRAND: UNI-T
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
