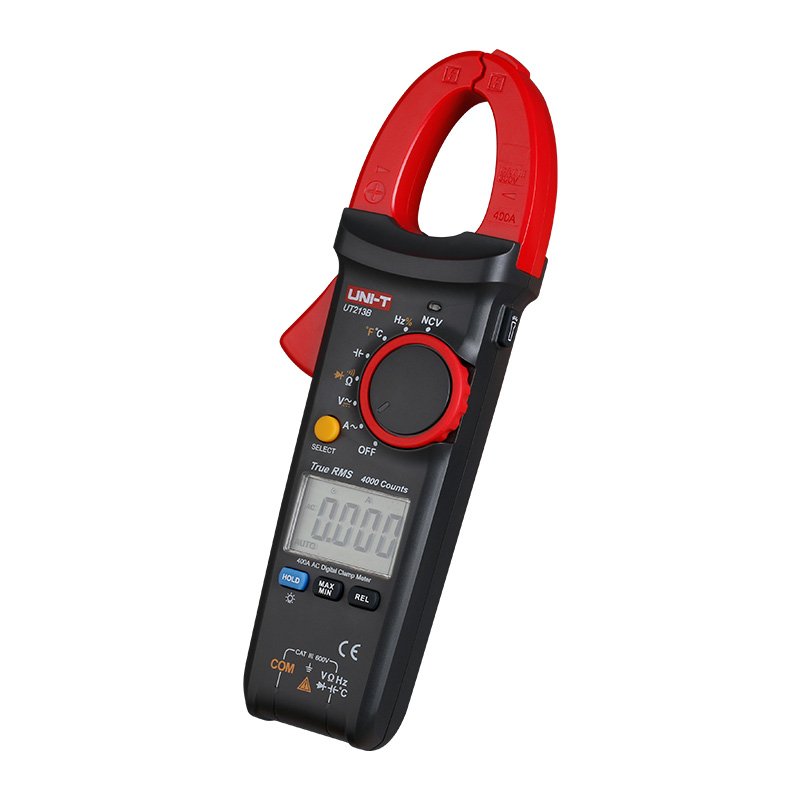

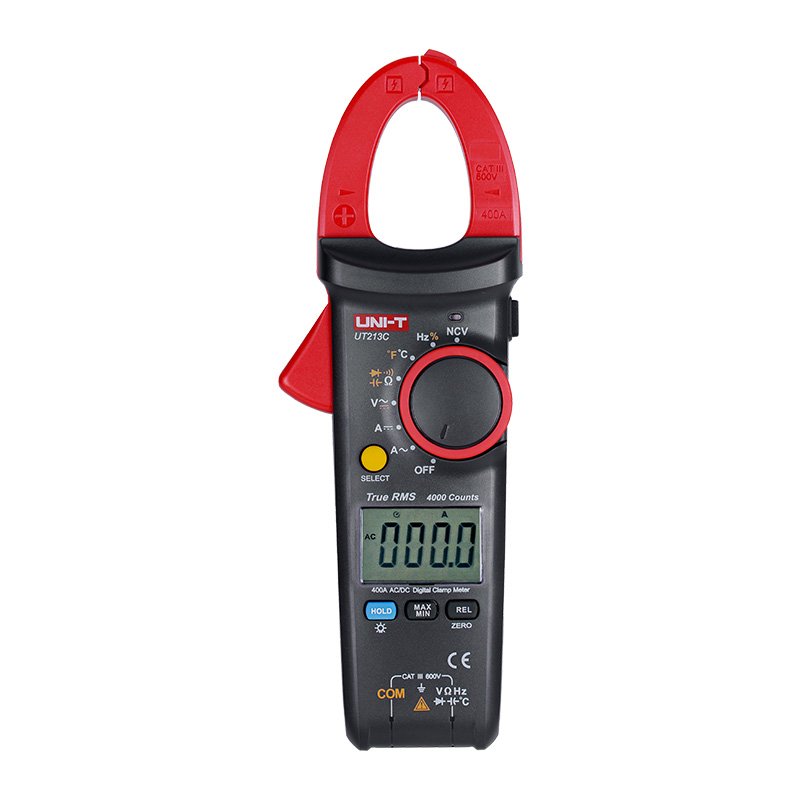

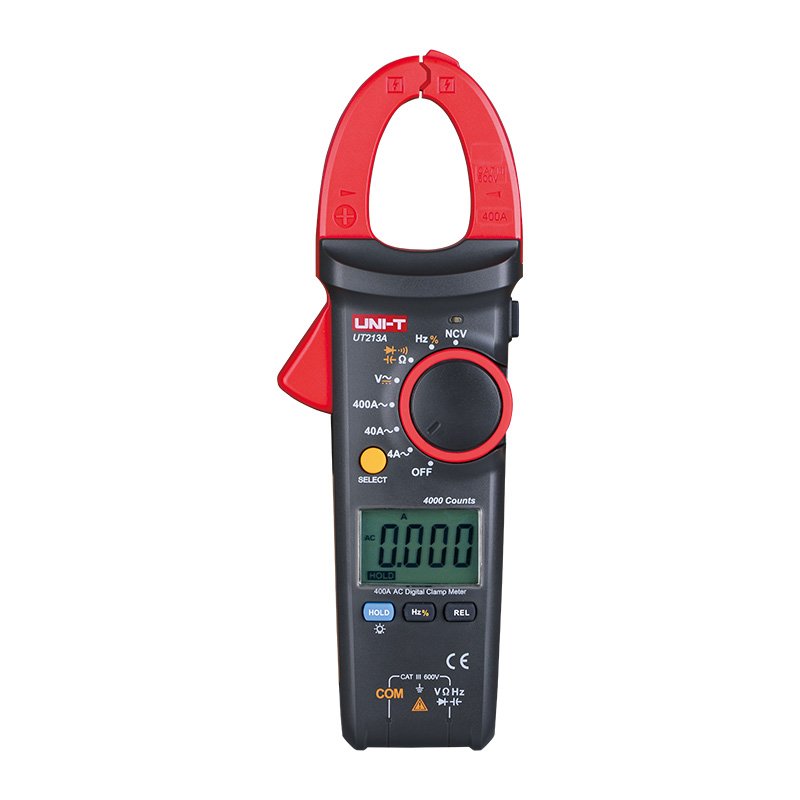

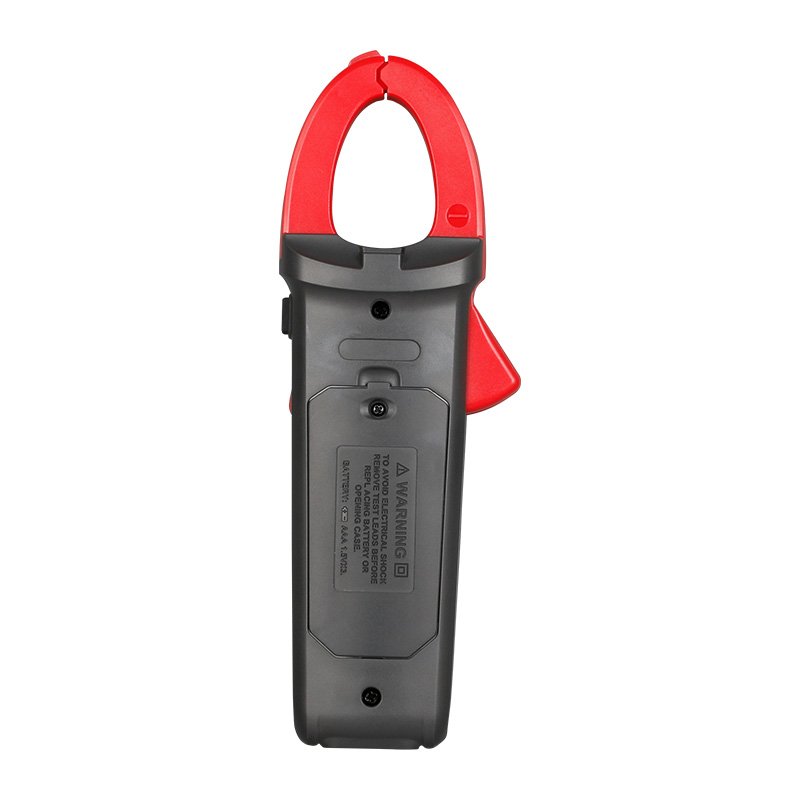

UNI-T Series 400A UT213 Digital Clamp Meters
Estimated delivery between Jun 30 to Jul 15
- Description
- Features
- Specifications
- Additional Information
- Store Policies
- Inquiries
Description
UNI-T Series 400A UT213 Digital Clamp Meters with CAT III 600V safety standards. These meters are designed for electricians and HVAC/R technicians. The built-in flashlight also makes these meters useful tools when working in dark environments.
Models in UT213 series: UT213A, UT213B, UT213C
Features of UNI-T Series 400A UT213 Digital Clamp Meters
Certifications: CE, UKCA, cETLus
● Auto range
● Relative mode
● NCV/continuity buzzer
● Data hold/LCD backlight
● Flashlight
● Low battery indication: ≤3.6V
● Input protection
● Auto power off
UNI-T Series 400A UT213 Digital Clamp Meters Technical Specifications
AC Current (A)
- 400A
- Accuracy:
- UT213A: ±(1.8% + 9)
- UT213B: ±(1.8% + 9)
- UT213C: ±(2.5% + 5)
DC Current (A)
- 400A
- Accuracy:
- UT213C: ±(2% + 3)
AC Voltage (V)
- 600V
- Accuracy: ±(1.2% + 5)
DC Voltage (V)
- 600V
- Accuracy:
- UT213A: ±(0.8% + 1)
- UT213B: ±(0.8% + 1)
- UT213C: ±(0.8% + 3)
Resistance
- 40MΩ
- Accuracy: ±(1% + 2)
Capacitance
- 100μF
- Accuracy:
- UT213A: ±(4% + 5)
- 40mF
- Accuracy:
- UT213B: ±(4% + 5)
- UT213C: ±(4% + 5)
Frequency
- 10Hz ~ 1MHz
- Accuracy: ±(0.1% + 4)
Temperature
- -40°C ~ 1000°C
- Accuracy:
- UT213B: ±(1% + 3)
- UT213C: ±(1% + 3)
- -40°F ~ 1832°F
- Accuracy:
- UT213B: ±(1% + 6)
- UT213C: ±(1% + 6)
Features
- Display Count: 4000
- Auto Range: Yes
- Jaw Opening: 30 mm
- True RMS:
- UT213B: Yes
- UT213C: Yes
- Diode Test:
- UT213A: Around 1.5V
- UT213B: Around 3.0V
- UT213C: Around 3.0V
- NCV: Yes
- Data Hold: Yes
- Relative Mode: Yes
- MAX/MIN:
- UT213B: Yes
- UT213C: Yes
- LCD Backlight: Yes
- Flashlight: Yes
- Auto Power Off: Yes
- Continuity Buzzer: Yes
- Low Battery Indication: Yes
- Input Protection: Yes
- Input Impedance for DCV: Yes
General Characteristics
- Power Supply: 3 × 1.5V R03 Batteries
- Display Size: 38 × 24 mm
- Product Color: Red and Grey
- Product Net Weight:
- UT213A / UT213B: 280 g
- UT213C: 231.7 g
- Product Dimensions: 220 × 75 × 40 mm
Accessories Included
- Batteries
- Test Leads (UT213B / UT213C)
- Point Contact Temperature Probe (UT213B / UT213C)
- English Manual
- Carrying Bag
Packaging Information
- Individual Packing: Gift Box, Carrying Bag, English Manual
- Standard Quantity per Carton: 40 pcs
- Carton Dimensions: 485 × 345 × 385 mm
- Carton Gross Weight:
- UT213A: 18.2 kg
- UT213B: 19.6 kg
- UT213C: 19.4 kg
BRAND: UNI-T
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
Import Duties : Applicable
