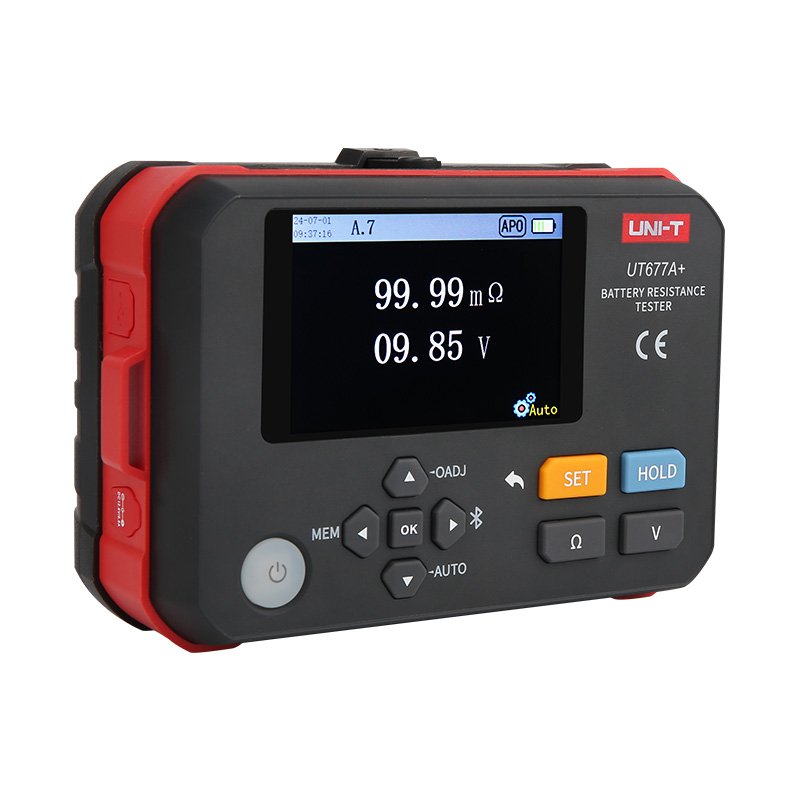

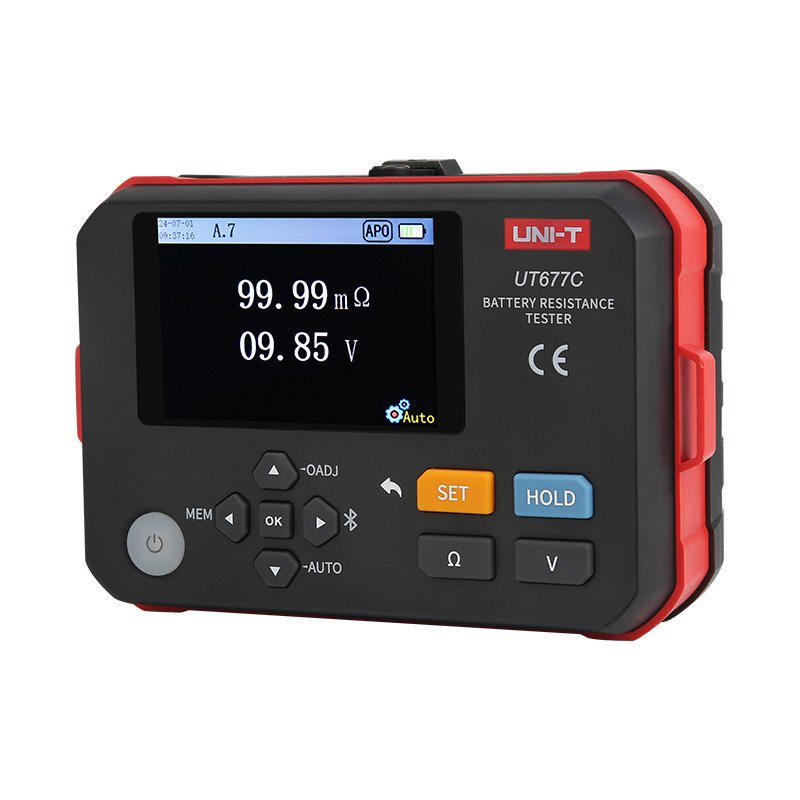

UNI-T UT677A+/UT677C Internal Resistance Tester
Original price was: ₹62,538.82.₹61,161.76Current price is: ₹61,161.76.
Estimated delivery between Jun 30 to Jul 15
- Description
- Features
- Specifications
- Additional Information
- Store Policies
- Inquiries
Description
The UNI-T UT677 series are devices for assessing the condition of rechargeable batteries, including lead-acid and lithium types, by measuring their internal resistance and voltage. Using the AC four-terminal method, it accurately measures internal resistance without interference from lead resistance. Features include data storage, retrieval, alarms, auto shut-off, and strong anti-interference, making it essential for battery production, installation, and maintenance.
Features of UNI-T UT677 series (UT677A+/UT677C) Battery inernal resistance tester
Certifications: CE
1. Battery internal resistance: 0-3Ω(4 ranges; 1μΩ);
2. Voltage(UT677A+): 0-70V;
3. Voltage(UT677C): 0-120V;
4. Manual & auto measurement;
5. PC software and Bluetooth APP supported;
6. Rechargeable Lithium Battery: 2600mAh;
7. Auto power off and low battery indication;
8. Fast response (200ms); test time: 2s
9. Data hold and storage (500 set);
10. CE certificated
Technical Specifications
Battery Internal Resistance
UT677A+ / UT677C
- 0.000mΩ~3mΩ
- Accuracy: ±1% fs. ±20 dgt.
- Resolution: 1μΩ
- 3.000mΩ~30mΩ
- Accuracy: ±0.5% fs. ±15 dgt.
- Resolution: 10μΩ
- 3.000mΩ~300mΩ
- Accuracy: ±0.5% fs. ±15 dgt.
- Resolution: 100μΩ
- 300mΩ~3Ω
- Accuracy: ±0.5% fs. ±15 dgt.
- Resolution: 1mΩ
Battery Voltage
UT677A+
- 0.000V~±7V
- Accuracy: ±0.2% fs. ±10 dgt.
- Resolution: 1mV
- 7V~±71.00V
- Accuracy: ±0.2% fs. ±10 dgt.
- Resolution: 10mV
UT677C
- 0.000V~±7V
- Accuracy: ±0.2% fs. ±10 dgt.
- Resolution: 1mV
- 7V~100.00V
- Accuracy: ±0.2% fs. ±10 dgt.
- Resolution: 10mV
- 100V~120.00V
- Accuracy: ±0.2% fs. ±10 dgt.
- Resolution: 100mV
Features
- Function:
- Battery Internal Resistance Measurement
- Battery Voltage Measurement
- Battery Types:
- Lead-acid Battery
- Lithium Battery
- Other Types of Batteries
- Measurement Methods:

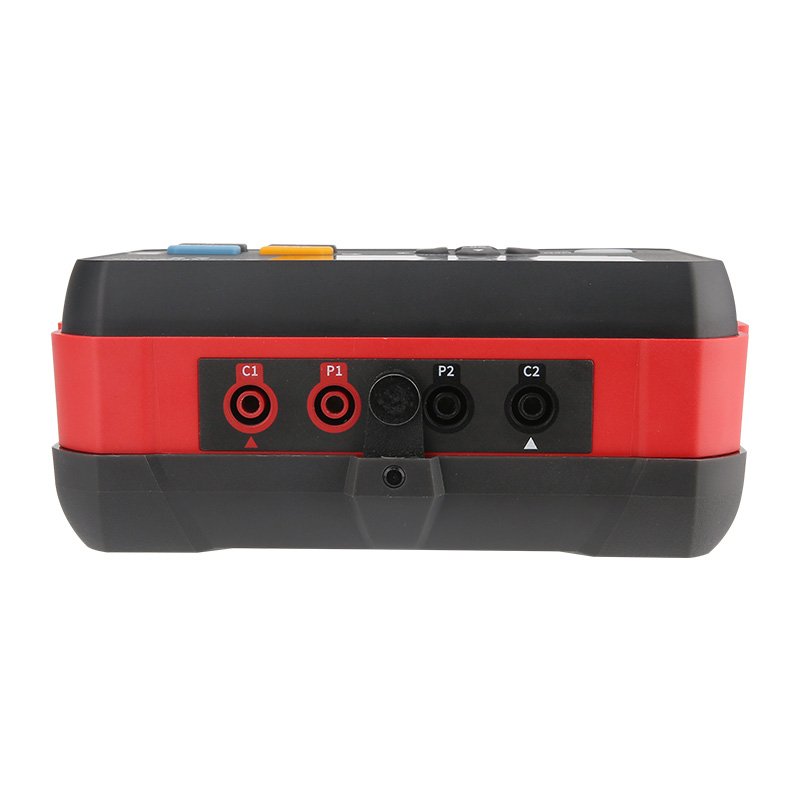

- Internal Resistance: 1kHz AC 4-terminal Test Method
- Open Circuit Terminal Voltage: 3V Max
- Test Current: 2.0mA~200mA (Varying range correspond to varying test currents)
- Refresh Rate: 5 times/s
- Anti Interference: Yes, Automatic Frequency Tuning: 920Hz~1080Hz
- Power Supply: DC 11.1V Lithium Battery 2600mAh
- Max Input Voltage: DC 120V (between positive side and negative side)
- Response Time: 200ms
- Screen: 3.5″ (480 × 320 Color Screen)

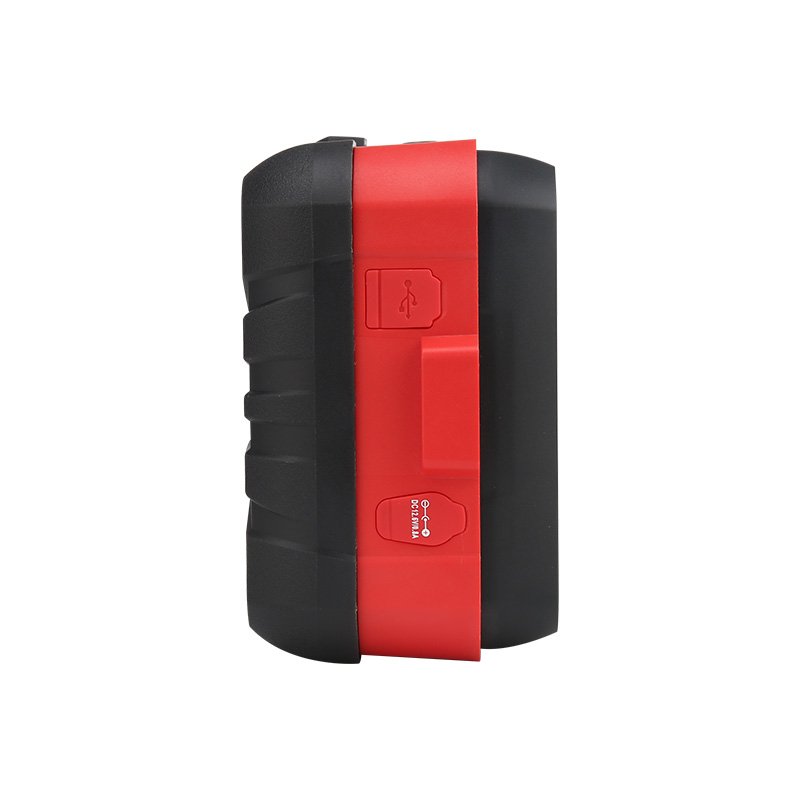

- Data Interface: Type-C, Save Testing Data and Upload to PC
- Bluetooth: Yes
- Data Hold: Auto / Manual Data Hold
- Data Storage: 500 Sets
- Measurement Judgment Function:
- PASS
- WARNING
- FAIL
- Judgment Thresholds Can Be Preset
- Low Battery Indication: Yes, 5 Battery Levels
- Auto Power Off: Yes, Around 15 Minutes
Environmental Specifications
- Accuracy Guaranteed Temperature & Humidity: 23℃ ±5℃, <75%RH
- Working Temperature: -10℃~40℃, Below 80%RH
- Storage Temperature: -20℃~60℃, Below 70%RH
- Puncture Test: AC 3700V/RMS (between circuit and case)
- External Magnetic Field: <40A/m
- Suitable for Safety Regulations: IEC 61010, CE Certificated
General Characteristics
- Meter Dimensions: 170mm × 115mm × 65mm (L × W × H)
- Weight (Meter): 674.0g (Batteries Included)
BRAND: UNI-T
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
