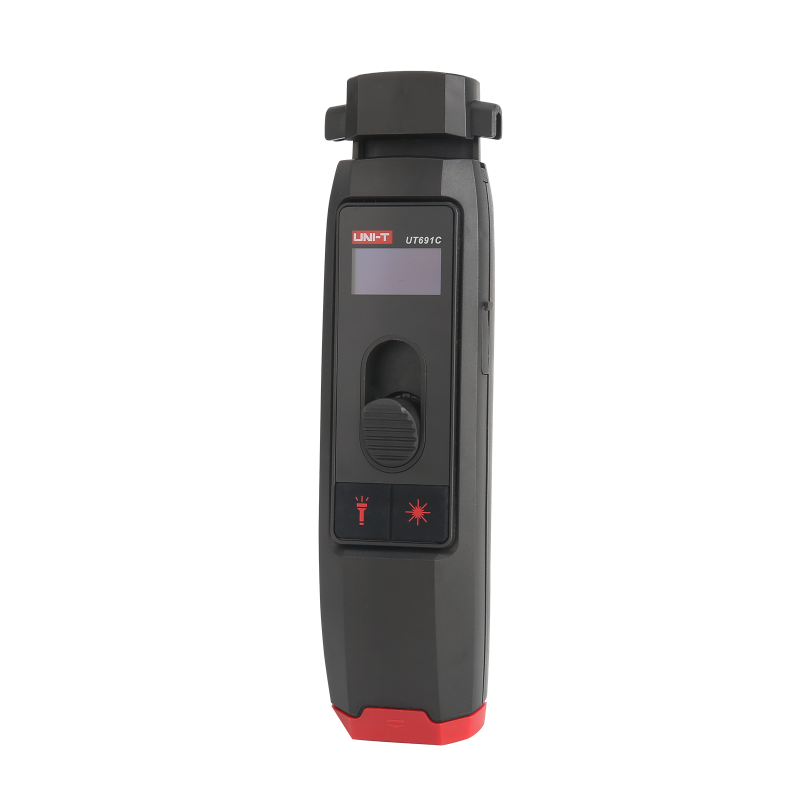

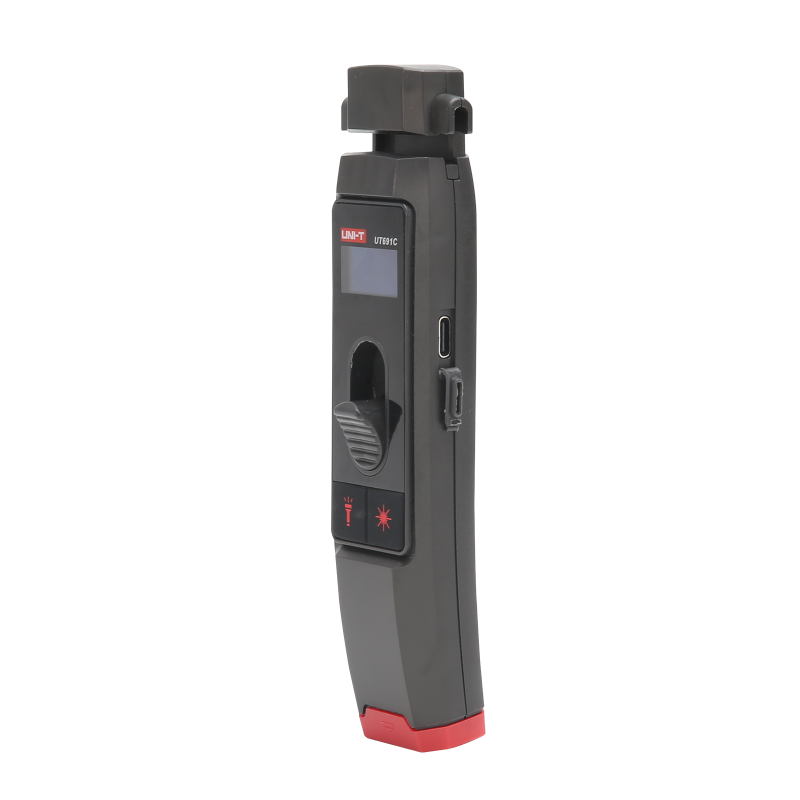

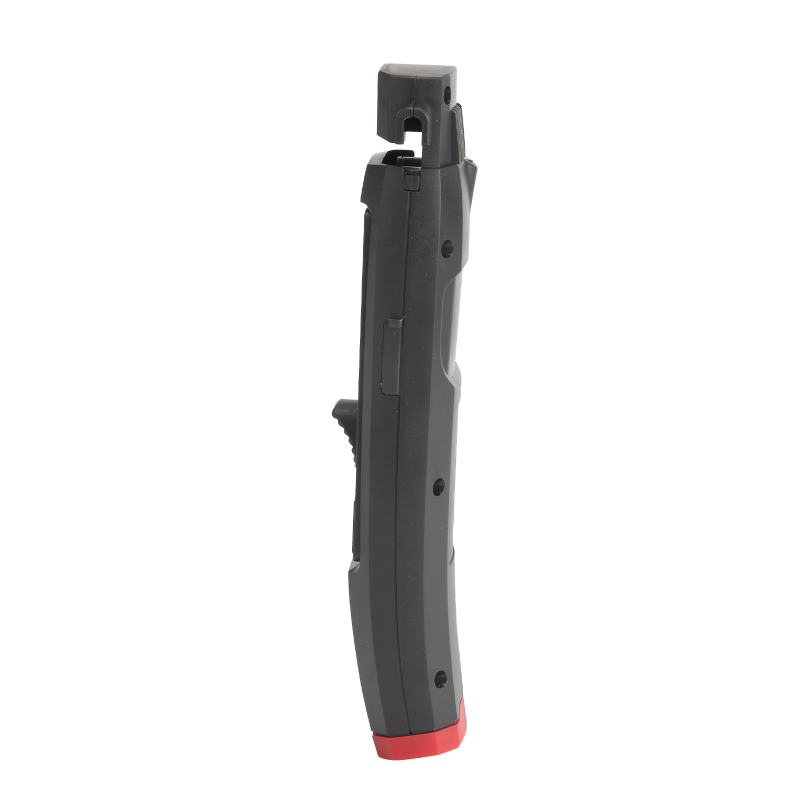

UNI-T UT691C Fiber Optic Identifier
Estimated delivery between Jun 30 to Jul 15
- Description
- Features
- Specifications
- Additional Information
- Store Policies
- Inquiries
Description
UT691C fiber optic identifier adopts non-destructive macro-bend technology to detect optical signals and direction without cutting fibers. It comes with a 4-in-1 adapter, a 10 mW stable VFL for fiber fault locating, and an HD OLED display. Ideal for fiber network maintenance.
Features of UT691C Fiber Optic Identifier
- Non-Destructive Micro-bend Online Testing
- Auto-identifies 3 signal frequencies
- Easy Breakpoint Detection
- Built-in High-Power LED Flashlight
- 4-in-1 universal Fixture
- Mini and Compact
- Lithium battery USB Direct Charging
Model: UT691C
Fiber Types: 250μm / 900μm / 2mm / 3mm Fiber
Wavelength Range: 700nm ~ 1700nm
Direction Identification Range: -40 ~ +10dBm (Optical Source Wavelength: 1550nm)
Frequency Identification Lower Limit: -40dBm
Insertion Loss:
1310nm: < 3dB
1550nm: < 3dB
Fiber Fixture: 4-in-1 Universal Fixture
Detected Frequencies: 270Hz / 1kHz / 2kHz
VFL Wavelength: 650nm ± 20nm
VFL Port: 2.5mm Universal Port
VFL Output Power: 10mW (Solid Light / 2±0.5Hz Flashing)
Charging Port: Type-C
LED Flashlight: Yes
Buzzer Prompt: Yes
Operating Temperature: -10°C ~ 45°C
Storage Temperature: -20°C ~ 45°C
Power Supply: 3.7V 400mAh Lithium Battery
Product Size: 152mm × 41mm × 32mm
Product Weight: About 80g
Standard Accessories:
Optical Fiber Identifier ×1
Gift Box ×1
PE Bag ×1
User Manual ×1
Type-C Charging Cable ×1
Standard Quantity Per Carton: 10pcs
BRAND: UNI-T
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
