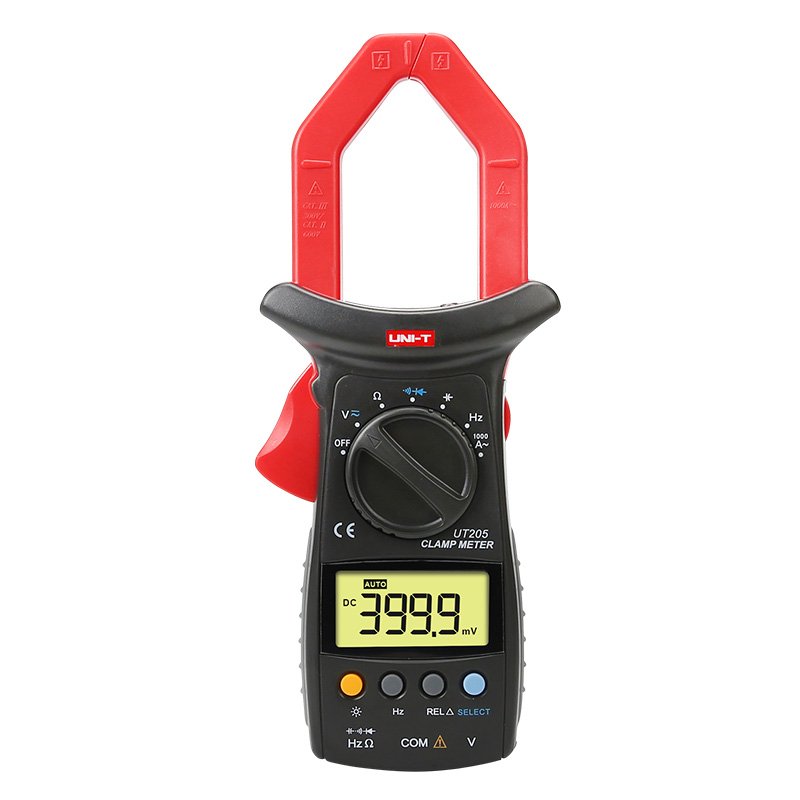

UNI-T 1000A UT205/UT206 Digital Clamp Meters
Estimated delivery between Jun 30 to Jul 15
- Description
- Features
- Specifications
- Additional Information
- Store Policies
- Inquiries
Description
UNI-T 1000A UT205/UT206 Digital Clamp Meters is a low-power, stable, safe and reliable 4000-count AC digital clamp meter. The full range overload protection circuit and unique design make it a special electrical meter with superior performance. The meter is an ideal tool for maintenance in smelting, manufacturing, petroleum, chemical and other industries.
Models: UT205, UT206
Features of UT205/UT206 1000A Digital Clamp Meters
Certificates: CE, EN:61010-1, EN:61326-1, EN:61010-2-032
● Display count: 4000
● Auto range
● Jaw opening: 40mm
● CAT II 600V/CAT III 300V
UNI-T 1000A UT205/UT206 Digital Clamp Meters Technical Specifications
AC Current (A)
- 400A / 1000A
- Accuracy: ±(1.5% + 5)
- 400A / 1000A (≥800A)
- Accuracy: ±(3% + 5)
AC Voltage (V)
- 4V / 40V / 400V / 600V
- Accuracy: ±(1.2% + 5)
DC Voltage (V)
- 400mV / 4V / 40V / 400V / 600V
- Accuracy: ±(0.8% + 1)
Resistance
- 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
- Accuracy: ±(1% + 2)
Frequency (Hz)
- 10Hz ~ 10MHz
- Accuracy: ±(0.1% + 3)
Temperature (UT206 Only)
- -40°C ~ 0°C
- Accuracy: ±(3% + 4)
- 0°C ~ 400°C
- Accuracy: ±(1% + 3)
- 400°C ~ 1000°C
- Accuracy: ±(2% + 10)
Features
- Display Count: 3999
- Auto Range: Yes
- Jaw Opening: 40 mm
- Duty Cycle (0.1% ~ 99.9%): UT205 Only
- Diode Test: Yes
- Auto Power Off: Yes
- Continuity Buzzer: Yes
- Low Battery Indication: Yes
- Data Hold: Yes
- Relative Mode: UT206 Only
- LCD Backlight: Yes
- Flashlight: Yes
- Full Icon Display: Yes
- Input Impedance for DCV: ≥10MΩ
General Characteristics
- Power Supply: 9V Battery (6F22)
- LCD Size: 56.4 × 37 mm
- Product Color: Red and Grey
- Product Net Weight: 522 g
- Product Dimensions: 106.4 × 52 × 257 mm
Accessories Included
- Battery
- Test Leads
- Alligator Clips
- Point Contact Temperature Probe (UT206 Only)
Packaging Information
- Individual Packing: Tool Box, Gift Box
- Standard Quantity per Carton: 20 pcs
- Carton Dimensions: 598 × 375 × 485 mm
- Carton Gross Weight: 27.3 kg
BRAND: UNI-T
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
