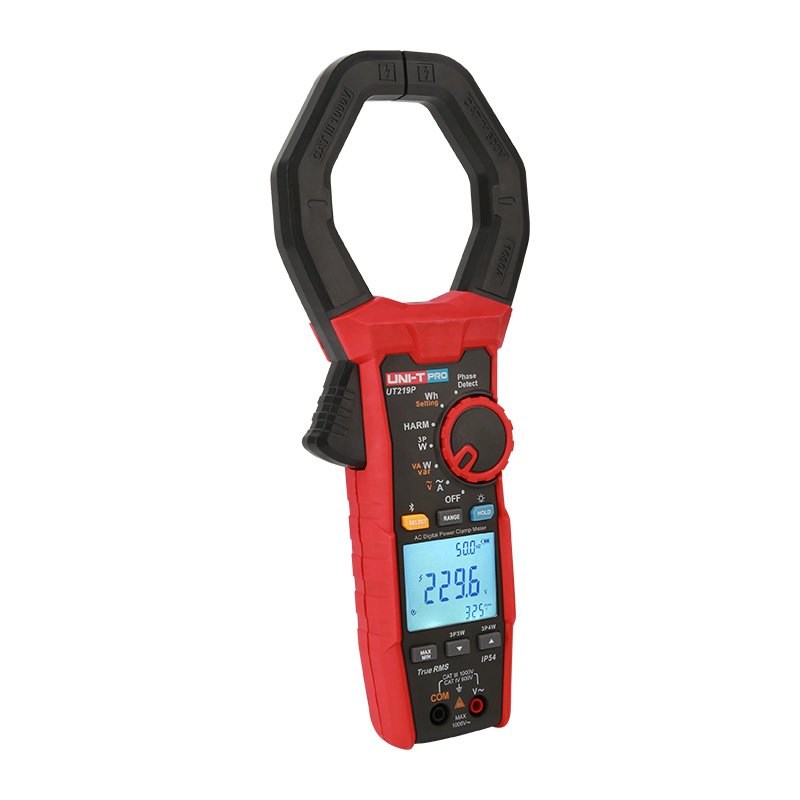

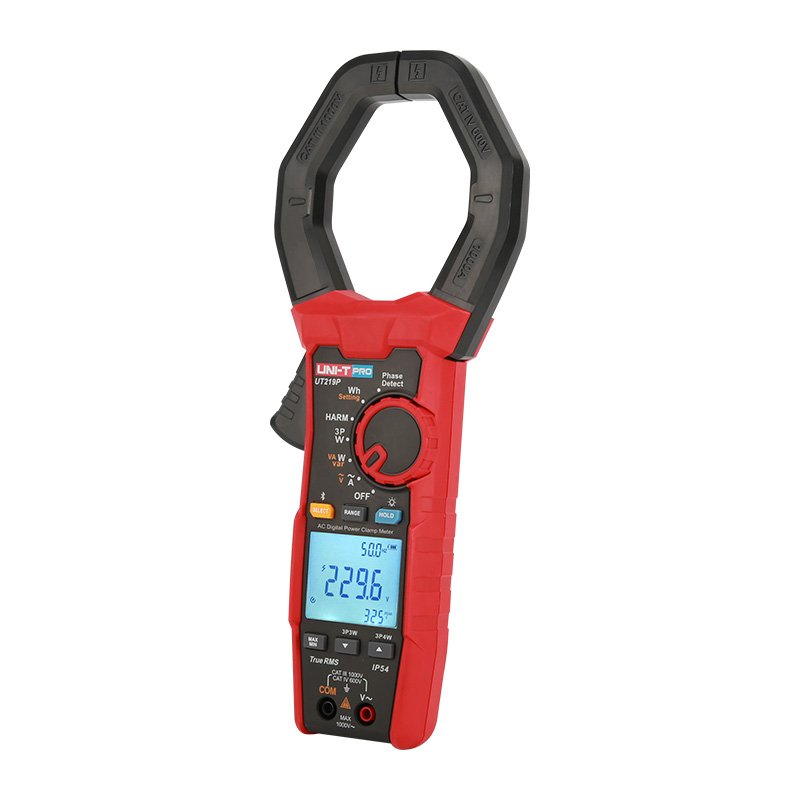

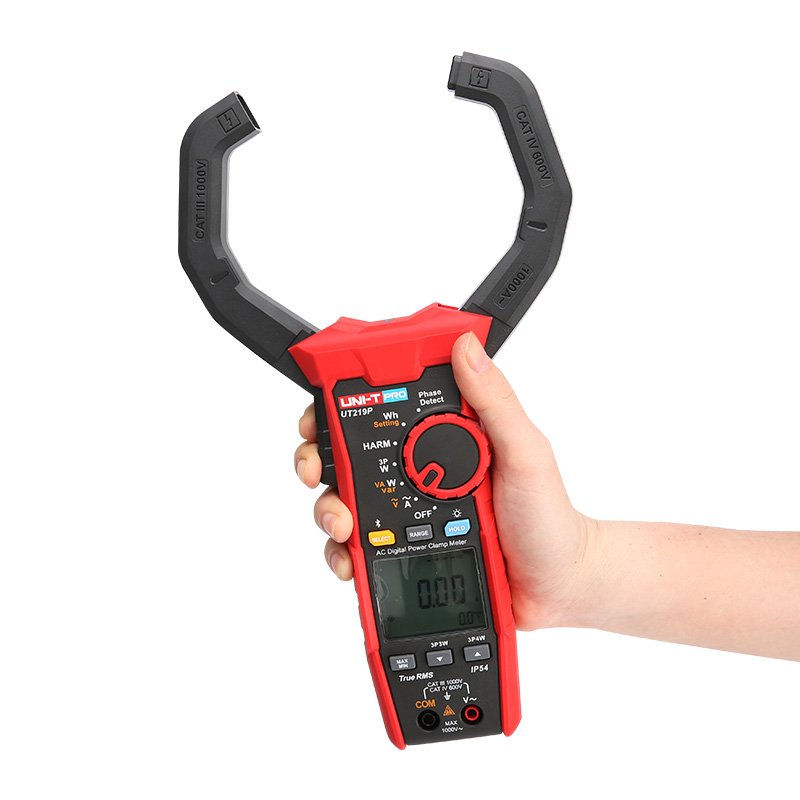

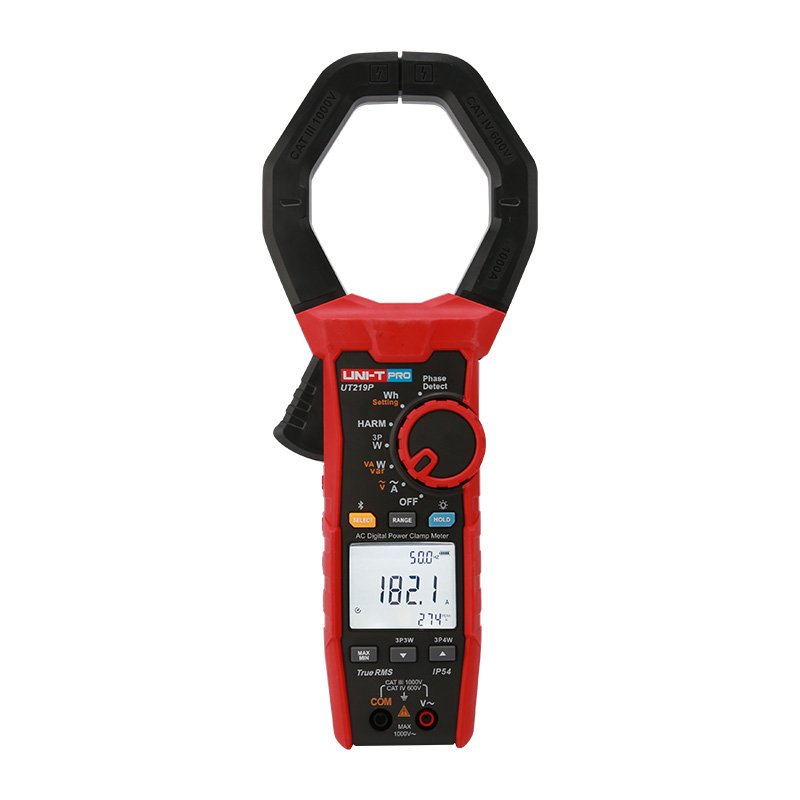

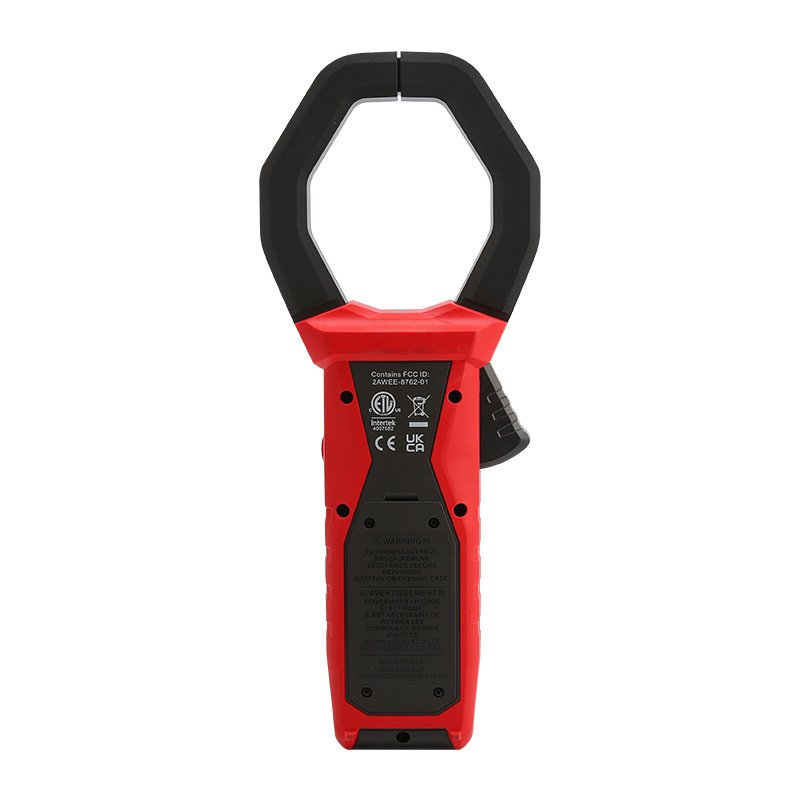

UNI-T AC Digital Power UT219P Clamp Meter
Estimated delivery between Jun 30 to Jul 15
- Description
- Features
- Specifications
- Additional Information
- Store Policies
- Inquiries
Description
UNI-T AC Digital Power UT219P Clamp Meter is an intelligent, handheld, and stable power and harmonics clamp meter, with the functions of a digital ammeter and power meter. It can measure harmonics, 3-phase unbalanced voltage, AC voltage, AC current, power, power factor, and more.
It is widely used in photovoltaic power stations, motor manufacturing, and power/harmonic measurement of electrical equipment and distribution cabinets in residential enterprises.
Features of UNI-T AC Digital Power UT219P Clamp Meter
- Certifications: CE, ETL, REACH, FCC
- AC current measurement up to 1000A
- AC voltage measurement up to 1000V
- AC and DC Peak value measurement
- Three-phase power measurement up to 3000kW
- Harmonic, THD, Power Factor, and Phase Sequence measurement
- Single-phase power measurement
- Large jaw opening (up to 75mm diameter conductor)
- True RMS measurement
- Bluetooth 5.0 connectivity
- Safety rating: CAT III 1000V / CAT IV 600V
- IP54 protection rating
- Designed for industrial and electrical power system applications
UNI-T AC Digital Power UT219P Clamp Meter Technical Specifications
AC Current (A)
- 1000A
- Accuracy: ±(1.5% + 3)
AC Voltage (V)
- 1000V
- Accuracy: ±(0.7% + 3)
Power (Single Phase)
- 1000kW
- Accuracy: ±(1.7% + 5)
Power (3-Phase, 3-Wire)
- 1732kW
Power (3-Phase, 4-Wire)
- 3000kW
Power Frequency (Hz)
- 15Hz ~ 1000Hz
- Accuracy: ±(0.3% + 3)
Phase Angle
- -180° ~ 179.9°
- 15Hz ~ 40Hz
- Accuracy: ±5°
- 40Hz ~ 70Hz
- Accuracy: ±3°
- 70Hz ~ 1000Hz
- Accuracy: ±5°
Power Factor
- -1 ~ 1
- Accuracy: Based on Phase Angle Accuracy
Features
- Jaw Opening: 75 mm
- Phase Detection: Yes (80V ~ 1000V)
- Positive & Negative AC/DC Peak Measurement: Yes
- Harmonic Measurement: Up to 32nd Harmonic
- Display Mode: LCD Screen
- Simultaneous Display: 4 Results at the Same Time
- Display Count: 9999
- Bluetooth App: Yes
- True RMS: Yes
- Overload Indication: Yes
- High Voltage Indication: Yes
- High Voltage Overload Warning: Yes
- Low Battery Indication: Yes
- Data Hold: Yes
- Auto Power Off: Around 15 Minutes
- Max/Min Measurement: Yes
General Characteristics
- Overvoltage Category: CAT III 1000V / CAT IV 600V
- Certifications: CE, UKCA, cETLus
BRAND: UNI-T
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
Import Duties : Applicable
