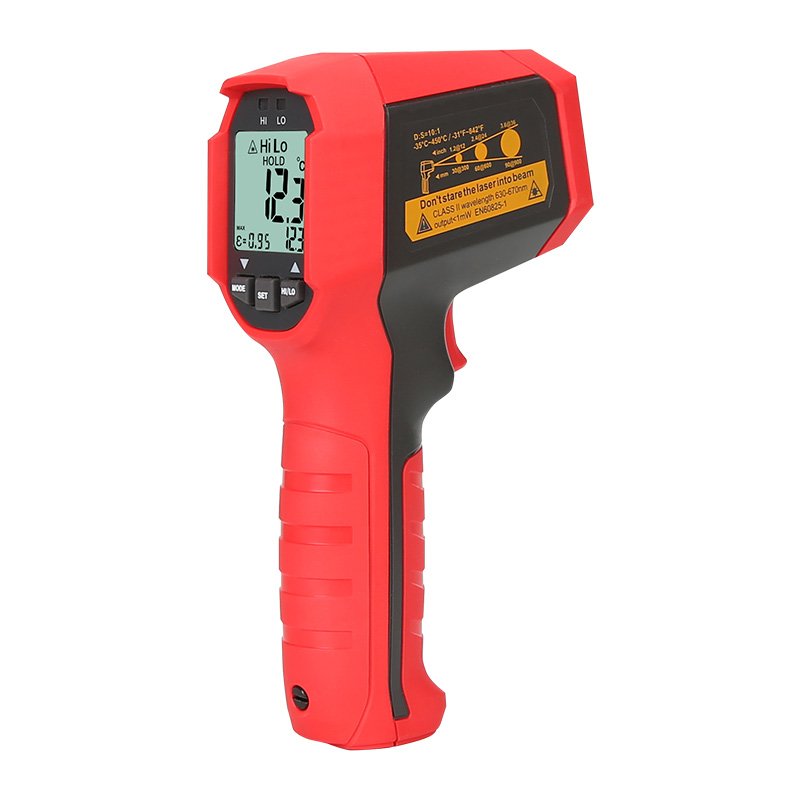

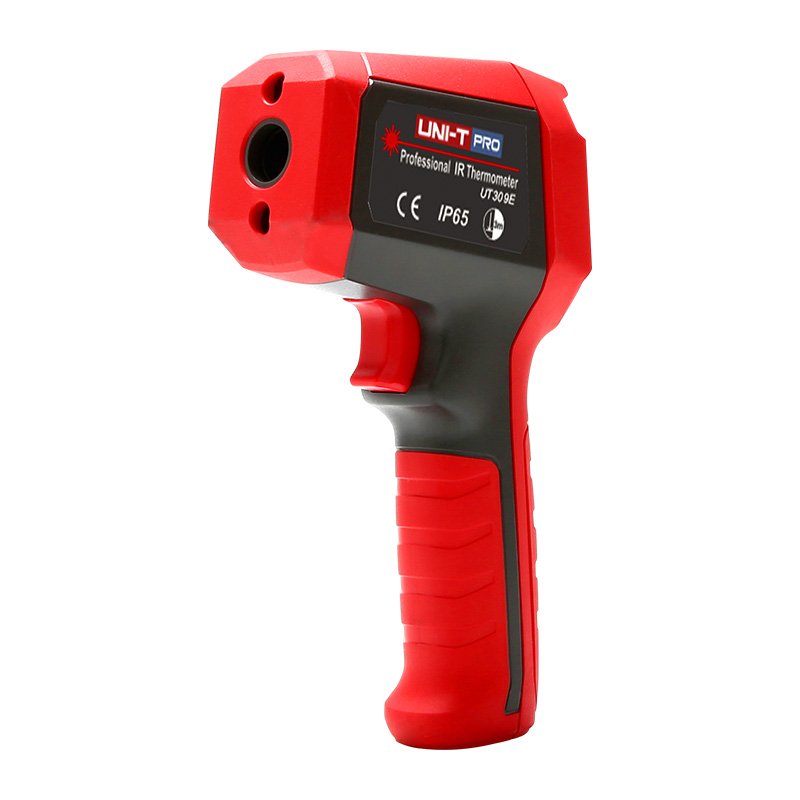

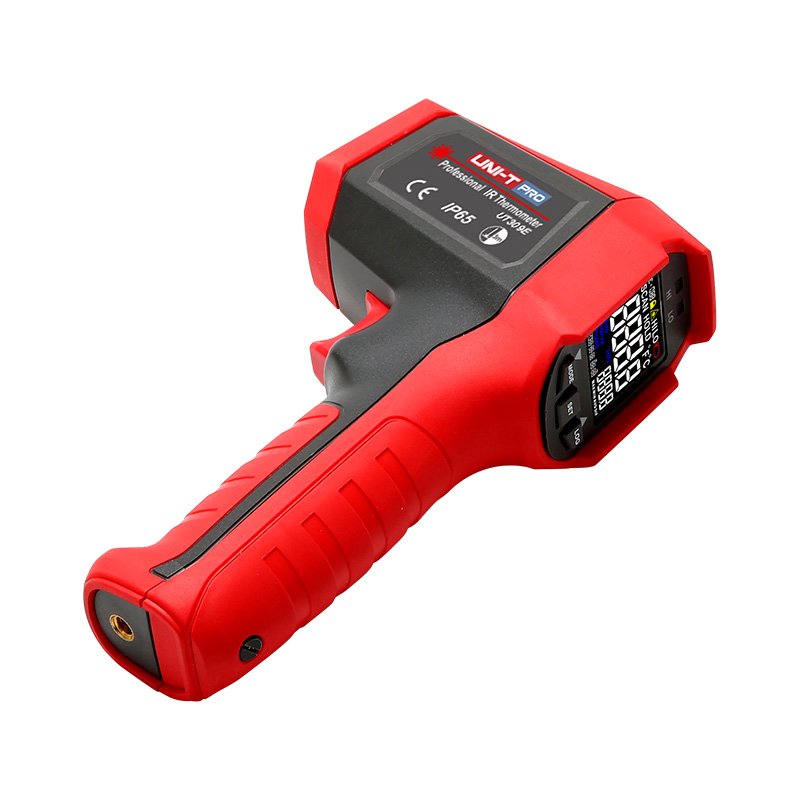

UNI-T Series UT309 Professional Infrared Thermometers

By:
Icon Image

Estimated delivery between Jun 30 to Jul 15

Pay With:
Payments Image

Description

UNI-T Series UT309 Professional Infrared Thermometers can determine surface temperature through measuring infrared energy radiated by the target surface. It is designed to meet one of the highest protection ratings in UNI-T’s product line, with IP65 and 3m drop proof. With a rapid response rate of 250ms, high measuring accuracy and multiple scanning modes, UT309 proves to be necessary tool for engineers and technicians working in avarious fields such as electrical distribution inspection, HVAC maintenance, transportation equipment inspection and instrument repair etc.

Models in UT309 Series: UT309A, UT309C, UT309E

Features of UNI-T Series UT309 Professional Infrared Thermometers

Certificates: CE, UKCA

● 3m drop proof, IP65
● Large LED display with backlight
● MAX/MIN/AVG/DIF mode
● High/Low temperature alarm with LED indication
● Lock measurement
● Data hold/auto power off

UNI-T Series UT309 Professional Infrared Thermometers Technical Specifications

Temperature Range

  • UT309A
    • -35°C to 450°C
    • -31°F to 842°F
  • UT309C
    • -35°C to 650°C
    • -31°F to 1202°F
  • UT309E
    • -35°C to 850°C
    • -31°F to 1562°F

Accuracy

  • ≥ 0°C: ±1.8°C or ±1.8%
  • < 0°C: ±(1.8°C + 0.1°C/°C)
  • ≥ 32°F: ±3.6°F or ±1.8%
  • < 32°F: ±(3.6°F + 0.1°F/°F)

Resolution

  • 0.1°C / 0.1°F

Distance-to-Spot Ratio (D:S)

  • UT309A: 10:1
  • UT309C: 12:1
  • UT309E: 20:1

Response Time

  • 250ms (95% of Reading)

Emissivity

  • UT309A: 0.95
  • UT309C: 0.1 ~ 1.0 Adjustable
  • UT309E: 0.1 ~ 1.0 Adjustable

Laser System

  • Number of Lasers:
    • UT309A: Single Laser
    • UT309C: Dual Lasers
    • UT309E: Dual Lasers
  • Laser Type: Class 2
  • Laser Power: < 1mW
  • Laser Wavelength: 630nm ~ 670nm

Spectral Response

  • 8μm ~ 14μm

Features

  • °C / °F Selection: Yes
  • Laser Switch: Yes
  • Display Hold: 8 Seconds
  • Data Hold: Yes
  • Auto Power Off: Yes
  • Low Battery Indication: Yes
  • Lock Measurement: Yes
  • MAX / MIN / AVG / DIFF Mode: Yes
  • High Alarm (Red LED): Yes
  • Low Alarm (Blue LED): Yes
  • LCD Backlight: Yes
  • Tripod Mounting Hole: Yes

General Characteristics

  • Power Supply: 9V Battery (6F22)
  • Display Size: 32 × 29 mm
  • Product Color: Red and Grey
  • Product Net Weight: 292 g
  • Product Dimensions: 189 × 118 × 55 mm

Accessories Included

  • PC Software CD
  • Carrying Bag

Packaging Information

  • Individual Packing: Gift Box, Blister, English Manual
  • (UT309A / UT309C: German, French, and Spanish Manuals Optional)
  • Standard Quantity per Carton: 10 pcs
  • Carton Dimensions: 430 × 335 × 330 mm
  • Carton Gross Weight: 6.5 kg

BRAND: UNI-T

DELIVERY: 7-15 days

WARRANTY: 12 Months

COUNTRY OF ORIGIN: China

Import Duties : Applicable
