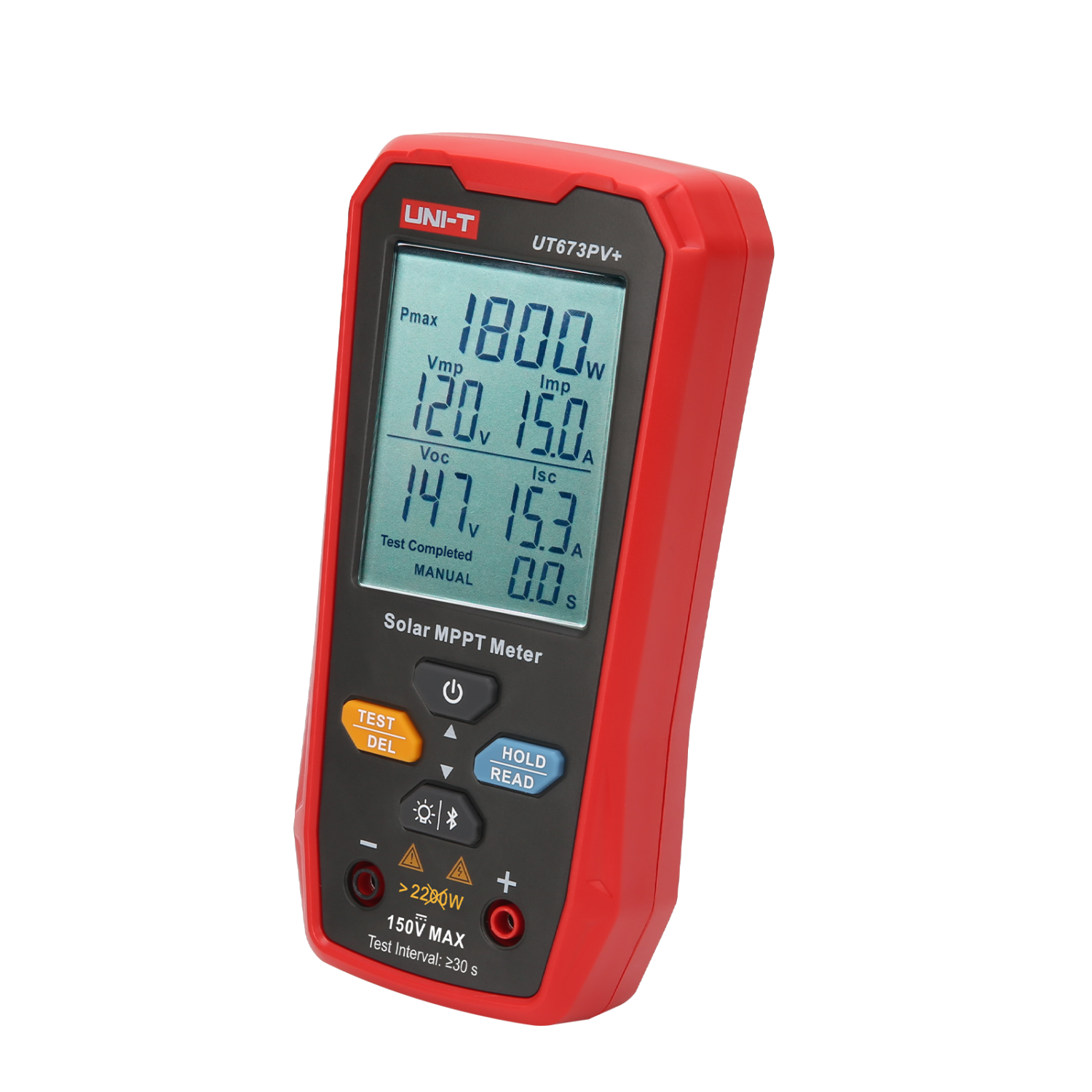

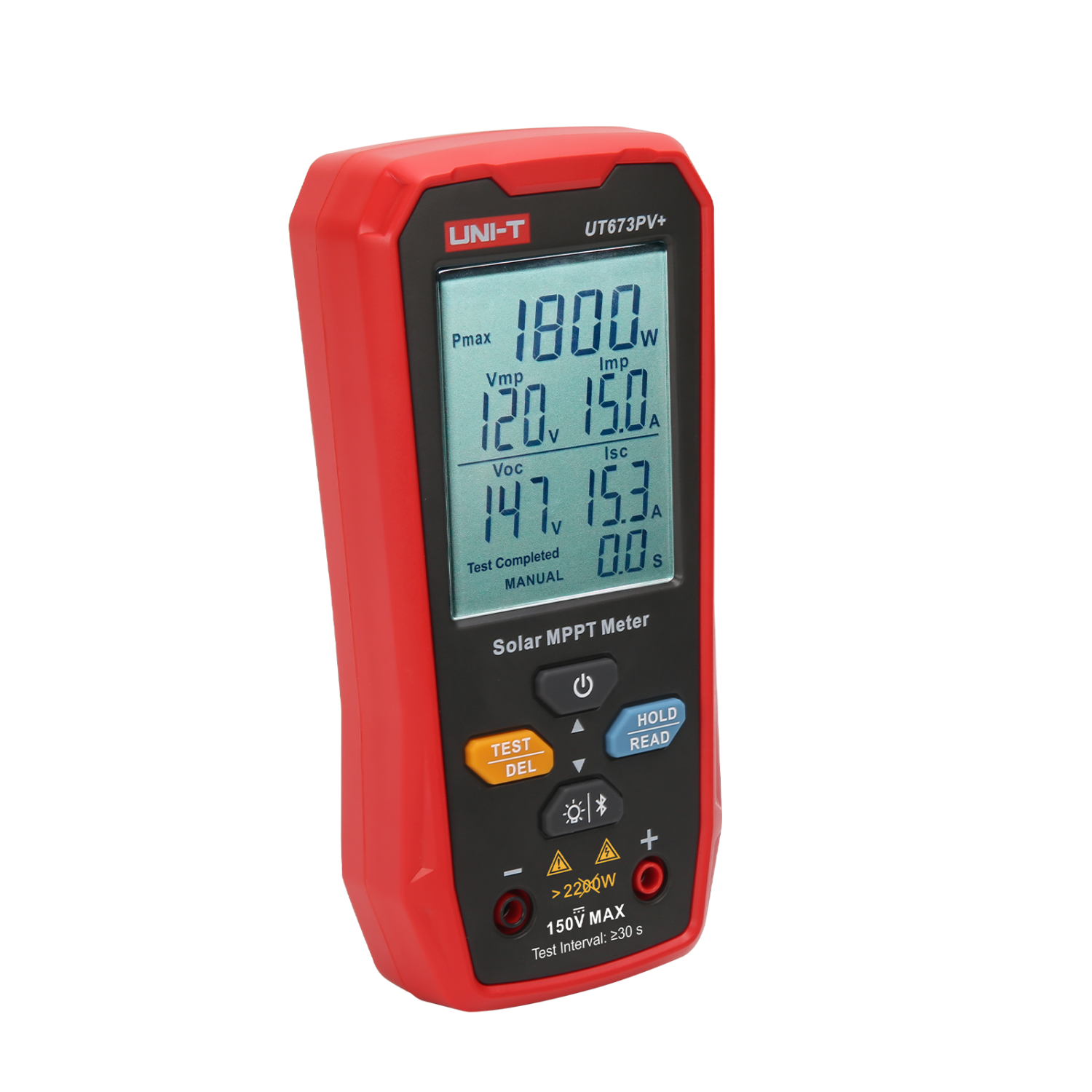

UNI-T Solar UT673PV+ MPPT Meter
Estimated delivery between Jun 30 to Jul 15
- Description
- Features
- Specifications
- Applications
- Additional Information
- Store Policies
- Inquiries
Description
The UNI-T Solar UT673PV+ MPPT Meter test solar panels for maximum power, voltage, current to find the abnormalities.
With a large screen, automatic measurement, and portable design, it enhances efficiency for photovoltaic industry professionals and users.
Features of UNI-T Solar UT673PV+ MPPT Meter
Certificates ： CE/cETLus/RoHS
Maximum power test (Pmax) 5～2200W
Peak power voltage (Vmp) 10～150V
Peak power current (Imp) 0～20A
Open circuit voltage (Voc) 10～150V
Short circuit current (Isc) 0～20A
Large screen and multiple result display
Bluetooth App
Equipped with an MC4 test lead
Power supply: 1.5V AAA *3
Portable and convenient
CAT 0 150V
UNI-T Solar UT673PV+ MPPT Meter Technical Specifications
Certificate
- UT673PV+: CE
- UT673PV: CE
Maximum Power (Pmax)
- UT673PV+: 5W ~ 2200W
- Accuracy: ±(1.0% + 10)
- UT673PV: 5W ~ 800W
- Accuracy: ±(1.0% + 10)
Maximum Power Current (Imp)
- UT673PV+: 0 ~ 20A
- Accuracy: ±(1.5% + 5)
- UT673PV: 0 ~ 35A
- Accuracy: ±(1.5% + 5)
Maximum Power Voltage (Vmp)
- UT673PV+: 10 ~ 150V
- Accuracy: ±(1.5% + 5)
- UT673PV: 10 ~ 60V
- Accuracy: ±(1.5% + 5)
Open Circuit Voltage (Voc)
- UT673PV+: 10 ~ 150V
- Accuracy: ±(1.5% + 5)
- UT673PV: 10 ~ 60V
- Accuracy: ±(1.5% + 5)
Short Circuit Current (Isc)
- UT673PV+: 0 ~ 20A
- Accuracy: ±(1.5% + 5)
- UT673PV: 0 ~ 35A
- Accuracy: ±(1.5% + 5)
Display
- Large LCD Display (52 × 66 mm)
Protection Features
- Reverse Polarity Connection Protection: Yes
- Overvoltage Protection: Yes
- Overcurrent Protection: Yes
- Over Temperature Protection: Yes
- Overpower Protection: Yes
Features
- Manual MPPT Test: Yes
- Bluetooth App:
- UT673PV+: Yes
- UT673PV: No
- Data Hold:
- UT673PV+: Yes
- UT673PV: Yes
- Data Storage:
- UT673PV+: Yes
- UT673PV: No
General Characteristics
- Power Supply:
- UT673PV+: 3 × 1.5V AAA Batteries
- UT673PV: N/A
- Category Rating:
- UT673PV+: CAT 0 150V
- UT673PV: CAT 0 60V
- Product Color:
- Red + Black
- Product Dimensions:
- UT673PV+: 169 × 81 × 46 mm
- UT673PV: 143 × 74 × 25 mm
Applications of UT673PV+ Solar MPPT Meter
i. UT673PV Series Solar MPPT Meters effectively identify abnormalities in solar panels by measuring key parameters including maximum power, peak power voltage, peak power current, open-circuit voltage, and short-circuit current.
ii. Boasting a large, clear display and automatic measurement functionality, these meters conveniently present all readings at a glance. Compact and highly portable, the series is ideal for on-site testing.
iii. Exclusive to the UT673PV+ model are enhanced features including expanded measurement ranges, built-in power measurement capability, and Bluetooth connectivity—all designed to significantly boost operation and maintenance efficiency for PV manufacturers, installers, and end users alike.
BRAND: UNI-T
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
Import Duties : Applicable
