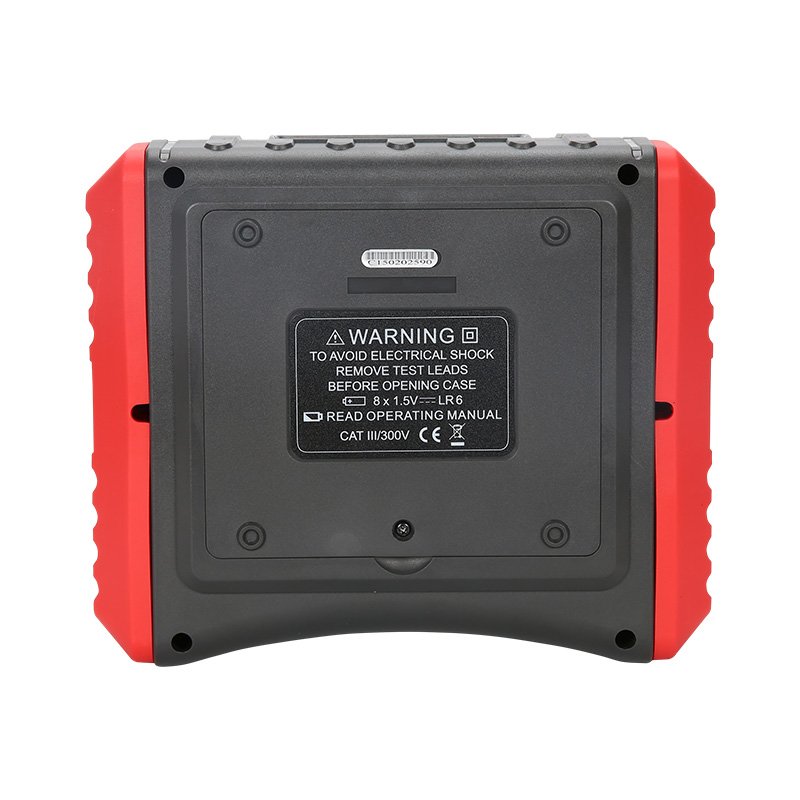

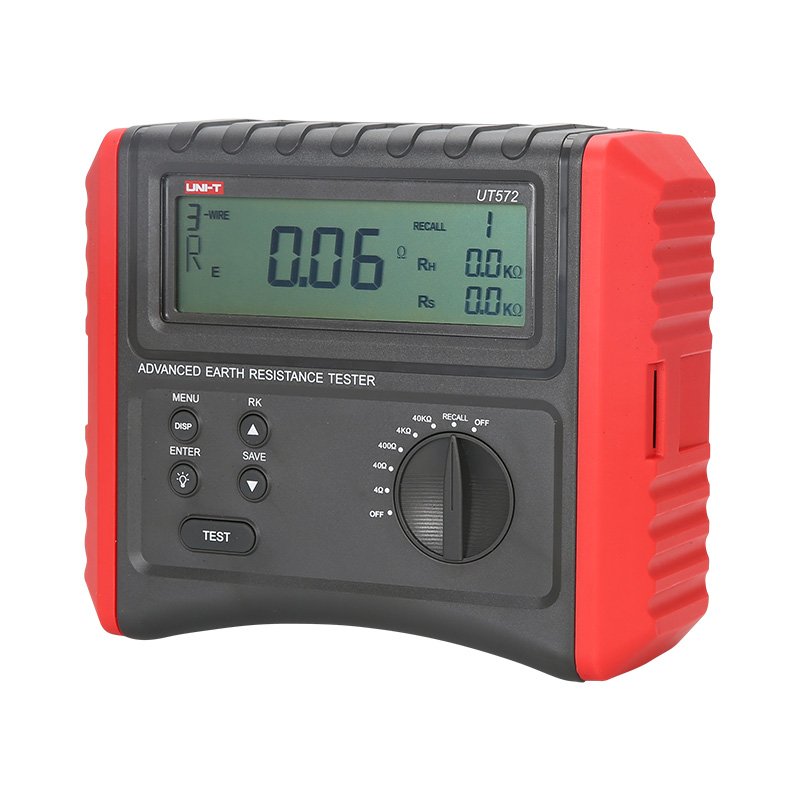

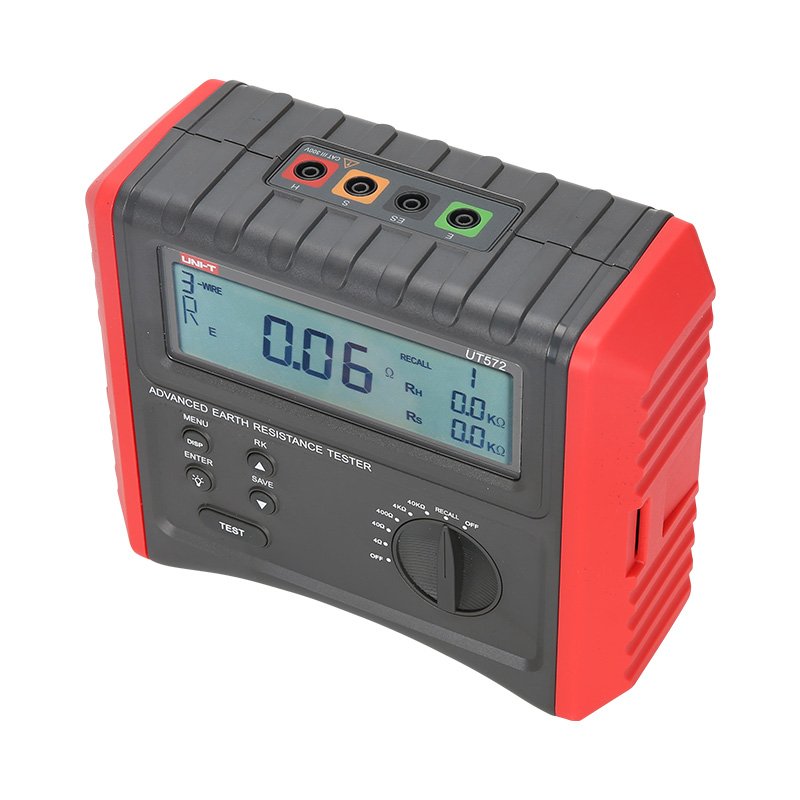

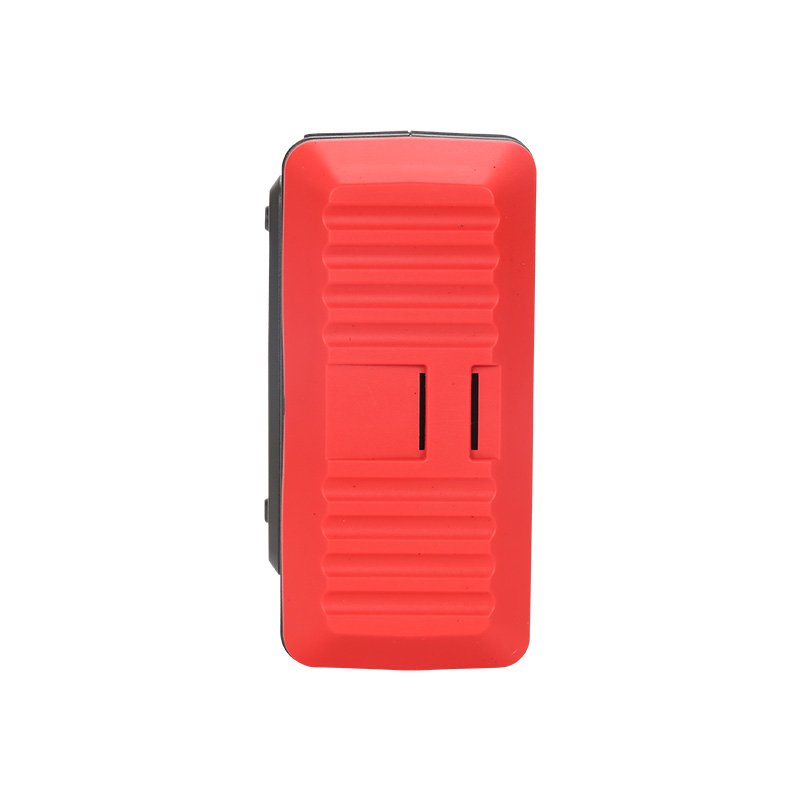

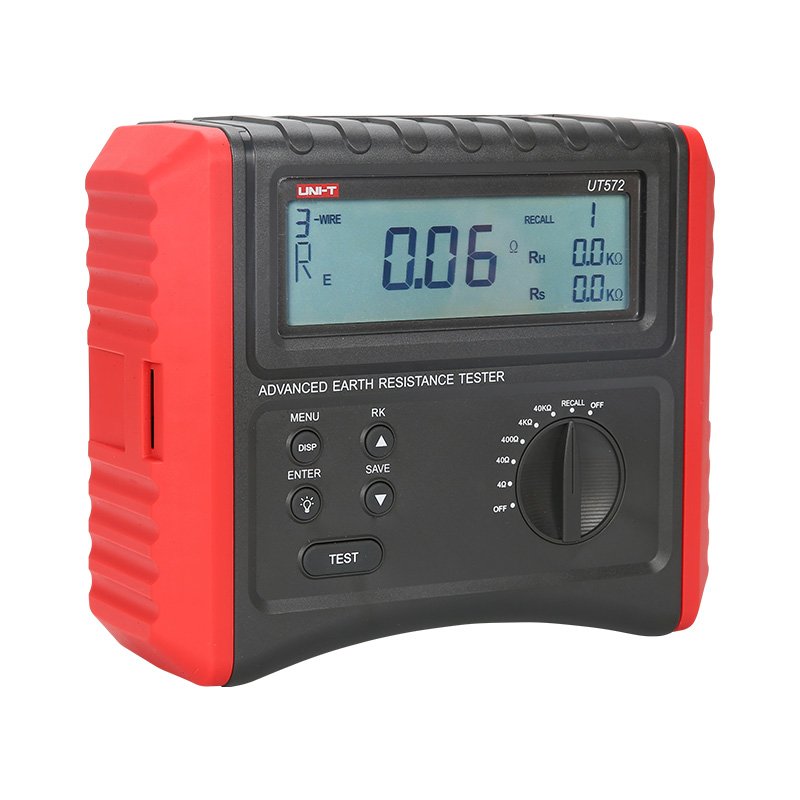

UNI-T Advanced Earth UT572 Resistance Tester
Original price was: ₹56,638.82.₹55,704.26Current price is: ₹55,704.26.
Estimated delivery between Jun 30 to Jul 15
- Description
- Features
- Specifications
- Additional Information
- Store Policies
- Inquiries
Description
UNI-T UT572 is for measuring earth resistance and soil resistivity. It can automatically check interface connection and detect interference voltage/frequency, with data hold and indication functions. It can perform 2/3/4-wire measurements for different on-site applications, such as power equipment wiring and lightning protection equipment.
Features of UNI-T Advanced Earth UT572 Resistance Tester
Certifications: CE, UKCA
● Large 4-digit LCD Display, 5s sampling time
● 2/3/4-wire earth resistance and soil resistivity measurements
● Selectable test frequencies (94Hz/128Hz)
● Disturbance voltage (Ust) and frequency (Fst) measurement
● Earth resistance, RH and RS measurements
● LCD backlight; auto power off
● Data hold
● 20 sets of data storage
● Double insulation
● Compensating resistance RK measurement
Specifications of UNI-T Advanced Earth UT572 Resistance Tester
Earth Resistance (Re)
- 4Ω
- Accuracy: ±(3%+15)
- 40Ω
- Accuracy: ±(3%+5)
- 400Ω
- 4kΩ
- 40kΩ
Soil Resistivity (ρ)
- 4Ω
- ρ = 2 × π × L × Re (Depending on the test result of Re)
- 40Ω
- ρ = 2 × π × L × Re (Depending on the test result of Re)
- 400Ω
- ρ = 2 × π × L × Re (Depending on the test result of Re)
- 4kΩ
- ρ = 2 × π × L × Re (Depending on the test result of Re)
- 40kΩ
- ρ = 2 × π × L × Re (Depending on the test result of Re)
Disturbance Voltage (Ust)
- 50V (DC Voltage / 40Hz~500Hz)
- Accuracy: ±(3%+3)
Disturbance Frequency (Fst)
- 40Hz~500Hz
- Accuracy: ±(1%+2)
Features
- 2/3/4-Wire Test: Yes
- Earth Resistance Test Frequency: 94/128Hz
- Soil Resistivity Test Distances: 1~40m
- Earth Resistance RH and RS Test: Yes
- Compensating Resistance RK Test: Yes
- Data Hold: Yes
- Data Storage: 20
- LCD Backlight: Yes
- Auto Power Off: Around 5 Minutes
- Low Battery Indication: ≤9.5V
General Characteristics
- Power Supply: 1.5V Battery (LR6) × 8
- Display Size: 125mm × 37mm
- Product Color: Red and Grey
- Product Net Weight: 1100g
- Product Size: 210mm × 175mm × 90mm
Accessories Included
- Batteries
- Simple Test Leads with Alligator Clips
- Double Plugs × 1
- Single Plug × 1
- Earth Spike × 4
- Standard Test Leads with Alligator Clips:
- 40m Red × 1
- 20m Red × 1
- 20m Black × 1
- 10m Yellow × 1
- 5m Green × 1
- Gallus
Packaging
- Standard Individual Packing:
- Gift Box
- Carrying Bag
- Tool Box
- English Manual
- Standard Quantity Per Carton: 2pcs
- Standard Carton Measurement: 475mm × 378mm × 335mm (0.064CBM per standard carton)
- Standard Carton Gross Weight: 14kg
BRAND: UNI-T
DELIVERY: 7-15 days
WARRANTY: 12 Months
COUNTRY OF ORIGIN: China
Import Duties : Applicable
